TVS06RF-25-90SA: DescriptionMIL Series Connector, 46 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size449KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

TVS06RF-25-90SA Overview

MIL Series Connector, 46 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug

TVS06RF-25-90SA Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	TRI-START, STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	MOISTURE RESISTANT
Filter function	YES
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	TVS06RF
Mixed contacts	YES
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	25
Termination type	CRIMP
Total number of contacts	46
Base Number Matches	1

Preview

Download Datasheet

View All

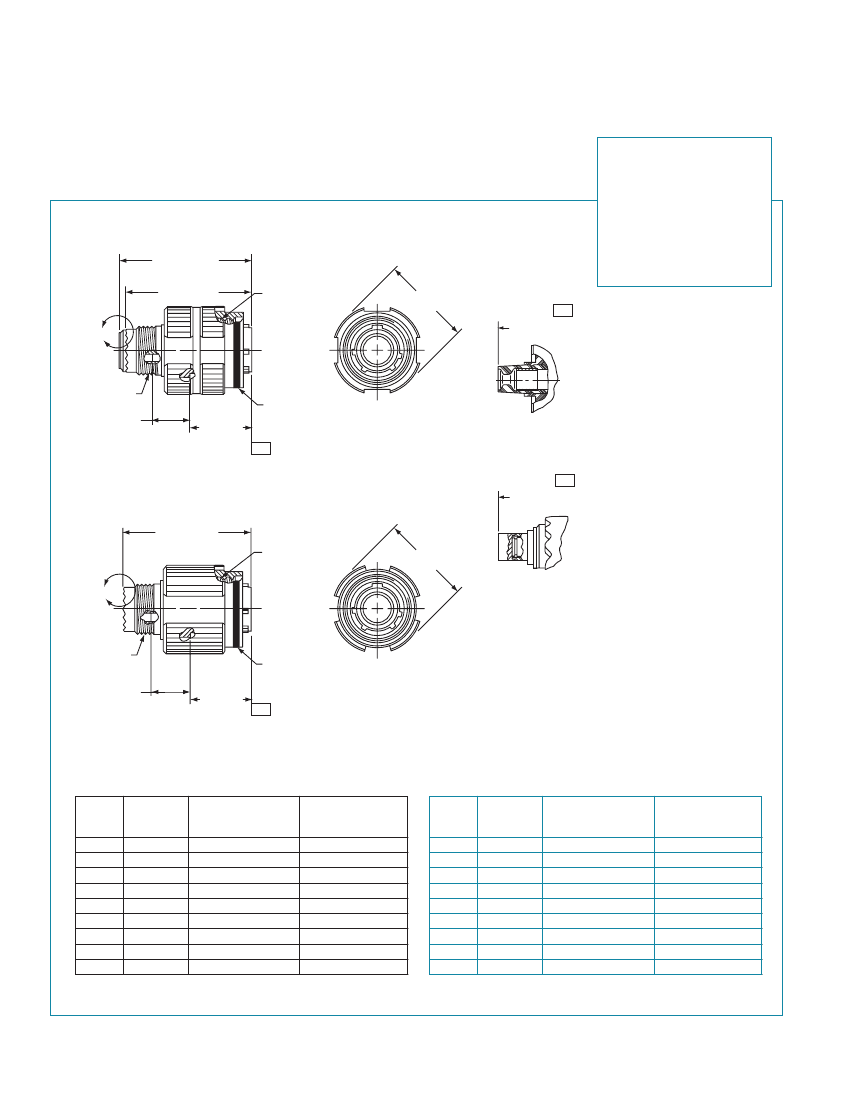

TV06R (D38999/26) –

crimp, metal

CTV06R (D38999/26) –

crimp, composite

straight plug

METAL

1.234 MAX

31.34 MAX

1.220 MAX

31.00 MAX

B THREAD

Part number reference.

See how to order, pages 43-46

to complete.

TV06RW-XX-XXX

TVS06RK-XX-XXX

TVS06RF-XX-XXX

TVS06RS-XX-XXX

CTV06RW-XX-XXX

CTVS06RF-XX-XXX

D38999/26

Q

VIEW D

FOR SIZE 8 COAXIAL ONLY,

RELATIVE TO –A–

1.656 MAX

42.06 MAX

D

V THREAD

BLUE BAND

†

.359 MAX

9.12 MAX

.591 +.003

–.000

15.01 +.08

–.00

–A–

VIEW D

FOR SIZE 8 TWINAX ONLY,

RELATIVE TO –A–

1.797 MAX

45.64 MAX

COMPOSITE

1.234 MAX

31.34 MAX

B THREAD

Q

D

V THREAD

BLUE BAND

†

.359 MAX

9.12 MAX

.591 +.003

–.000

15.01 +.08

–.00

–A–

† Blue band indicates rear release contact retention system

Inches

Shell

Size

9

11

13

15

17

19

21

23

25

MS

Shell Size

Code

A

B

C

D

E

F

G

H

J

B Thread

0.1P-0.3L-TS-2B

(Plated)

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

Q

Dia.

Max.

.858

.984

1.157

1.280

1.406

1.516

1.642

1.768

1.890

Shell

Size

9

11

13

15

17

19

21

23

25

MS

Shell Size

Code

A

B

C

D

E

F

G

H

J

Q

Max.

21.8

25.0

29.4

32.5

35.7

38.5

41.7

44.9

48.0

Millimeters

V

Thread

Metric

M12X1-6g

M15X1-6g

M18X1-6g

M22X1-6g

M25X1-6g

M28X1-6g

M31X1-6g

M34X1-6g

M37X1-6g

All dimensions for reference only.
