800-10-016-30-001: DescriptionPCB connectors 2.54 mm Single row / double row Surface mount; File Size41KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

800-10-016-30-001 Overview

PCB connectors 2.54 mm Single row / double row Surface mount

Preview

Download Datasheet

View All

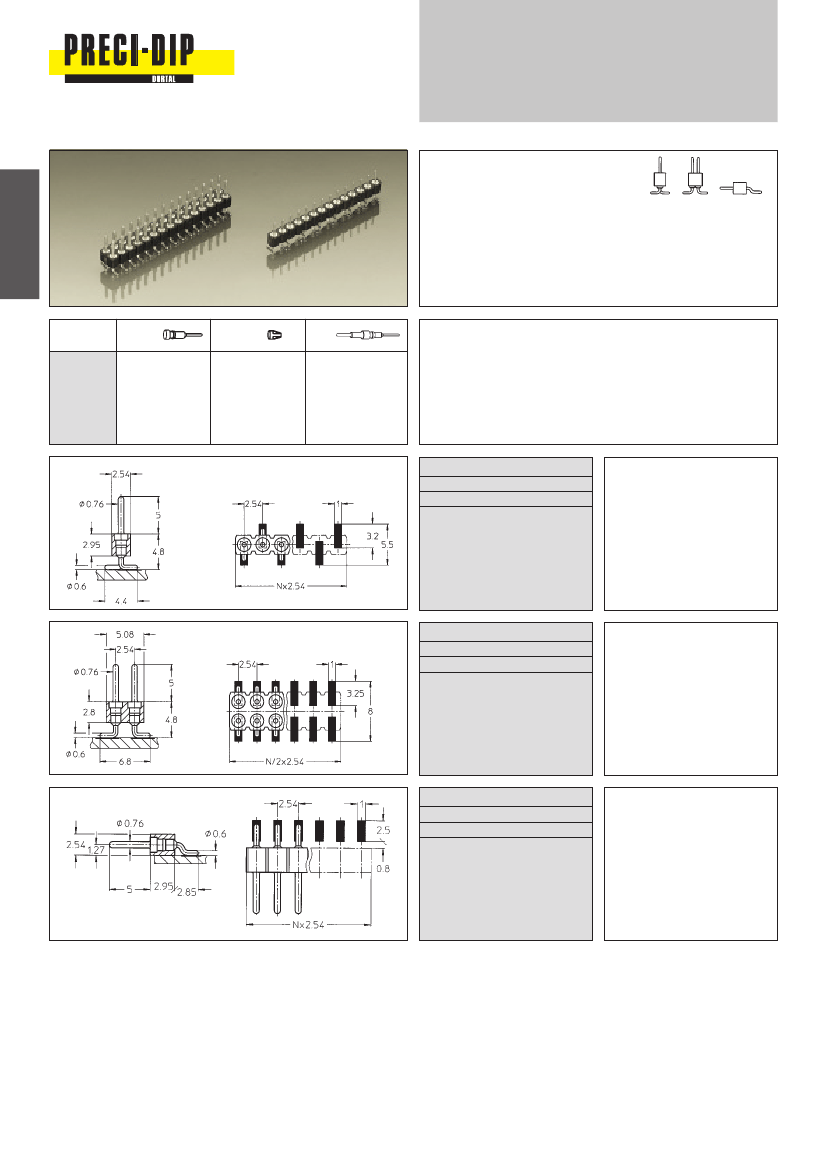

Series 800

32

PCB connectors 2.54 mm

Single row / double row

Surface mount

Pin connectors, surface mount

Screw-machined pins

∅

0.76 mm

For corresponding receptacles see

pages 22 to 29

New:

Pin connectors with selective plated precision screw machined

pin, plating code Z1.

Connecting side 1: gold plated

soldering/PCB side 2: tin plated

Ordering information

Replace

xx

with the number of poles, e.g. 802-10-0xx-30-001

for a double row version with 8 pins per row becomes:

802-10-016-30-001

Platings

10

90

Z1

Sleeve

Clip

0.25

µm

Au

5

µm

Sn Pb

1: 0.25

µm

Au

2: 5

µm

Sn Pb

800-10-0xx-30-001

800-90-0xx-30-001

800-Z1-0xx-30-001

SMD pin connector: single row,

perpendicular mount

Availability from: 3 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

802-10-0xx-30-001

802-90-0xx-30-001

802-Z1-0xx-30-001

SMD pin connector: double row,

perpendicular mount

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

800-10-0xx-40-001

800-90-0xx-40-001

800-Z1-0xx-40-001

SMD pin connector: single row,

parallel mount

Availability from: 2 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

800-10-016-30-001 Related Products

	800-10-016-30-001	800-10-016-40-001	800-90-016-30-001	800-90-016-40-001	800-Z1-016-40-001
Description	PCB connectors 2.54 mm Single row / double row Surface mount	PCB connectors 2.54 mm Single row / double row Surface mount	PCB connectors 2.54 mm Single row / double row Surface mount	PCB connectors 2.54 mm Single row / double row Surface mount	PCB connectors 2.54 mm Single row / double row Surface mount
