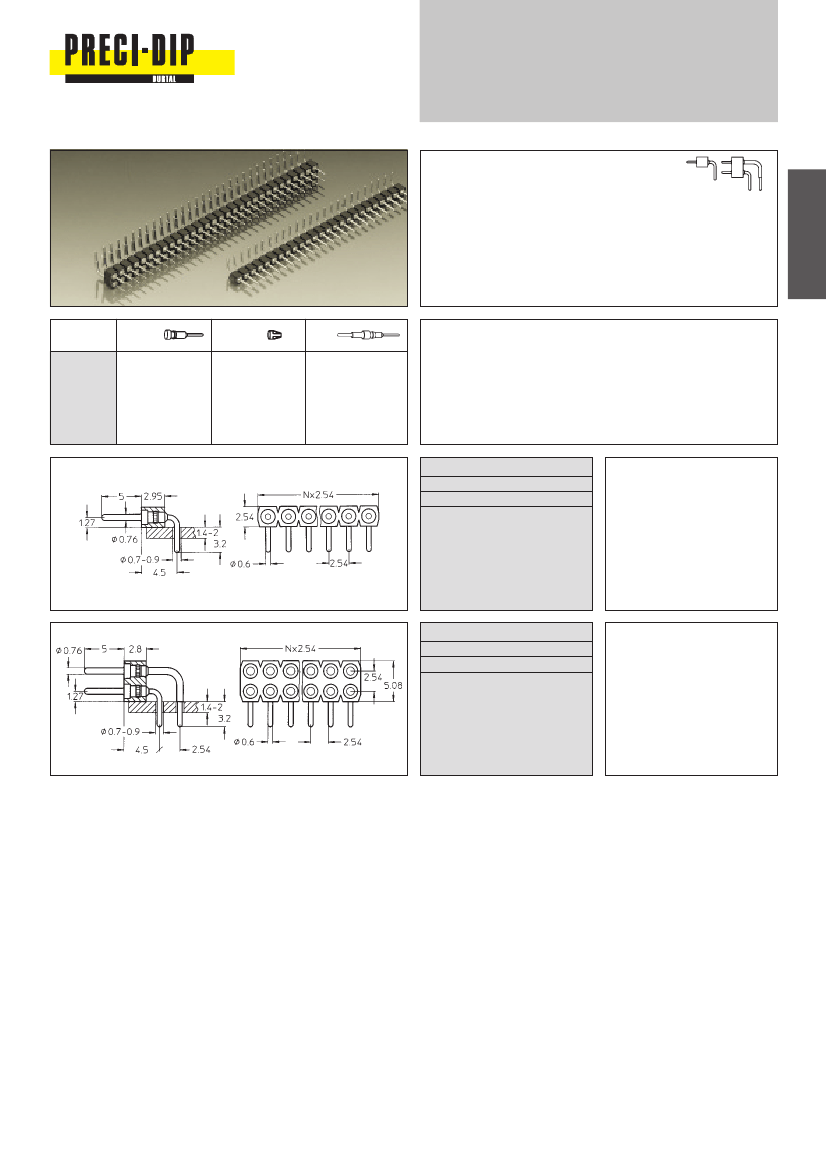

800-90-016-20-001: Description16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size46KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

800-90-016-20-001 Overview

16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

Series 800

PCB connectors 2.54 mm

Single row / double row

Solder tail

Right angle pin connectors, solder tail

Screw-machined pins

∅

0.76 mm

For corresponding receptacles see pages 22 to 29

New:

Pin connectors with selective plated precision screw machined

pin, plating code Z1.

Connecting side 1: gold plated

soldering/PCB side 2: tin plated

Platings

Sleeve

Clip

0.25

µm

Sn Pb

1: 0.25

µm

2: 5

µm

Sn Pb

Ordering information

Replace

with the number of poles, e.g. 802-10-0xx-20-001

for a double row version with 8 pins per row becomes:

802-10-016-20-001

800-10-0xx-20-001

800-90-0xx-20-001

800-Z1-0xx-20-001

Right angle pin connector: solder

tail, single row

Availability from: 1 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

802-10-0xx-20-001

802-90-0xx-20-001

802-Z1-0xx-20-001

Right angle pin connector: solder

tail, double row

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

800-90-016-20-001 Related Products

	800-90-016-20-001	800-10-016-20-001
