800-90-016-66-001 datasheet, PDF

Datasheet> All Categories > 800-90-016-66-001

Preview

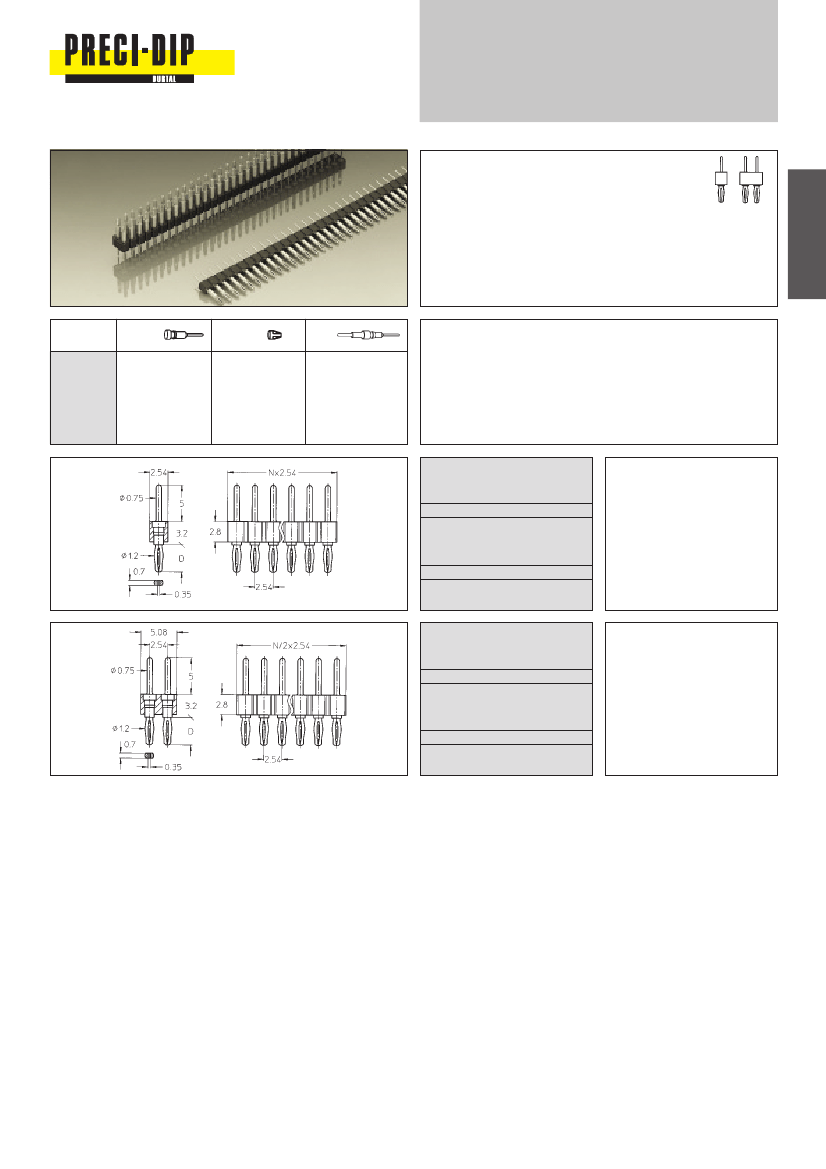

800-90-016-66-001: DescriptionPCB connectors 2.54 mm Single row / double row Press-fit; File Size46KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

800-90-016-66-001 Overview

PCB connectors 2.54 mm Single row / double row Press-fit

Preview

Download Datasheet

View All

Series 800

PCB connectors 2.54 mm

Single row / double row

Press-fit

Pin connectors, press-fit

Pin connectors with screw-machined

∅

0.76 mm

With compliant pin for solderless mount into PCB

plated-thru holes

∅

1 mm + 0.09/– 0.06 mm

For corresponding connectors see pages 22 to 29

New version with modified eye of the needle pin

Platings

Sleeve

Clip

0.25

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 802-10-xxx-65-001

for a double row version with 8 pins per row becomes:

802-10-016-65-001

(Older versions 800/802-..-...-61/62-001 please consult)

for PCB thickness 1.5 to

2.0 mm D = 2.80 mm

800-10-xxx-65-001

800-90-xxx-65-001

for PCB thickness 2.1 to

3.2 mm D = 3.80 mm

800-10-xxx-66-001

800-90-xxx-66-001

Press-fit pin connector: single

row

Availability from: 1 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

New version with modified eye of

the needle pin

for PCB thickness 1.5 to

2.0 mm D = 2.80 mm

802-10-xxx-65-001

802-90-xxx-65-001

for PCB thickness 2.1 to

3.2 mm D = 3.80 mm

802-10-xxx-66-001

802-90-xxx-66-001

Press-fit pin connector: double

row

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

New version with modified eye of

the needle pin
