AE154.95CR363 Overview

Band Pass Filter,

AE154.95CR363 Parametric

Parameter Name	Attribute value
Maker	Anatech Electronics Inc.
Reach Compliance Code	unknown
filter type	BAND PASS FILTER
Base Number Matches	1

Preview

Download Datasheet

View All

154.95 MHz Crystal Band Pass Filter

Part Number: AE154.95CR363

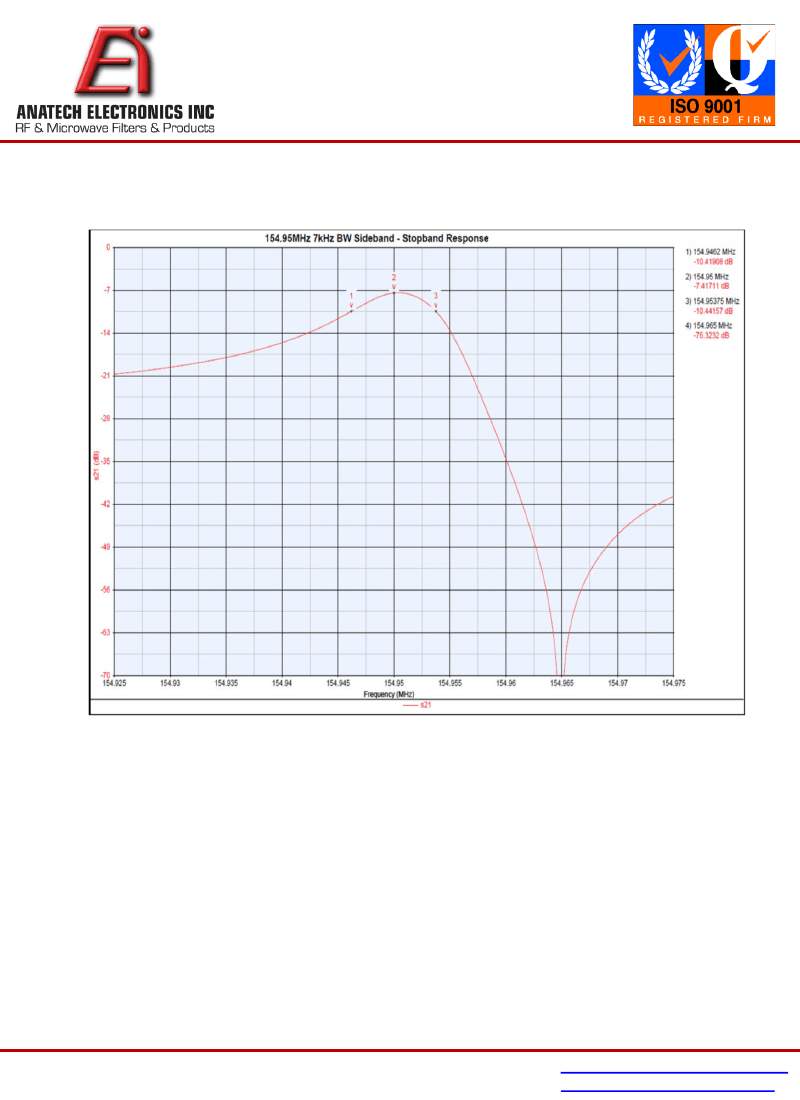

Electrical Specifications

Center Frequency:

154.95 MHz

3 dB Bandwidth:

7 KHz Min.

Insertion Loss:

10 dB Max

Rejection:

50 dB Min @ 154.965 MHz

Impedance:

50 Ohms

Mechanical

Mounting Method:

Threaded Holes

Connector Type:

N-Type(F)

Dimensions:

2.38” X 1.0” x 1.7”.

Environmental

Operating Temperature:

25°C

±

10°C

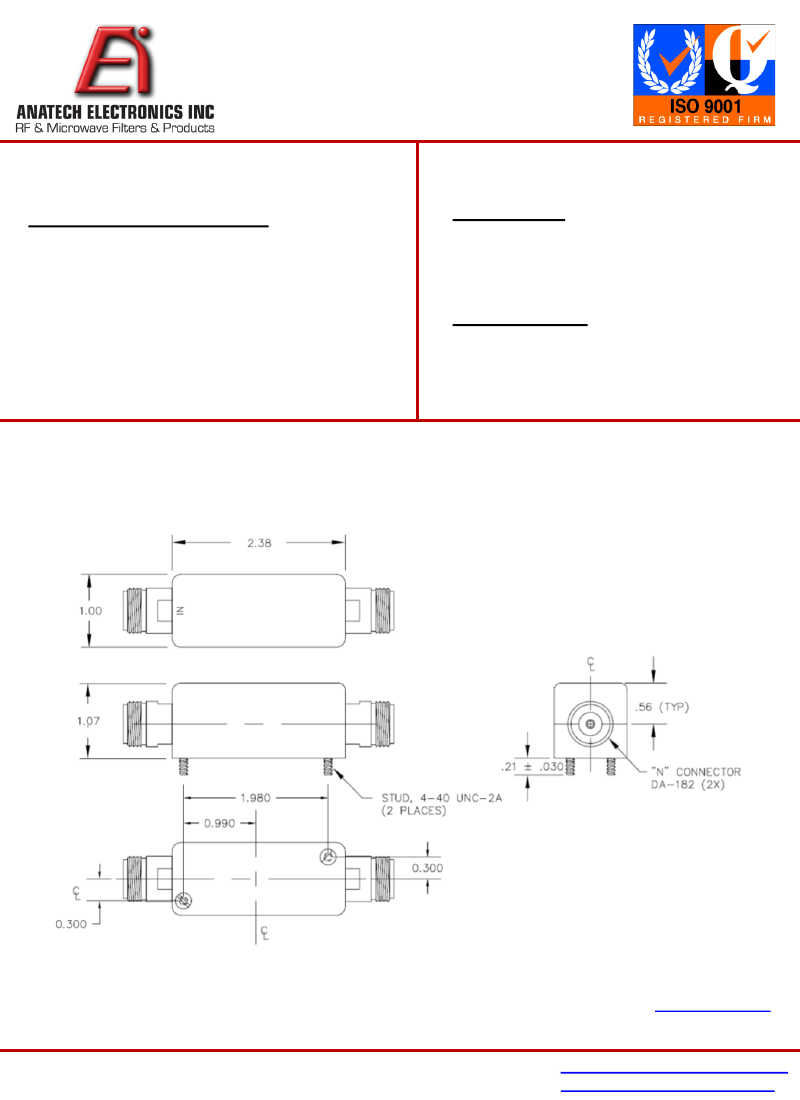

Outline Drawing:

Tolerance: +/-0.01 inches [+/- 0.3mm]

Replacement of Part Number

Angles: +/- 1 Deg.

*Tolerance as shown unless otherwise specified in the datasheet electrical specification tables above.

*When max dimensions are called out the above tolerances do not apply as long as it is under the max call out.

:

AM154.95CR279

70 Outwater Lane Phone: (973) 772-4242

Garfield, NJ 07026 Fax : (973) 321-3941

Email:

sales@anatechelectronics.com

Web:

www.anatechelectronics.com
