800FXD29 |
800EXD29 |

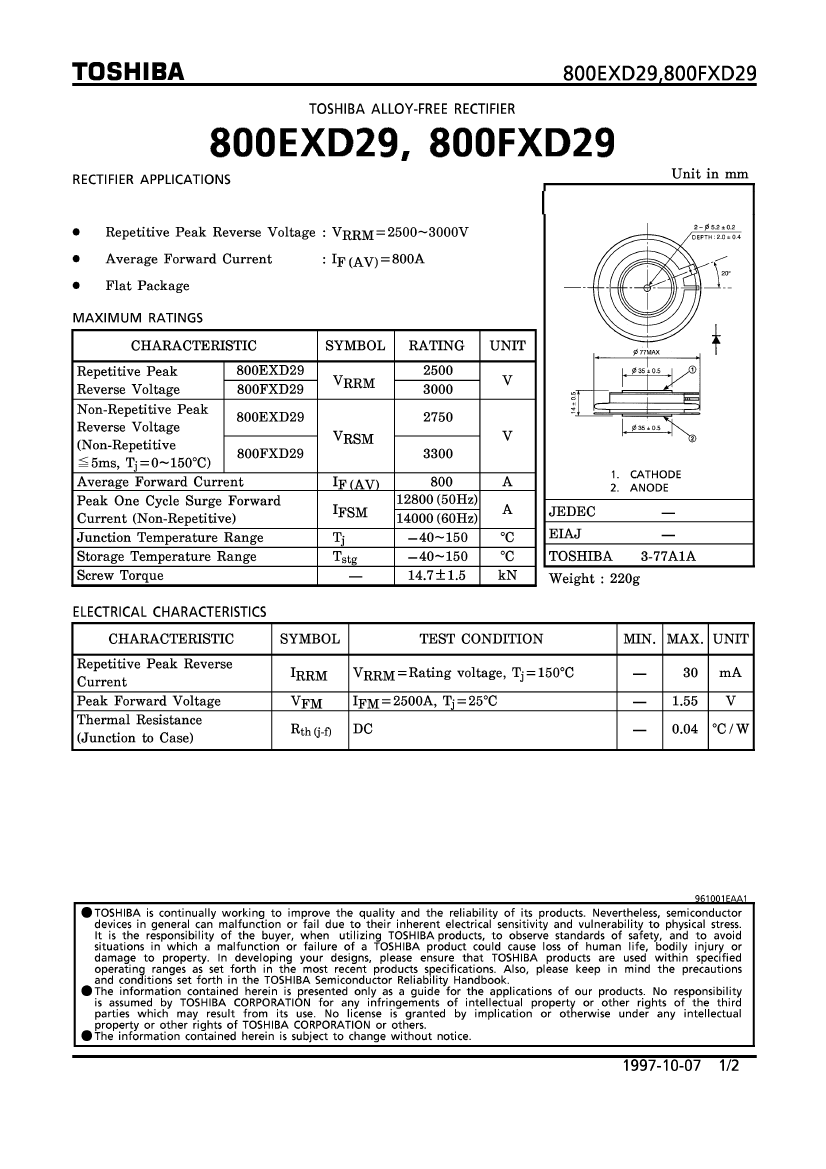

| Description |
800 A, 3000 V, SILICON, RECTIFIER DIODE |
800 A, 2500 V, SILICON, RECTIFIER DIODE |
| Is it Rohs certified? |
incompatible |
incompatible |
| Maker |
Toshiba Semiconductor |
Toshiba Semiconductor |
| package instruction |
3-77A1A, 2 PIN |
3-77A1A, 2 PIN |
| Contacts |
2 |
2 |
| Manufacturer packaging code |
3-77A1A |
3-77A1A |
| Reach Compliance Code |
unknown |
unknown |
| application |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Configuration |
SINGLE |
SINGLE |
| Diode component materials |
SILICON |
SILICON |
| Diode type |
RECTIFIER DIODE |
RECTIFIER DIODE |
| JESD-30 code |
O-XEDB-N2 |
O-XEDB-N2 |

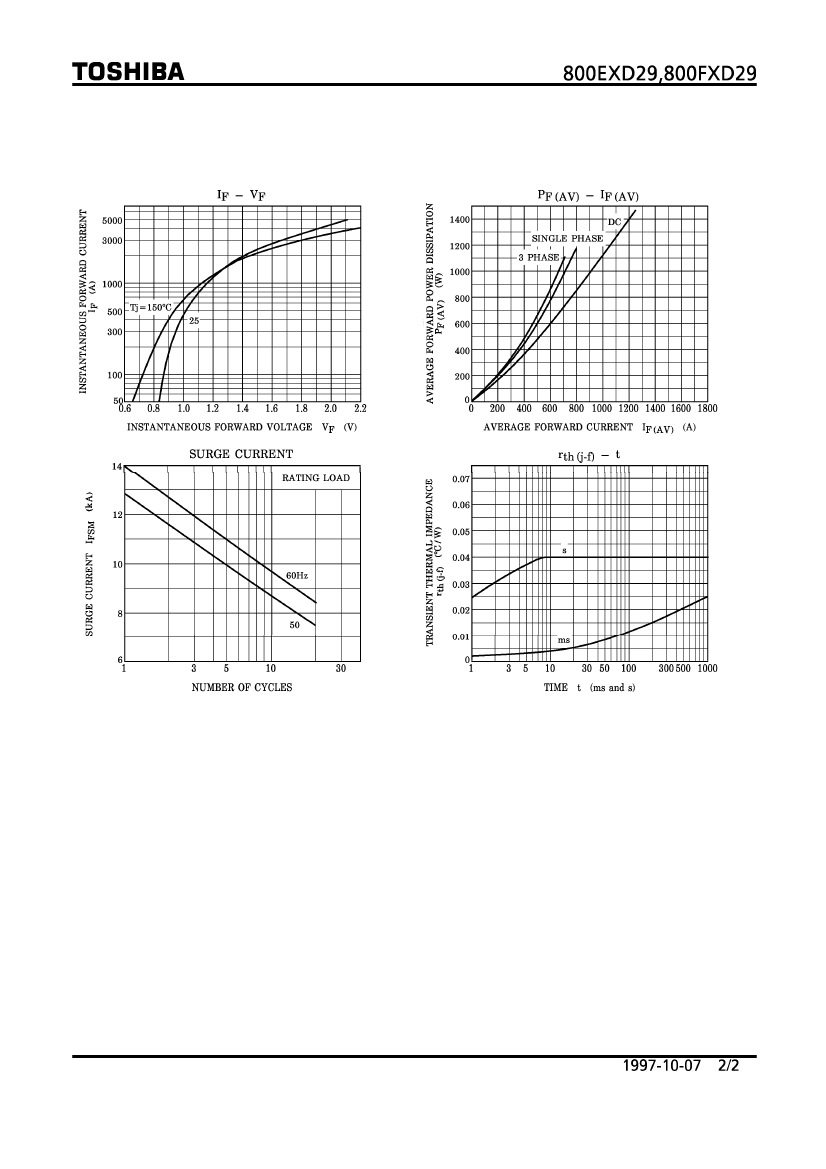

| Maximum non-repetitive peak forward current |
14000 A |
14000 A |
| Number of components |
1 |
1 |
| Phase |
1 |
1 |
| Number of terminals |
2 |
2 |
| Maximum operating temperature |
150 °C |
150 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |
| Maximum output current |
800 A |
800 A |
| Package body material |
UNSPECIFIED |
UNSPECIFIED |
| Package shape |
ROUND |
ROUND |
| Package form |
DISK BUTTON |
DISK BUTTON |
| Peak Reflow Temperature (Celsius) |
NOT SPECIFIED |
NOT SPECIFIED |
| Certification status |
Not Qualified |
Not Qualified |
| Maximum repetitive peak reverse voltage |
3000 V |
2500 V |
| surface mount |
YES |
YES |
| Terminal form |
NO LEAD |
NO LEAD |
| Terminal location |
END |
END |
| Maximum time at peak reflow temperature |
NOT SPECIFIED |
NOT SPECIFIED |
| Base Number Matches |
1 |
1 |
