B82462G2332M000 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> B82462G2332M000

B82462G2332M000: DescriptionGeneral Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size158KB，8 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82462G2332M000 Overview

General Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

B82462G2332M000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.04 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Manufacturer's serial number	B82462G2
Number of functions	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum rated current	2 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

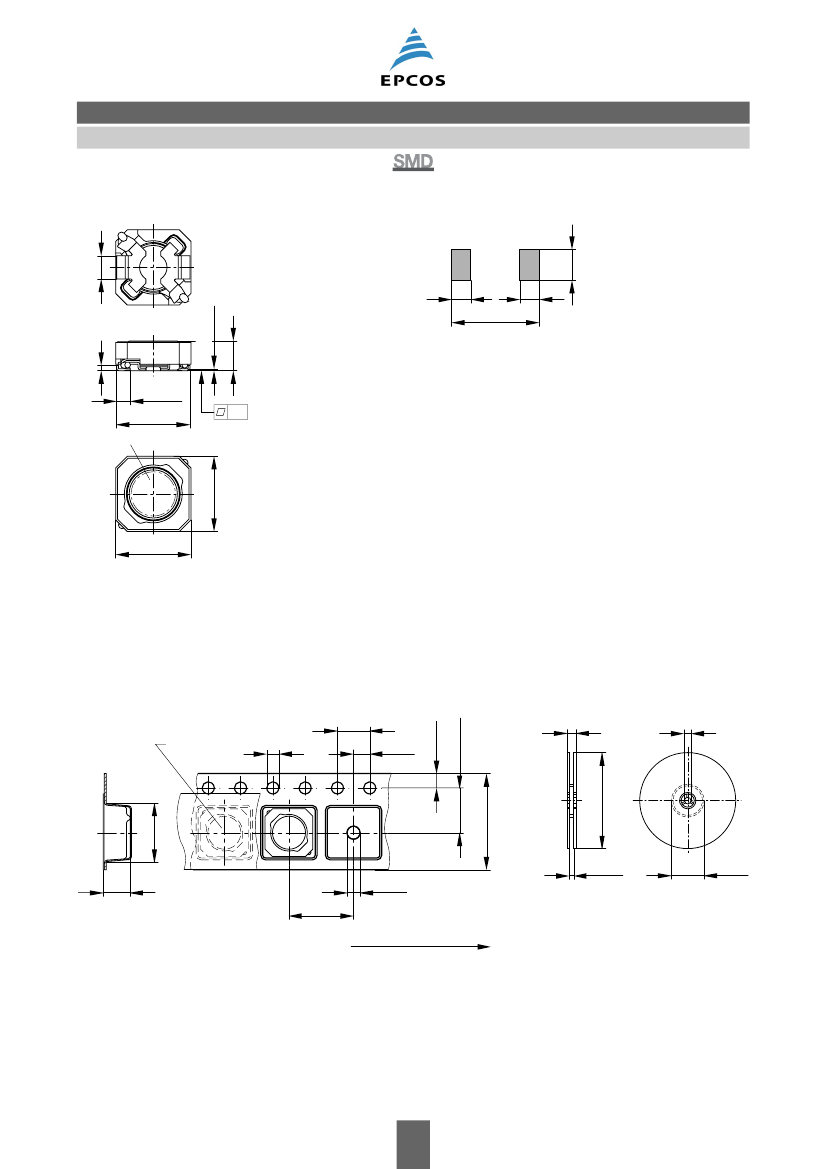

SMT power inductors

Size 6.3

6.3

2.5 (mm)

Series/Type:

Date:

B82462G2

March 2008

Data Sheet



EPCOS AG 2008. Reproduction, publication and dissemination of this publication,

enclosures

hereto

and the information contained therein without EPCOS’ prior express consent is prohibited.

B82462G2332M000 Related Products

	B82462G2332M000	B82462G2122M000	B82462G2103M000	B82462G2104M000	B82462G2334M000	B82462G2472M000	B82462G2473M000	B82462G2821M000
Description	General Purpose Inductor, 3.3uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 1.2uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 0.82uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.04 Ω	0.019 Ω	0.106 Ω	0.95 Ω	3.25 Ω	0.061 Ω	0.42 Ω	0.017 Ω
Nominal inductance(L)	3.3 µH	1.2 µH	10 µH	100 µH	330 µH	4.7 µH	47 µH	0.82 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum rated current	2 A	3.1 A	1.25 A	0.41 A	0.22 A	1.6 A	0.62 A	3.25 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Base Number Matches	1	1	1	1	1	1	1	1
Manufacturer's serial number	B82462G2	B82462G2	-	B82462G2	B82462G2	B82462G2	B82462G2	B82462G2
