MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MC145481/D

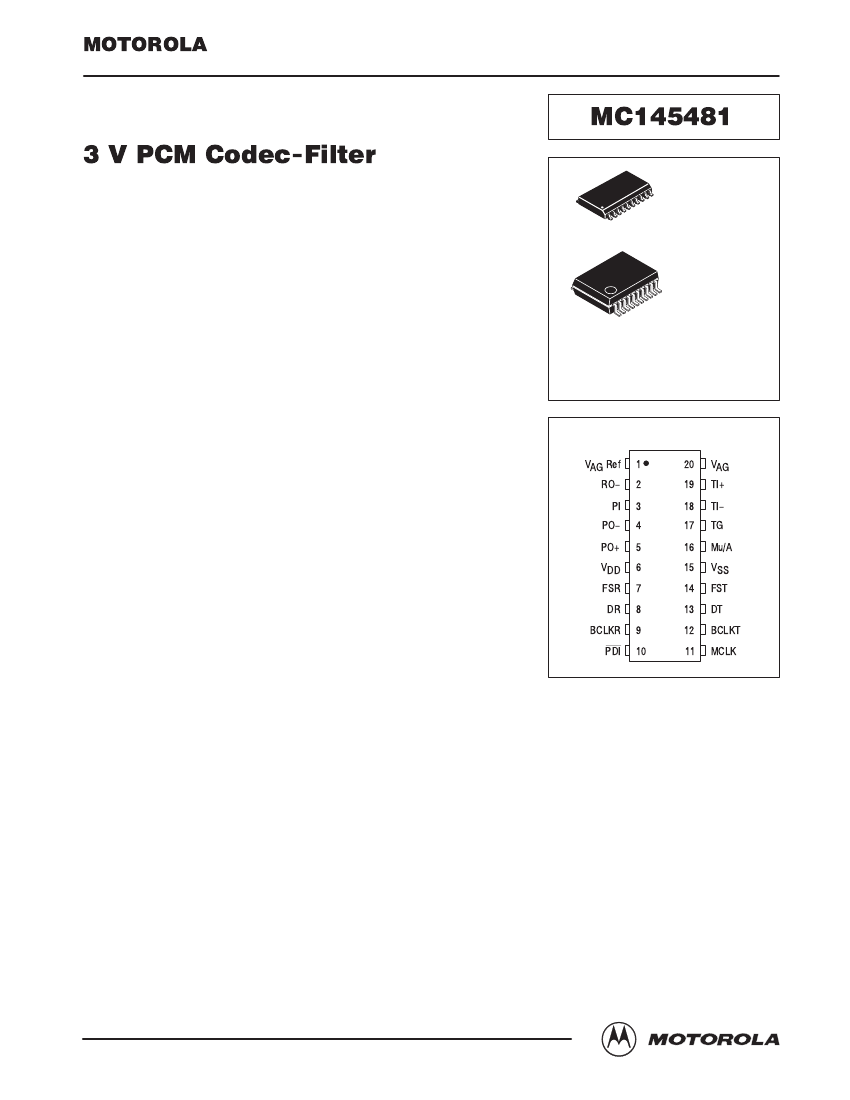

MC145481
3 V PCM Codec-Filter
The MC145481 is a general purpose per channel PCM Codec–Filter with pin
selectable Mu–Law or A–Law companding, and is offered in 20–pin SOG and
SSOP packages. This device performs the voice digitization and reconstruction
as well as the band limiting and smoothing required for PCM systems. This
device is designed to operate in both synchronous and asynchronous
applications and contains an on–chip precision reference voltage.
This device has an input operational amplifier whose output is the input to the
encoder section. The encoder section immediately low–pass filters the analog
signal with an active R–C filter to eliminate very high frequency noise from being
modulated down to the passband by the switched capacitor filter. From the
active R–C filter, the analog signal is converted to a differential signal. From this
point, all analog signal processing is done differentially. This allows processing
of an analog signal that is twice the amplitude allowed by a single–ended
design, which reduces the significance of noise to both the inverted and
non–inverted signal paths. Another advantage of this differential design is that
noise injected via the power supplies is a common–mode signal that is
cancelled when the inverted and non–inverted signals are recombined. This
dramatically improves the power supply rejection ratio.
After the differential converter, a differential switched capacitor filter band–
passes the analog signal from 200 Hz to 3400 Hz before the signal is digitized
by the differential compressing A/D converter.
The decoder accepts PCM data and expands it using a differential D/A
converter. The output of the D/A is low–pass filtered at 3400 Hz and sinX/X
compensated by a differential switched capacitor filter. The signal is then filtered
by an active R–C filter to eliminate the out–of–band energy of the switched
capacitor filter.
The MC145481 PCM Codec–Filter has a high impedance VAG reference pin
which allows for decoupling of the internal circuitry that generates the
mid–supply VAG reference voltage to the VSS power supply ground. This
reduces clock noise on the analog circuitry when external analog signals are
referenced to the power supply ground.
The MC145481 PCM Codec–Filter accepts a variety of clock formats,
including Short Frame Sync, Long Frame Sync, IDL, and GCI timing
environments. This device also maintains compatibility with Motorola’s family of
Telecommunication products, including the MC14LC5472 and MC145572
U–Interface Transceivers, MC145474/75 and MC145574 S/T–Interface Trans-
c e i v e r s , M C 1 4 5 5 3 2 A D P C M Tr a n s c o d e r, M C 1 4 5 4 2 2 / 2 6 U D LT – 1 ,
MC145421/25 UDLT–2, and MC3419/MC33120 SLICs.
The MC145481 PCM Codec–Filter utilizes CMOS due to its reliable
low–power performance and proven capability for complex analog/digital VLSI
functions.
•
•
•
•
•
•
•
Single 2.7 to 5.25 V Power Supply
Typical Power Dissipation of 8 mW @ 3 V, Power–Down of 0.01 mW
Fully–Differential Analog Circuit Design for Lowest Noise
Transmit Band–Pass and Receive Low–Pass Filters On–Chip
Active R–C Pre–Filtering and Post–Filtering
Mu–Law and A–Law Companding by Pin Selection
On–Chip Precision Reference Voltage of 0.886 V for a – 5 dBm TLP
@ 600
Ω
•
Push–Pull 300
Ω
Power Drivers with External Gain Adjust
This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.
20
1
DW SUFFIX
SOG PACKAGE
CASE 751D
20
1
SD SUFFIX
SSOP
CASE 940C
ORDERING INFORMATION
MC145481DW
MC145481SD
SOG Package
SSOP
PIN ASSIGNMENT
VAG Ref
RO-
PI
PO-
PO+
VDD
FSR
DR
BCLKR
PDI
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VAG
TI+
TI-
TG
Mu/A
VSS
FST
DT
BCLKT
MCLK
REV 2
11/98
TN98111300
©
Motorola, Inc. 1998
MOTOROLA
MC145481
1
RECEIVE
SHIFT
RO -
DAC
FREQ
PI
REGISTER
DR
PO -
-
+
FSR
BCLKR
SHARED
DAC
Mu/A
PO +
VDD
VSS
VAG Ref
VAG
1
R*
VSS
TG
TI -
TI +
-
+
FREQ
FST
-1
SEQUENCE
VDD
R*
0.886 V
REF
BCLKT
AND
CONTROL
MCLK
PDI
ADC
TRANSMIT
SHIFT
REGISTER
DT
Figure 1. MC145481 3 V PCM Codec–Filter Block Diagram
DEVICE DESCRIPTION
A PCM Codec–Filter is used for digitizing and reconstruct-
ing the human voice. These devices are used primarily for
the telephone network to facilitate voice switching and trans-
mission. Once the voice is digitized, it may be switched by
digital switching methods or transmitted long distance (T1,
microwave, satellites, etc.) without degradation. The name
codec is an acronym from ‘‘COder’’ for the analog–to–digital
converter (ADC) used to digitize voice, and ‘‘DECoder’’ for
the digital–to–analog converter (DAC) used for reconstruct-
ing voice. A codec is a single device that does both the ADC
and DAC conversions.
To digitize intelligible voice requires a signal–to–distortion
ratio of about 30 dB over a dynamic range of about 40 dB.
This may be accomplished with a linear 13–bit ADC and
DAC, but will far exceed the required signal–to–distortion
ratio at larger amplitudes than 40 dB below the peak ampli-
tude. This excess performance is at the expense of data per
sample. Two methods of data reduction are implemented by
compressing the 13–bit linear scheme to companded
pseudo–logarithmic 8–bit schemes. The two companding
schemes are: Mu–255 Law, primarily in North America and
Japan; and A–Law, primarily used in Europe. These com-
panding schemes are accepted world wide. These compand-
ing schemes follow a segmented or ‘‘piecewise–linear’’ curve
formatted as sign bit, three chord bits, and four step bits. For
a given chord, all sixteen of the steps have the same voltage
weighting. As the voltage of the analog input increases, the
four step bits increment and carry to the three chord bits
which increment. When the chord bits increment, the step
bits double their voltage weighting. This results in an effec-
tive resolution of six bits (sign + chord + four step bits) across
a 42 dB dynamic range (seven chords above 0, by 6 dB per
chord).
In a sampling environment, Nyquist theory says that to
properly sample a continuous signal, it must be sampled at a
frequency higher than twice the signal’s highest frequency
component. Voice contains spectral energy above 3 kHz, but
its absence is not detrimental to intelligibility. To reduce the
digital data rate, which is proportional to the sampling rate, a
sample rate of 8 kHz was adopted, consistent with a band-
width of 3 kHz. This sampling requires a low–pass filter to
limit the high frequency energy above 3 kHz from distorting
the in–band signal. The telephone line is also subject to
50/60 Hz power line coupling, which must be attenuated
from the signal by a high–pass filter before the analog–to–
digital converter.
The digital–to–analog conversion process reconstructs a
staircase version of the desired in–band signal, which has
spectral images of the in–band signal modulated about the
sample frequency and its harmonics. These spectral images
are called aliasing components, which need to be attenuated
to obtain the desired signal. The low–pass filter used to at-
tenuate these aliasing components is typically called a re-
construction or smoothing filter.
The MC145481 PCM Codec–Filter has the codec, both
presampling and reconstruction filters, and a precision volt-
age reference on–chip.
MC145481
2
MOTOROLA
PIN DESCRIPTIONS
POWER SUPPLY
VDD
Positive Power Supply (Pin 6)
This is the most positive power supply and is typically con-
nected to + 3 V. This pin should be decoupled to VSS with a
0.1
µF
ceramic capacitor.
VSS
Negative Power Supply (Pin 15)
This is the most negative power supply and is typically
connected to 0 V.
VAG
Analog Ground Output (Pin 20)
This output pin provides a mid–supply analog ground. This
pin should be decoupled to VSS with a 0.01
µF
ceramic ca-
pacitor. All analog signal processing within this device is ref-
erenced to this pin. If the audio signals to be processed are
referenced to V SS, then special precautions must be utilized
to avoid noise between V SS and the VAG pin. Refer to the ap-
plications information in this document for more information.
The VAG pin becomes high impedance when this device is in
the powered–down mode.
VAG Ref
Analog Ground Reference Bypass (Pin 1)
This pin is used to capacitively bypass the on–chip circuit-
ry that generates the mid–supply voltage for the VAG output
pin. This pin should be bypassed to VSS with a 0.1
µF
ceram-
ic capacitor using short, low inductance traces. The VAG Ref
pin is only used for generating the reference voltage for the
VAG pin. Nothing is to be connected to this pin in addition to
the bypass capacitor. All analog signal processing within this
device is referenced to the VAG pin. If the audio signals to be
processed are referenced to VSS, then special precautions
must be utilized to avoid noise between VSS and the VAG pin.
Refer to the applications information in this document for
more information. When this device is in the powered–down
mode, the VAG Ref pin is pulled to the VDD power supply with
a non–linear, high–impedance circuit.
CONTROL
Mu/A
Mu/A Law Select (Pin 16)
This pin controls the compression for the encoder and the
expansion for the decoder. Mu–Law companding is selected
when this pin is connected to VDD and A–Law companding is
selected when this pin is connected to VSS.
PDI
Power–Down Input (Pin 10)
This pin puts the device into a low power dissipation mode
when a logic 0 is applied. When this device is powered down,
all of the clocks are gated off and all bias currents are turned
off, which causes RO–, PO–, PO+, TG, VAG, and DT to be-
come high impedance and the VAG Ref pin is pulled to the
VDD power supply with a non–linear, high–impedance circuit.
The device will operate normally when a logic 1 is applied to
this pin. The device goes through a power–up sequence
when this pin is taken to a logic 1 state, which prevents the
DT PCM output from going low impedance for at least two
FST cycles. The VAG and VAG Ref circuits and the signal pro-
cessing filters must settle out before the DT PCM output or
the RO– receive analog output will represent a valid analog
signal.
ANALOG INTERFACE
TI+
Transmit Analog Input (Non–Inverting) (Pin 19)
This is the non–inverting input of the transmit input gain
setting operational amplifier. This pin accommodates a differ-
ential to single–ended circuit for the input gain setting op
amp. This allows input signals that are referenced to the V SS
pin to be level shifted to the VAG pin with minimum noise.
This pin may be connected to the VAG pin for an inverting
amplifier configuration if the input signal is already refer-
enced to the VAG pin. The common mode range of the TI+
and TI– pins is from 1.2 V, to VDD minus 1.2 V. This is an FET
gate input.
The TI+ pin also serves as a digital input control for the
transmit input multiplexer. Connecting the TI+ pin to VDD will
place this amplifier’s output (TG) into a high–impedance
state, and selects the TG pin to serve as a high–impedance
input to the transmit filter. Connecting the TI+ pin to VSS will
also place this amplifier’s output (TG) into a high–impedance
state, and selects the TI– pin to serve as a high–impedance
input to the transmit filter.
TI–
Transmit Analog Input (Inverting) (Pin 18)
This is the inverting input of the transmit gain setting op-
erational amplifier. Gain setting resistors are usually con-
nected from this pin to TG and from this pin to the analog
signal source. The common mode range of the TI+ and TI–
pins is from 1.2 V to VDD – 1.2 V. This is an FET gate input.
The TI– pin also serves as one of the transmit input multi-
plexer pins when the TI+ pin is connected to VSS. When TI+
is connected to VDD, this pin is ignored. See the pin descrip-
tions for the TI+ and the TG pins for more information.
TG
Transmit Gain (Pin 17)
This is the output of the transmit gain setting operational
amplifier and the input to the transmit band–pass filter. This
op amp is capable of driving a 2 kΩ load. Connecting the TI+
pin to VDD will place the TG pin into a high–impedance state,
and selects the TG pin to serve as a high–impedance input to
the transmit filter. All signals at this pin are referenced to the
VAG pin. When TI+ is connected to VSS, this pin is ignored.
See the pin descriptions for the TI+ and TI– pins for more in-
formation. This pin is high impedance when the device is in
the powered–down mode.
MOTOROLA
MC145481
3
RO–
Receive Analog Output (Inverting) (Pin 2)
This is the inverting output of the receive smoothing filter
from the digital–to–analog converter. This output is capable
of driving a 2 kΩ load to 0.886 V peak referenced to the VAG
pin. If the device is operated half–channel with the FST pin
clocking and FSR pin held low, the receive filter input will be
conencted to the VAG voltage. This minimizes transients at
the RO– pin when full–channel operation is resumed by
clocking the FSR pin. This pin is high impedance when the
device is in the powered–down mode.
PI
Power Amplifier Input (Pin 3)
This is the inverting input to the PO– amplifier. The non–
inverting input to the PO– amplifier is internally tied to the
VAG pin. The PI and PO– pins are used with external resis-
tors in an inverting op amp gain circuit to set the gain of the
PO+ and PO– push–pull power amplifier outputs. Connect-
ing PI to VDD will power down the power driver amplifiers and
the PO+ and PO– outputs will be high impedance.
PO–
Power Amplifier Output (Inverting) (Pin 4)
This is the inverting power amplifier output, which is used
to provide a feedback signal to the PI pin to set the gain of
the push–pull power amplifier outputs. This pin is capable of
driving a 300
Ω
load to PO+. The PO+ and PO– outputs are
differential (push–pull) and capable of driving a 300
Ω
load to
1.772 V peak, which is 3.544 V peak–to–peak. The bias volt-
age and signal reference of this output is the VAG pin. The
VAG pin cannot source or sink as much current as this pin,
and therefore low impedance loads must be between PO+
and PO–. The PO+ and PO– differential drivers are also ca-
pable of driving a 100
Ω
resistive load or a 100 nF Piezoelec-
tric transducer in series with a 20
Ω
resister with a small
increase in distortion. These drivers may be used to drive re-
sistive loads of
≥
32
Ω
when the gain of PO– is set to 1/4 or
less. Connecting PI to VDD will power down the power driver
amplifiers and the PO+ and PO– outputs will be high imped-
ance. This pin is also high impedance when the device is
powered down by the PDI pin.
PO+
Power Amplifier Output (Non–Inverting) (Pin 5)
This is the non–inverting power amplifier output, which is
an inverted version of the signal at PO–. This pin is capable
of driving a 300
Ω
load to PO–. Connecting PI to VDD will
power down the power driver amplifiers and the PO+ and
PO– outputs will be high impedance. This pin is also high im-
pedance when the device is powered down by the PDI pin.
See PI and PO– for more information.
DIGITAL INTERFACE
MCLK
Master Clock (Pin 11)
This is the master clock input pin. The clock signal applied
to this pin is used to generate the internal 256 kHz clock and
sequencing signals for the switched–capacitor filters, ADC,
and DAC. The internal prescaler logic compares the clock on
this pin to the clock at FST (8 kHz) and will automatically
accept 256, 512, 1536, 1544, 2048, 2560, or 4096 kHz. For
MCLK frequencies of 256 and 512 kHz, MCLK must be syn-
chronous and approximately rising edge aligned to FST. For
optimum performance at frequencies of 1.536 MHz and
higher, MCLK should be synchronous and approximately ris-
ing edge aligned to the rising edge of FST. In many ap-
plications, MCLK may be tied to the BCLKT pin.
FST
Frame Sync, Transmit (Pin 14)
This pin accepts an 8 kHz clock that synchronizes the out-
put of the serial PCM data at the DT pin. This input is com-
patible with various standards including IDL, Long Frame
Sync, Short Frame Sync, and GCI formats. If both FST and
FSR are held low for several 8 kHz frames, the device will
power down.
BCLKT
Bit Clock, Transmit (Pin 12)
This pin controls the transfer rate of transmit PCM data. In
the IDL and GCI modes it also controls the transfer rate of
the receive PCM data. This pin can accept any bit clock fre-
quency from 64 to 4096 kHz for Long Frame Sync and Short
Frame Sync timing. This pin can accept clock frequencies
from 256 kHz to 4.096 MHz in IDL mode, and from 512 kHz
to 6.176 MHz for GCI timing mode.
DT
Data, Transmit (Pin 13)
This pin is controlled by FST and BCLKT and is high im-
pedance except when outputting PCM data. When operating
in the IDL or GCI mode, data is output in either the B1 or B2
channel as selected by FSR. This pin is high impedance
when the device is in the powered down mode.
FSR
Frame Sync, Receive (Pin 7)
When used in the Long Frame Sync or Short Frame Sync
mode, this pin accepts an 8 kHz clock, which synchronizes
the input of the serial PCM data at the DR pin. FSR can be
asynchronous to FST in the Long Frame Sync or Short
Frame Sync modes. When an ISDN mode (IDL or GCI) has
been selected with BCLKR, this pin selects either B1 (logic 0)
or B2 (logic 1) as the active data channel.
BCLKR
Bit Clock, Receive (Pin 9)
When used in the Long Frame Sync or Short Frame Sync
mode, this pin accepts any bit clock frequency from 64 to
4096 kHz. When this pin is held at a logic 1, FST, BCLKT, DT,
and DR become IDL Interface compatible. When this pin is
held at a logic 0, FST, BCLKT, DT, and DR become GCI Inter-
face compatible.
DR
Data, Receive (Pin 8)
This pin is the PCM data input, and when in a Long Frame
Sync or Short Frame Sync mode is controlled by FSR and
BCLKR. When in the IDL or GCI mode, this data transfer is
controlled by FST and BCLKT. FSR and BCLKR select the
B channel and ISDN mode, respectively.
MC145481
4
MOTOROLA
FUNCTIONAL DESCRIPTION
ANALOG INTERFACE AND SIGNAL PATH
The transmit portion of this device includes a low–noise,
three–terminal op amp capable of driving a 2 kΩ load. This
op amp has inputs of TI+ (Pin 19) and TI– (Pin 18) and its
output is TG (Pin 17). This op amp is intended to be confi-
gured in an inverting gain circuit. The analog signal may be
applied directly to the TG pin if this transmit op amp is inde-
pendently powered down by connecting the TI+ input to the
VDD power supply. The TG pin becomes high impedance
when the transmit op amp is powered down. The TG pin is
internally connected to a 3–pole anti–aliasing pre–filter. This
pre–filter incorporates a 2–pole Butterworth active low–pass
filter, followed by a single passive pole. This pre–filter is fol-
lowed by a single–ended to differential converter that is
clocked at 512 kHz. All subsequent analog processing uti-
lizes fully–differential circuitry. The next section is a fully–dif-
ferential, 5–pole switched–capacitor low–pass filter with a
3.4 kHz frequency cutoff. After this filter is a 3–pole
switched–capacitor high–pass filter having a cutoff fre-
quency of about 200 Hz. This high–pass stage has a trans-
mission zero at dc that eliminates any dc coming from the
analog input or from accumulated op amp offsets in the pre-
ceding filter stages. The last stage of the high–pass filter is
an autozeroed sample and hold amplifier.
One bandgap voltage reference generator and digital–to–
analog converter (DAC) are shared by the transmit and re-
ceive sections. The autozeroed, switched–capacitor
bandgap reference generates precise positive and negative
reference voltages that are virtually independent of tempera-
ture and power supply voltage. A binary–weighted capacitor
array (CDAC) forms the chords of the companding structure,
while a resistor string (RDAC) implements the linear steps
within each chord. The encode process uses the DAC, the
voltage reference, and a frame–by–frame autozeroed
comparator to implement a successive–approximation con-
version algorithm. All of the analog circuitry involved in the
data conversion (the voltage reference, RDAC, CDAC, and
comparator) are implemented with a differential architecture.
The receive section includes the DAC described above, a
sample and hold amplifier, a 5–pole, 3400 Hz switched ca-
pacitor low–pass filter with sinX/X correction, and a 2–pole
active smoothing filter to reduce the spectral components of
the switched capacitor filter. The output of the smoothing fil-
ter is buffered by an amplifier, which is output at the RO– pin.
This output is capable of driving a 2 kΩ load to the VAG pin.
The MC145481 also has a pair of power amplifiers that are
connected in a push–pull configuration. The PI pin is the in-
verting input to the PO– power amplifier. The non–inverting
input is internally tied to the VAG pin. This allows this amplifier
to be used in an inverting gain circuit with two external resis-
tors. The PO+ amplifier has a gain of minus one, and is in-
ternally connected to the PO– output. This complete power
amplifier circuit is a differential (push–pull) amplifier with ad-
justable gain that is capable of driving a 300
Ω
load to
+7 dBm. The power amplifier may be powered down inde-
pendently of the rest of the chip by connecting the PI pin to
VDD.
POWER–DOWN
There are two methods of putting this device into a low
power consumption mode, which makes the device nonfunc-
tional and consumes virtually no power. PDI is the power–
down input pin which, when taken low, powers down the
device. Another way to power the device down is to hold both
the FST and FSR pins low while the BCLKT and MCLK pins
are clocked. When the chip is powered down, the VAG, TG,
RO–, PO+, PO–, and DT outputs are high impedance and
the VAG Ref pin is pulled to the VDD power supply with a non–
linear, high–impedance circuit. To return the chip to the pow-
er–up state, PDI must be high and the FST frame sync pulse
must be present while the BCLKT and MCLK pins are
clocked. The DT output will remain in a high–impedance
state for at least two 8 kHz FST pulses after power–up.
MASTER CLOCK
Since this codec–filter design has a single DAC architec-
ture, the MCLK pin is used as the master clock for all analog
signal processing including analog–to–digital conversion,
digital–to–analog conversion, and for transmit and receive fil-
tering functions of this device. The clock frequency applied to
the MCLK pin may be 256 kHz, 512 kHz, 1.536 MHz,
1.544 MHz, 2.048 MHz, 2.56 MHz, or 4.096 MHz. This de-
vice has a prescaler that automatically determines the proper
divide ratio to use for the MCLK input, which achieves the re-
quired 256 kHz internal sequencing clock. The clocking re-
quirements of the MCLK input are independent of the PCM
data transfer mode (i.e., Long Frame Sync, Short Frame
Sync, IDL mode, or GCI mode).
DIGITAL I/O
The MC145481 is pin selectable for Mu–Law or A–Law.
Table 1 shows the 8–bit data word format for positive and
negative zero and full scale for both companding schemes.
Table 2 shows the series of eight PCM words for both Mu–
Law and A–Law that correspond to a digital milliwatt. The
digital mW is the 1 kHz calibration signal reconstructed by
the DAC that defines the absolute gain or 0 dBm0 Transmis-
sion Level Point (TLP) of the DAC. The timing for the PCM
data transfer is independent of the companding scheme se-
lected. Refer to Figure 2 for a summary and comparison of
the four PCM data interface modes of this device.
MOTOROLA
MC145481
5
stm32/stm8
京公网安备 11010802033920号
EEWORLD
