D25S82C4PA00: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25S82C4PA00 Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug

D25S82C4PA00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.538 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	5.004 N
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	D25S82C4PA00
Plug contact pitch	0.109 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	25
Evacuation force-minimum value	.3058 N
Base Number Matches	1

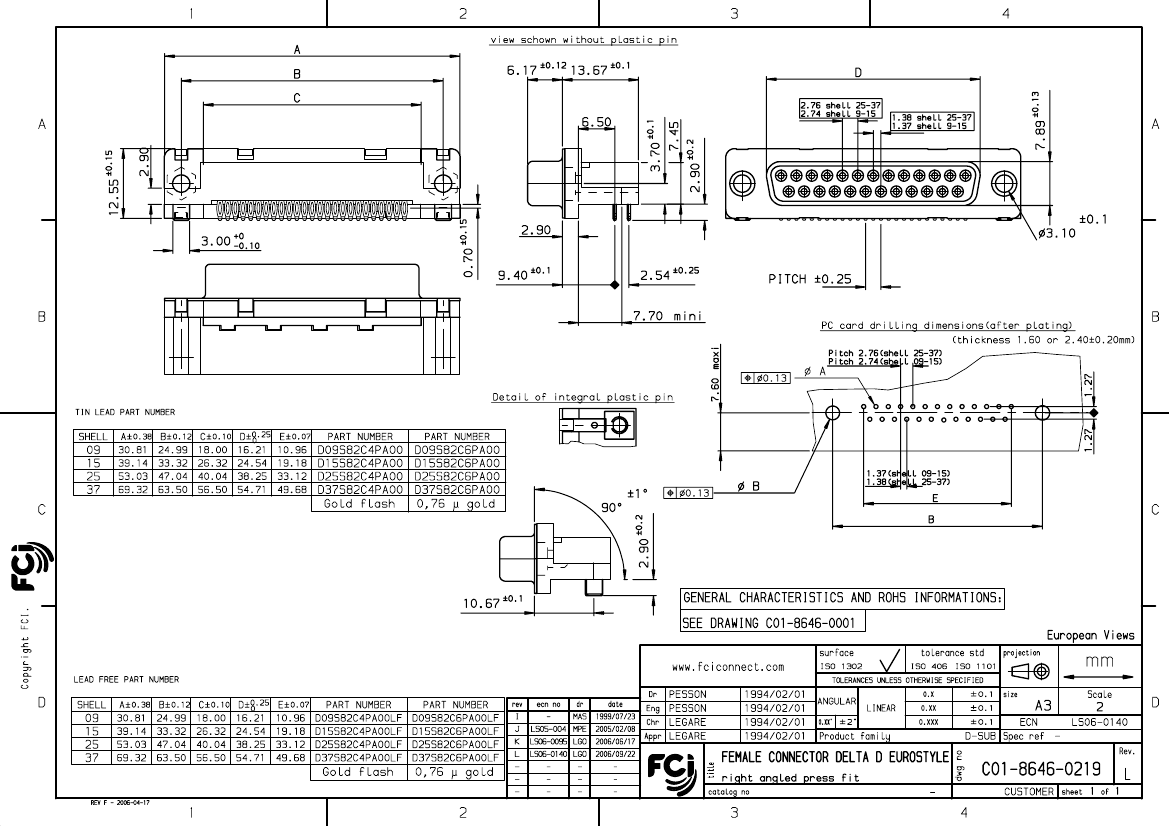

Preview

Download Datasheet

View All

PDM: Rev:L

STATUS:

Released

Printed: Jan 18, 2011

D25S82C4PA00 Related Products

	D25S82C4PA00	D09S82C4PA00LF	D09S82C4PA00	D25S82C4PA00LF	D09S82C6PA00	D15S82C4PA00LF	D15S82C6PA00	D37S82C4PA00	D37S82C4PA00LF	D37S82C6PA00LF
Description	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.538 inch	0.538 inch	0.538 inch	0.538 inch	0.538 inch	0.538 inch	0.538 inch	0.538 inch	0.538 inch	0.538 inch
body length	2.088 inch	1.213 inch	1.213 inch	2.088 inch	1.213 inch	1.541 inch	1.541 inch	2.729 inch	2.729 inch	2.729 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	5.004 N	5.004 N	5.004 N	5.004 N	5.004 N	5.004 N	5.004 N	5.004 N	5.004 N	5.004 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.109 inch	0.108 inch	0.108 inch	0.109 inch	0.108 inch	0.108 inch	0.108 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	30u inch	FLASH inch	30u inch	FLASH inch	FLASH inch	30u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	1/E	3/B	1/E	2/A	2/A	4/C	4/C	4/C
Terminal length	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch
Terminal pitch	2.7686 mm	2.7432 mm	2.7432 mm	2.7686 mm	2.7432 mm	2.7432 mm	2.7432 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	25	9	9	25	9	15	15	37	37	37
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	D25S82C4PA00	D09S82C4PA00LF	D09S82C4PA00	D25S82C4PA00LF	-	D15S82C4PA00LF	-	D37S82C4PA00	D37S82C4PA00LF	D37S82C6PA00LF
