2M805-003-07M12-26SA-501 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2M805-003-07M12-26SA-501

2M805-003-07M12-26SA-501: DescriptionCircular Connector, 26 Contact(s), Aluminum Alloy, Female, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size208KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

2M805-003-07M12-26SA-501 Overview

Circular Connector, 26 Contact(s), Aluminum Alloy, Female, Receptacle, ROHS COMPLIANT

2M805-003-07M12-26SA-501 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8067782373
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.89
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Number of contacts	26
Contact size	23
Coupling type	THREADED
DIN compliance	NO
rotation	150
empty shell	NO
Environmental characteristics	CORROSION RESISTANT/ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE AND PANEL
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
polarization	A
Shell surface	ELECTROLESS NICKEL
Shell material	ALUMINIUM ALLOY
Housing size	12
Termination type	CRIMP
Total number of contacts	26
Unique insertion number	12-26

Preview

Download Datasheet

View All

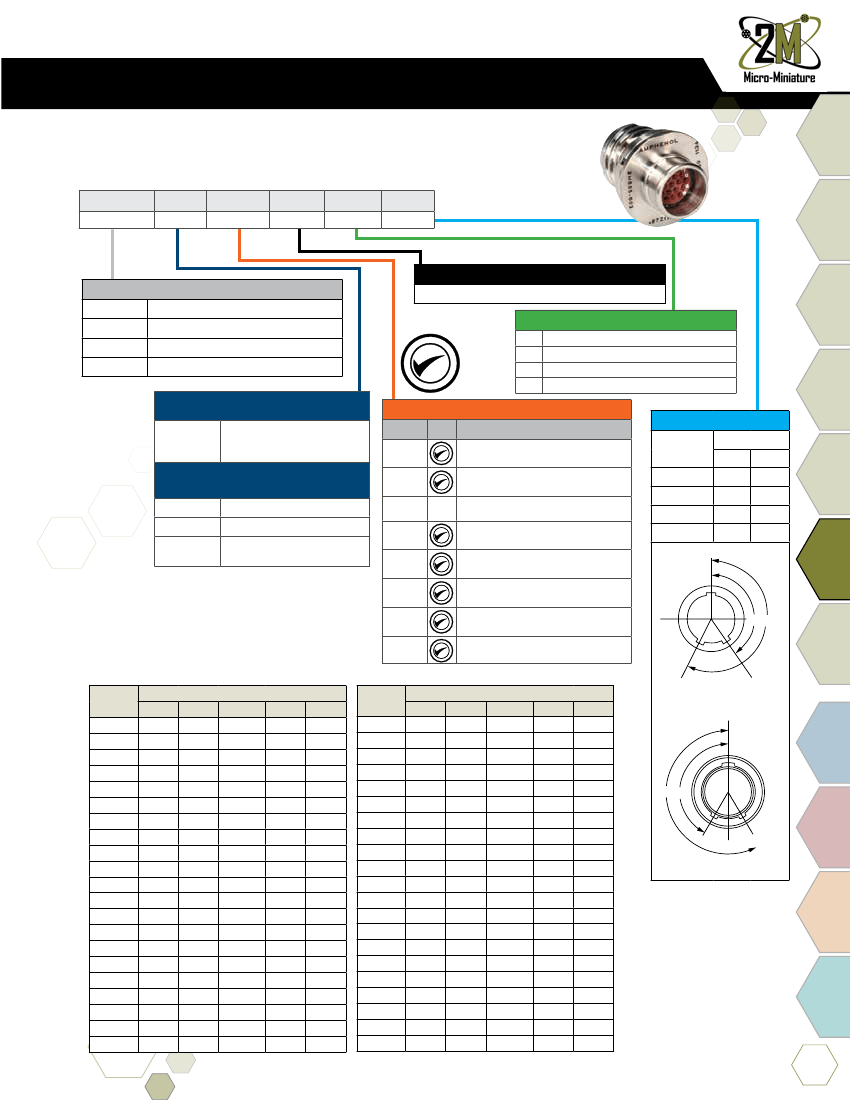

2M805 Tri-Start Threaded Coupling

Ordering Guide for 2M805 Plug & Receptacle

Contacts

& Tools

2M805 Series Connector

2M805-00X

Series

Shell Style

2M Specs

-16

Service Class

Shell Size-

Insert Arrg. Contact Type

15-37

Alternate

Position

*add "-501" to the suffix of Jam Nut version to

include a Hex Nut instead of a Spanner Nut.

SHELL SIZE - INSERT ARRANGEMENTS

SERIES

2M805-001

2M805-002

2M805-003

2M805-004

Plug with Integral Backshell

Plug with Accessory Thread

Receptacle with Integral Backshell

Receptacle with Accessory Thread

2M801

See Insert Arrangements on Pages 13-15

CONTACTS

pheno

Socket

Pin, less contacts

Socket, less contacts

2M803

002

SHELL STYLE

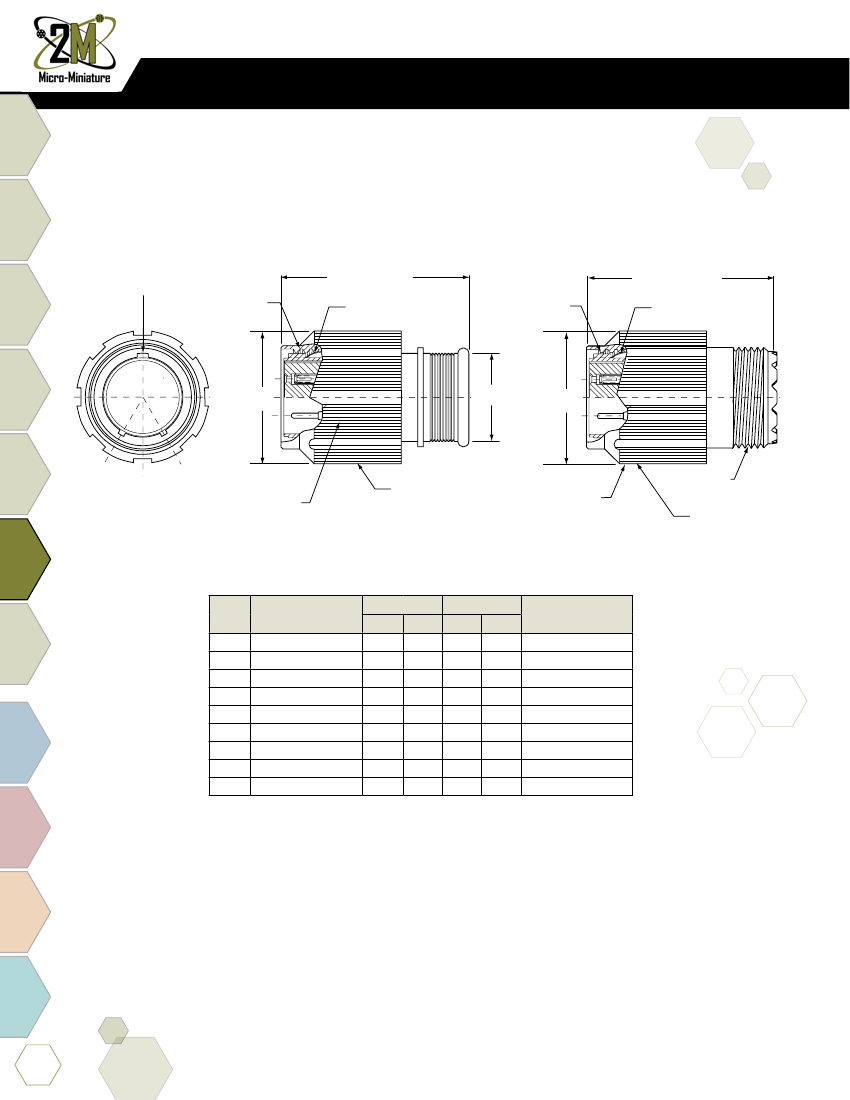

2M805-001, 2M805-002

-16

Plug Connector with

Ratcheting Anti-Decoupling

Mechanism

ZNU

pheno

002

SHELL STYLE

2M805-003, 2M805-004

-01

-02

-07

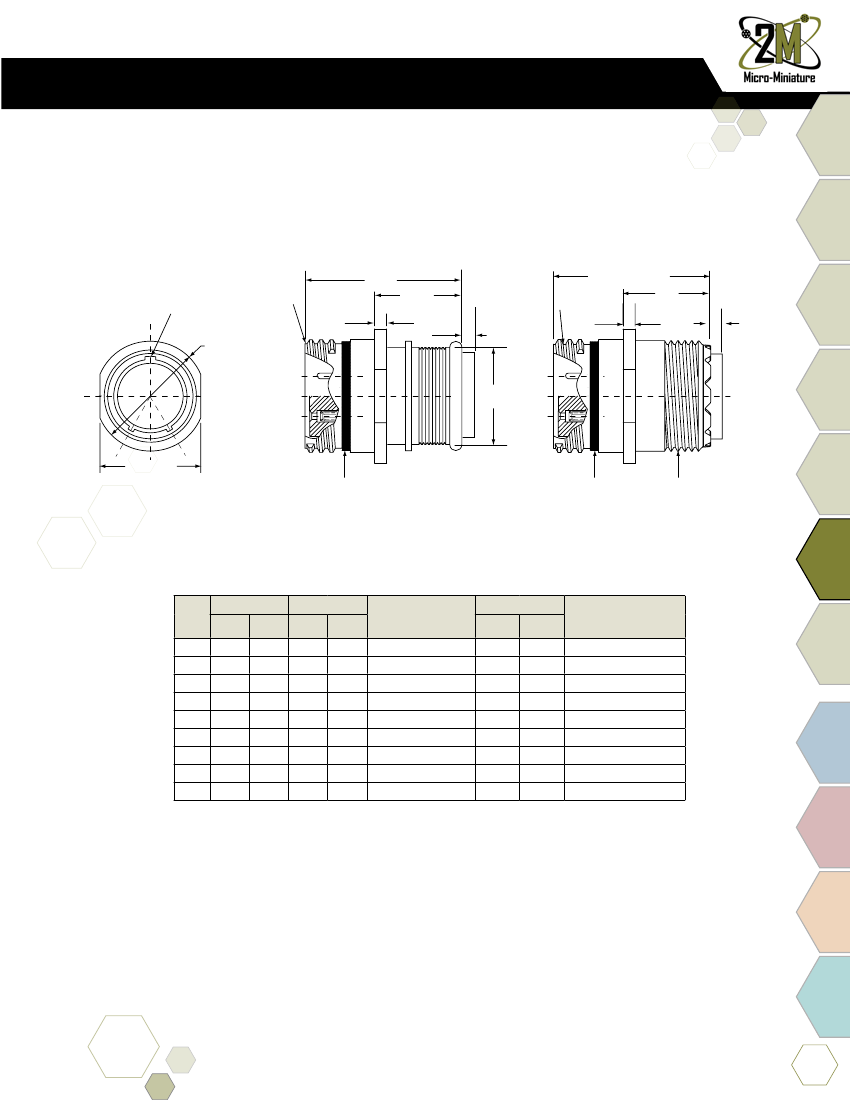

In-Line Receptacle

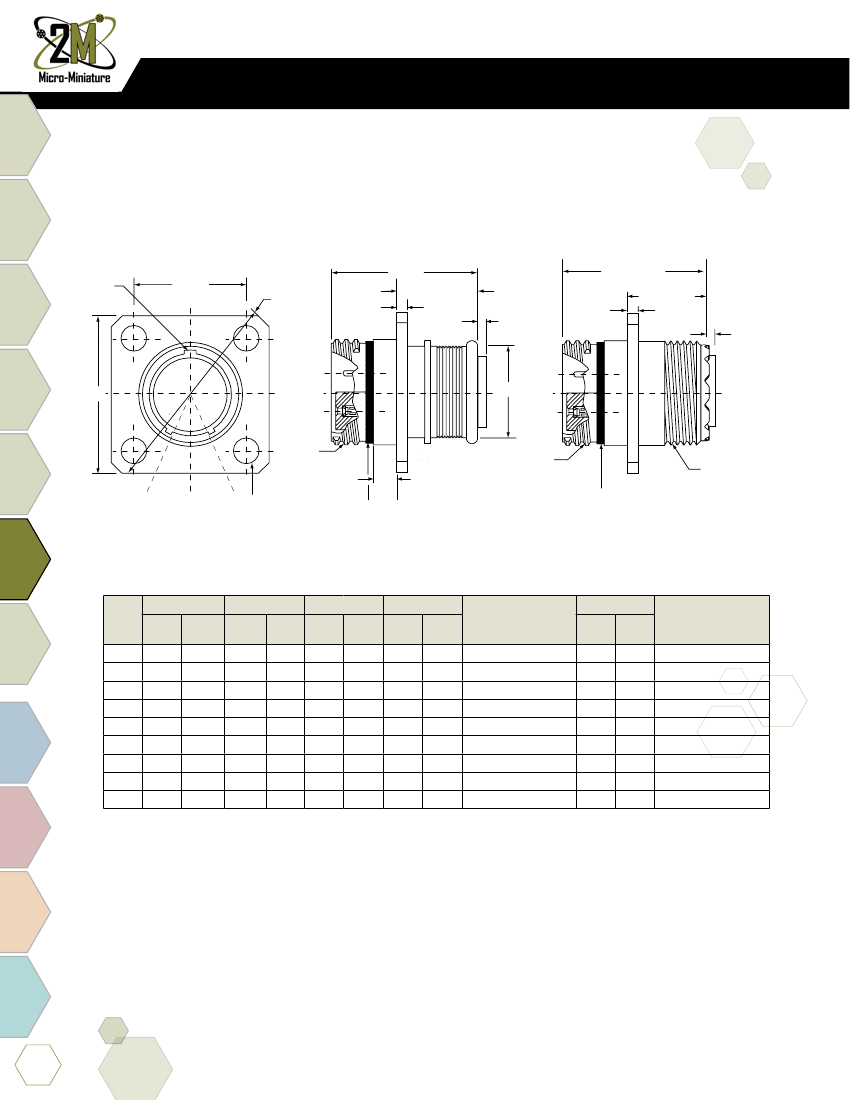

Square Flange Receptacle

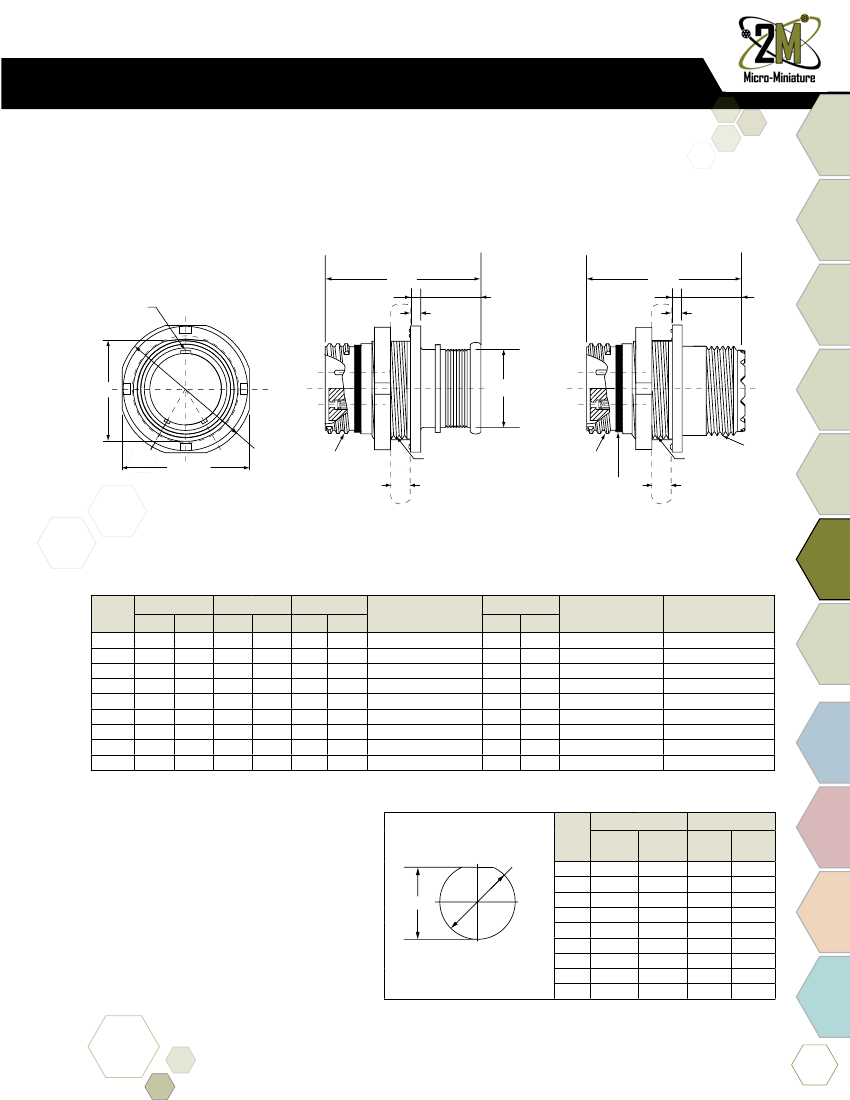

Jam Nut* for Rear Panel

Mounting Receptacle

002

pheno

002

pheno

002

INSERT ARRANGEMENTS

Insert

Arrg.

INSERT ARRANGEMENTS

#12

Insert

Arrg.

No. of Contacts

#23

#20

#20HD

#16

#12

SERVICE CLASS

Finish

KEYING

Key

Position

Normal A

Key Rotation

150°

75°

95°

140°

210°

230°

275°

Aluminum/Black Anodize

(Non-Conductive)

Aluminum/Electroless Nickel

Aluminum/Cadmium with Olive

Drab Chromate

2M804

pheno

Aluminum/Nickel-PTFE (Durmalon)

Stainless Steel/Passivated

Stainless Steel/Electroless Nickel

2M805

2M Filter &

Accessories

pheno

Aluminum/Zinc-Nickel w/Olive

Drab Chromate

Aluminum/Zinc-Nickel with Black

Chromate

A° B°

pheno

#23

8-1

8-4

8-6

8-7

8-23

9-1

9-10

9-25

10-2

10-13

10-28

10-200

11-4

11-19

11-200

11-201

11-210

12-2

12-5

12-26

12-200

No. of Contacts

#20

#20HD

#16

Receptacle View

HD38999

12-201

12-202

15-2

15-3

15-7

15-37

15-200

15-201

15-220

18-5

18-12

18-55

18-235

19-7

19-14

19-85

19-241

23-12

23-22

23-130

23-269

B° A°

Micro-D

Plug View

Terrapin

130

Nexus

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
