D25S54A4GX00 datasheet, PDF - EEWORLD Datasheet

D25S54A4GX00: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25S54A4GX00 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal

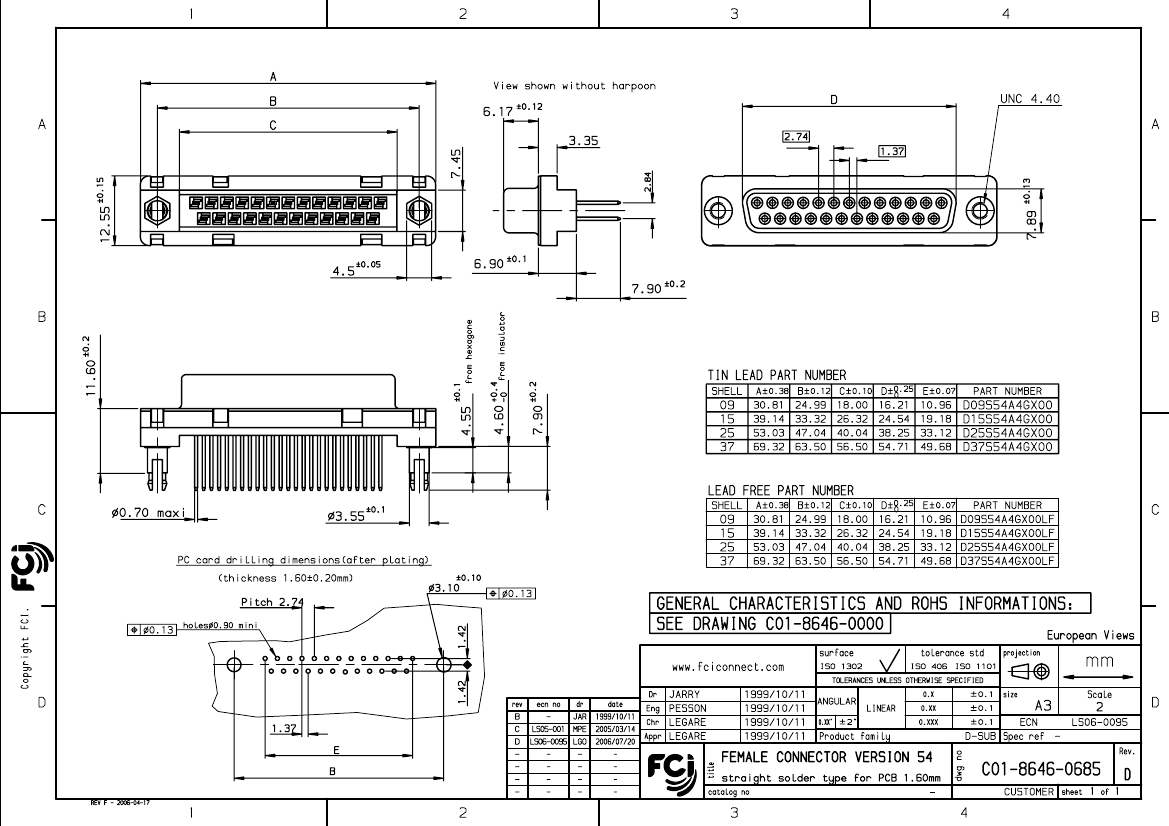

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

.

	D25S54A4GX00	D09S54A4GX00LF	D25S54A4GX00LF	D15S54A4GX00LF	D09S54A4GX00	D37S54A4GX00LF	D37S54A4GX00
Description	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal	CONN D-SUB RCPT 9POS VERT SOLDER	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	3/B	1/E	3/B	2/A	1/E	4/C	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	9	25	15	9	37	37
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	-
package instruction	-	LEAD FREE	LEAD FREE	LEAD FREE	-	LEAD FREE	-
