Part Number

Search

D5B-8511

Description
Snap Acting/Limit Switch, Momentary, 0.03A, 30VDC, 23mm, Wire Terminal, Wobble Stick Type Actuator, Panel Mount
CategoryMechanical and electronic products    switch
File Size305KB,7 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Parametric Compare View All

D5B-8511 Online Shopping

Suppliers Part Number Price MOQ In stock
D5B-8511 - - View Buy Now

D5B-8511 Overview

Snap Acting/Limit Switch, Momentary, 0.03A, 30VDC, 23mm, Wire Terminal, Wobble Stick Type Actuator, Panel Mount

D5B-8511 Parametric

Parameter NameAttribute value
MakerOMRON
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time14 weeks
Actuator stroke23 mm
Actuator typeWOBBLE STICK TYPE
body height16.7 mm
Body length or diameter8 mm
Maximum contact current (DC)0.03 A
Contact (DC) maximum rated R load.03A@30VDC
Maximum contact voltage (DC)30 V
Electrical life5000000 Cycle(s)
Manufacturer's serial numberD5B
Installation featuresPANEL MOUNT
Maximum operating force0.05 N
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Maximum pre-travel11 mm
sealIP67
surface mountNO
Switch actionMOMENTARY
Switch typeSNAP ACTING/LIMIT SWITCH
Termination typeWIRE
Base Number Matches1

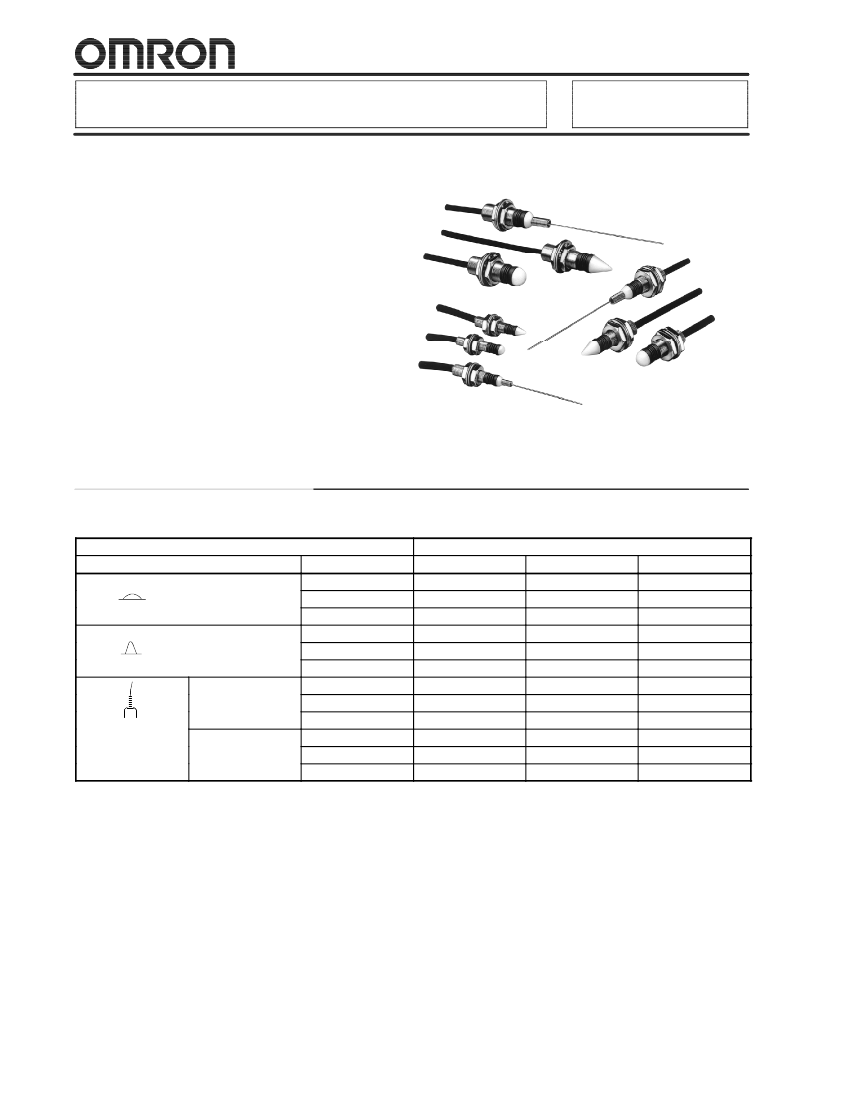

R
Tactile Switch
Detects Objects in Multiple Directions
with High Sensitivity
H
Detects object contact from multiple
H
H
H
H
directions and operates even with a
slight force
Gold-plated contacts capable of
switching micro current/voltage load and
providing high contact reliability
Highly resistant to dust, fine particles
and water or oil splash, conforming to
IP67
Three sizes (M10, M8, and M5)
Three types of actuators: hemispheric,
cone-shaped, and wobble-stick type
D5B
Ordering Information
J
LIMIT SWITCHES
Item
Actuator
Hemispheric p g
p
plunger
Cable length
1m
3m
5m
Cone-shaped plunger
p p g
1m
3m
5m
Short spring
p g
wobble-stick
bbl
i k
Long spring
g p g
wobble-stick
bbl
i k
1m
3m
5m
1m
3m
5m
Part number
M5
D5B-5011
D5B-5013
D5B-5015
D5B-5021
D5B-5023
D5B-5025
D5B-5511
D5B-5513
D5B-5515
---
---
---
M8
D5B-8011
D5B-8013
D5B-8015
D5B-8021
D5B-8023
D5B-8025
D5B-8511
D5B-8513
D5B-8515
---
---
---
M10
D5B-1011
D5B-1013
D5B-1015
D5B-1021
D5B-1023
D5B-1025
D5B-1511
D5B-1513
D5B-1515
D5B-1531
D5B-1533
D5B-1535
2

D5B-8511 Related Products

D5B-8511 D5B-5021 D5B-5011
Description Snap Acting/Limit Switch, Momentary, 0.03A, 30VDC, 23mm, Wire Terminal, Wobble Stick Type Actuator, Panel Mount Snap Acting/Limit Switch, Momentary, 0.03A, 30VDC, 2.2mm, Wire Terminal, Cone Shaped Type Actuator, Panel Mount Snap Acting/Limit Switch, Momentary, 0.03A, 30VDC, 1mm, Wire Terminal, Hemispheric Type Actuator, Panel Mount
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Actuator stroke 23 mm 2.2 mm 1 mm
Actuator type WOBBLE STICK TYPE CONE SHAPED TYPE HEMISPHERIC TYPE
body height 16.7 mm 16.2 mm 16.2 mm
Body length or diameter 8 mm 5 mm 5 mm
Maximum contact current (DC) 0.03 A 0.03 A 0.03 A
Contact (DC) maximum rated R load .03A@30VDC .03A@30VDC .03A@30VDC
Maximum contact voltage (DC) 30 V 30 V 30 V
Electrical life 5000000 Cycle(s) 5000000 Cycle(s) 5000000 Cycle(s)
Manufacturer's serial number D5B D5B D5B
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT
Maximum operating force 0.05 N 0.2 N 0.49 N
Maximum operating temperature 70 °C 70 °C 70 °C
Minimum operating temperature -10 °C -10 °C -10 °C
Maximum pre-travel 11 mm 0.6 mm 0.6 mm
seal IP67 IP67 IP67
surface mount NO NO NO
Switch action MOMENTARY MOMENTARY MOMENTARY
Switch type SNAP ACTING/LIMIT SWITCH SNAP ACTING/LIMIT SWITCH SNAP ACTING/LIMIT SWITCH
Termination type WIRE WIRE WIRE
Base Number Matches 1 1 1
Factory Lead Time 14 weeks - 12 weeks
