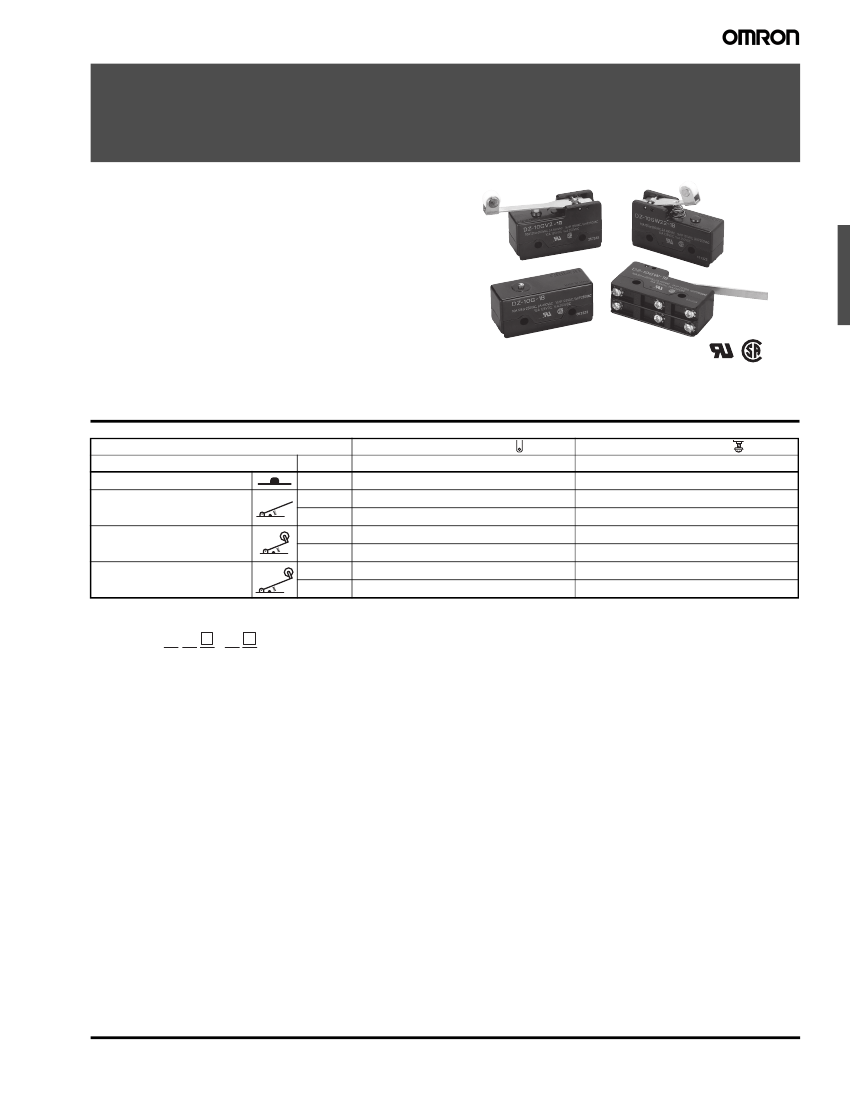

Special-purpose Basic Switch
DZ
DPDT Basic Switch for Two Independent
Circuit Control
• Incorporates two completely independent built-in switches.
• Ideal for switching the circuits operating on two different
voltages, and for controlling two independent circuits.
• Interchangeable with OMRON Z Basic Switches, as both
switches are identical in mounting hole dimensions,
mounting pitch and pin plunger position.
Ordering Information
Terminal
Actuator
Pin plunger
Hinge lever
Short hinge roller lever
Hinge roller lever
OT (min.)
0.13 mm
1.6 mm
0.4 mm
0.9 mm
0.13 mm
1.2 mm
0.26 mm
Solder terminal (-1A)
Model
DZ-10G-1A
DZ-10GW-1A
DZ-10GV-1A
DZ-10GW22-1A
DZ-10GV22-1A
DZ-10GW2-1A
DZ-10GV2-1A
Screw terminal (-B)
Model
DZ-10G-1B
DZ-10GW-1B
DZ-10GV-1B
DZ-10GW22-1B
DZ-10GV22-1B
DZ-10GW2-1B
DZ-10GV2-1B
Model Number Legend
DZ-10 G
-1
1 2 3 4 5
1. Ratings
10: 10 A (250 VAC)
2. Contact Gap
G: 0.5 mm
3. Actuator
None:
Pin plunger
Low OT Levers:
V:
Hinge lever
V22: Short hinge roller lever
V2:
Hinge roller lever
High OT Levers:
W:
Hinge lever
W22: Short hinge roller lever
W2: Hinge roller lever
4. Contact Form
1:
DPDT
5. Terminals
A:
Solder terminal
B:
Screw terminal
Special-purpose Basic Switch
DZ
89
Specifications
■
Characteristics
Operating speed
Operating frequency
Contact resistance
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Degree of protection against electric shock
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Service life
Weight
Note: 1.
The values are for pin plunger models.
2.
Malfunction: 1 ms max.
Mechanical
Electrical
Malfunction
Destruction
Malfunction
Mechanical
Electrical
0.1 mm to 1 m/s (See note 1)
240 operations/min
20 operations/min
15 mΩ max. (initial value)
100 MΩ min. (at 500
VDC)
1,000
VAC,
50/60 Hz for 1 min between non-continuous terminals
1,500
VAC,
50/60 Hz for 1 min between current-carrying metal parts and non-current-carrying
metal part, and between current-carrying metal part and ground and between switches
10 to 55 Hz, 1.5-mm double amplitude (See note 2)
1,000 m/s
2
max.
300 m/s
2
max. (See notes 1 and 2)
IP00
Class I
175
−25°C
to 80°C (with no icing)
35% to 85%RH
1,000,000 operations min.
500,000 operations min.
Approx. 30 to 50 g
■
Ratings
Non-inductive load (A)
Rated voltage
(V)
125 VAC
250 VAC
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
Resistive load
NC
10
10
10
10
10
0.5
0.25
NO
NC
2
1.5
3
3
3
0.5
0.25
Lamp load
NO
1
0.7
1.5
1.5
1.5
NC
6
4
6
6
4
0.05
0.03
Inductive load (A)
Inductive load
NO
NC
3
2
5
5
3
0.05
0.03
Motor load
NO
1.5
1
2.5
2.5
1.5
Note: 1.
The above values are for steady-state current.
2.
Inductive load has a power factor of 0.4 min. (AC) and a time
constant of 7 ms max. (DC).
3.
Lamp load has an inrush current of 10 times the steady-state current.
4.
Motor load has an inrush current of 6 times the steady-state current.
5.
The ratings values apply under the following test conditions:
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%RH
(3) Operating frequency: 20 operations/min
■
Contact Specifications
Contacts
Inrush current
Material
Gap (standard value)
NC
NO
Silver alloy
0.5 mm
30 A max.
15 A max.
■
Safety Standard Ratings
UL/CSA
Rated voltage
125 VAC
250 VAC
480 VAC
125 VDC
250 VDC
DZ-10G
10 A and 1/8 HP
10 A and 1/4 HP
2A
0.5 A
0.25 A
90
Special-purpose Basic Switch
DZ
Engineering Data
■
Mechanical Durability
(DZ-10G-1B)
Durability (x10
4
operations)
10,000
7,000
5,000
3,000
Ambient temperature: 20±2°C
Ambient humidity: 65±5%RH
Without load
Operating frequency: 240 operations/min
■
Electrical Durability
(DZ-10G-1B)
Durability (x10
4
operations)
1,000
700
500
300
125 VAC
100
70
50
30
250 VAC
Ambient temperature: 20±2°C
Ambient humidity: 65±5%RH
Operating frequency: 20 operations/min
cosφ =1
1,000
700
500
300
100
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7 0.8
10
0
5
10
15
Overtravel (mm)
Switching current (A)
■
Structure
Contact Form (DPDT)
COM2
NC2
NO2
COM1
NC1
NO1
Dimensions
Note:
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
■
Terminals
Screw Terminals (-1B)
14.5
8.2
25.4
±
0.1
49.2
23.5
COM
COM
NC
NC
Solder Terminals (-1A)
14.5
8.2
11.9
16.8
C OM
17.45
±
0.2
25.4
±
0.1
49.2
23.5
NC
11.9
16.8
NO
17.45
±
0.2
NO
NO
Six M3 pan head screws
(with toothed washer)
C OM
NC
NO
■
Mounting
All switches can be mounted using M4 mounting screws with plane
washers or spring washers to securely mount the Switch. Tighten the
screws to a torque of 1.18 to 1.47 N·m.
Two, 4.2 dia. mounting holes or
M4 screw holes
25.4
±
0.1
Accessories (Terminal Covers, and Separators): Refer to ‘Z/A/X/DZ Common Accessories’ datasheet
Special-purpose Basic Switch
DZ
91
Note: 1.
The solder terminal model has a suffix "-1A" in its model number and its omitted dimensions are the same as the corresponding
dimensions of the pin plunger model.
2.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.

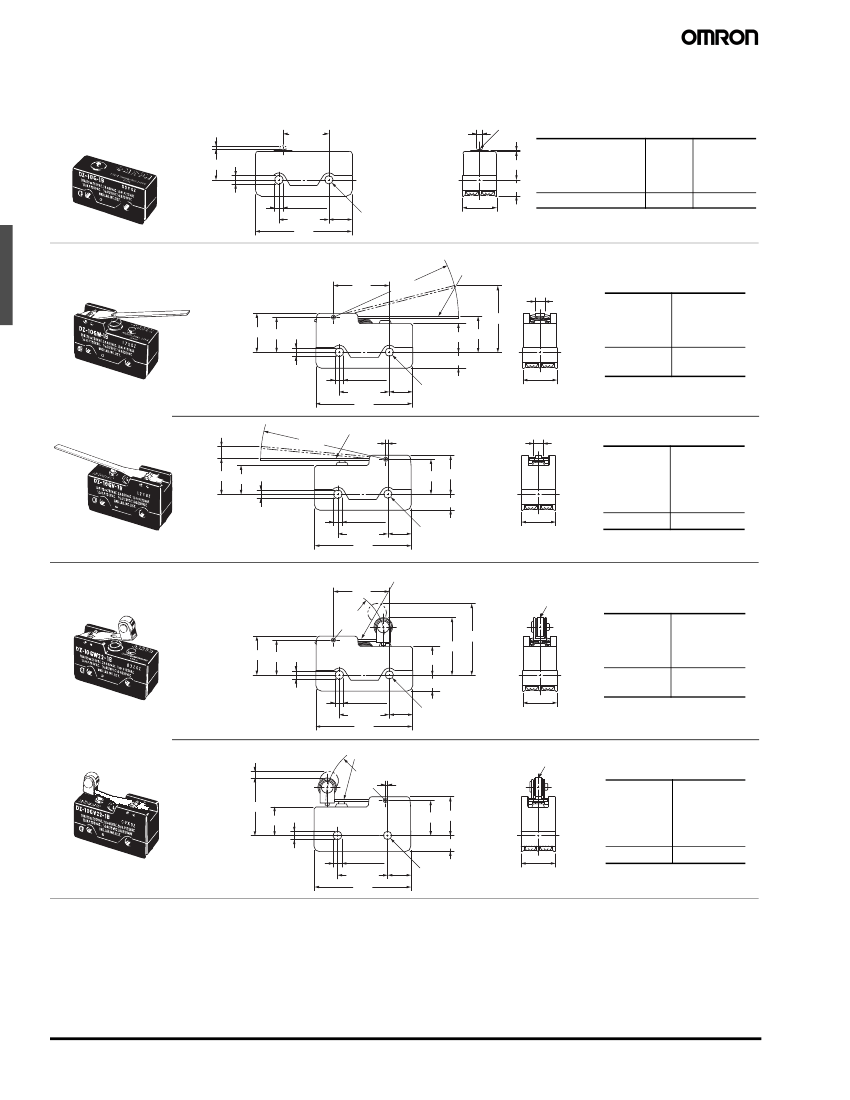

Pin Plunger
DZ-10G-1B
PT
23.3
±
0.25
OP
3 dia. 2.5SR *
0.4
14.5
8.2
Operating force
Release force
Pretravel
Overtravel
Movement Differential
Operating Position
OF max.
RF min.
PT max.
OT min.
MD max.
OP
570 gf
57 gf
1.7 mm
0.13 mm
0.4 mm
15.6±0.4 mm
4.2
+0.075
-0.025
4.36
+0.1
-0.05
25.4
±
0.1
49.2
dia.
11.9
4.2
+0.075
-0.025
dia. hole
17.45
±
0.2
* Stainless-steel pin plunger
Hinge Lever
DZ-10GW-1B
28.4
6
R
3.5
t=1*
4.9
FP
19.7 17.7
14.5
8.2
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
dia. hole
-0.025
17.45
±
0.2
* Stainless-steel lever
OP
OF max.
RF min.
OT min.
MD max.
FP max.
OP
170 gf
28 gf
1.6 mm
4 mm
46.3 mm
21.8±1 mm
DZ-10GV-1B
PT
t=1*
63.5R
1.1
4.9
OP 14.5
17.7 19.7
8.2
4.2
+0.075
-0.025
OF max.
RF min.
PT max.
OT min.
MD max.
17.45
±
0.2
200 gf
13 gf
6 mm
0.4 mm
1.7 mm
18.3±1 mm
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
dia. hole
-0.025
OP
* Stainless-steel lever
Short Hinge Roller Lever
DZ-10GW22-1B
26
t=1*
28.4
R
9.5 dia.
×
4
(plastic roller)
FP
OP
19.7 17.7
14.5
8.2
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
dia. hole
-0.025
17.45
±
0.2
* Stainless-steel lever
9.5 dia.
×
4
(plastic roller)
1.1
OF max.
RF min.
OT min.
MD max.
FP max.
OP
400 gf
85 gf
0.9 mm
2.4 mm
39.7 mm
30.2±0.8 mm
DZ-10GV22-1B
PT
.2
t=1*
30
.2
R
OP
14.5
17.7 19.7
8.2
OF max.
RF min.
PT max.
OT min.
MD max.
OP
17.45
±
0.2
* Stainless-steel lever
430 gf
42 gf
3 mm
0.13 mm
0.6 mm
29.4±0.8 mm
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
-0.025
dia. hole
92
Special-purpose Basic Switch
DZ
Note: 1.
The solder terminal model has a suffix "-1A" in its model number and its omitted dimensions are the same as the corresponding
dimensions of the pin plunger model.
2.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.

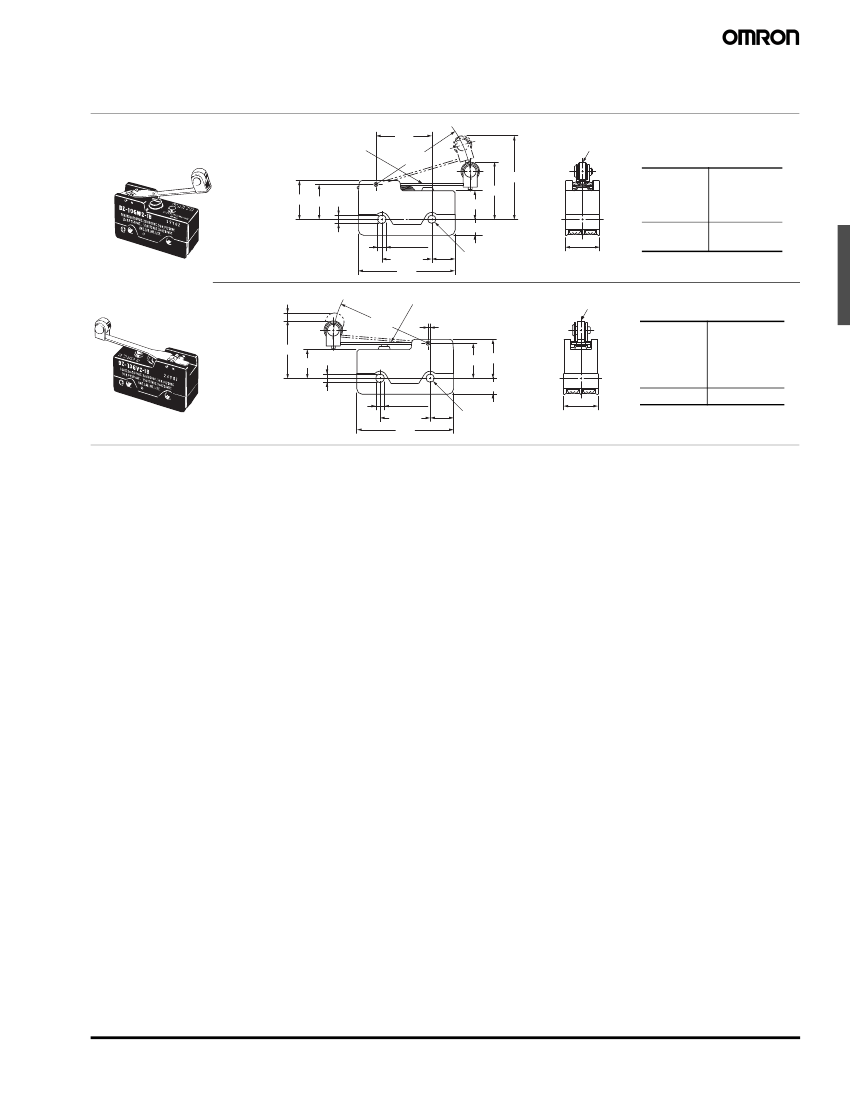

Hinge Roller Lever
DZ-10GW2-1B
t=1*
28.4
48
.4R
9.5 dia.
×
4
(plastic roller)
FP
OP
19.7 17.7
14.5
8.2
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
dia. hole
-0.025
17.45
±
0.2
* Stainless-steel lever
9.5 dia.
×
4
(plastic roller)
OF max.
RF min.
OT min.
MD max.
FP max.
OP
213 gf
42 gf
1.2 mm
3.3 mm
47.6 mm
31.8±0.8 mm
DZ-10GV2-1B
PT
48.
4R
t=1*
1.1
OP
14.5
17.7 19.7
8.2
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
dia. hole
-0.025
17.45
±
0.2
* Stainless-steel lever
OF max.
RF min.
PT max.
OT min.
MD max.
OP
270 gf
34 gf
4 mm
0.26 mm
1.1 mm
29.4±0.8 mm
Special-purpose Basic Switch
DZ
93
