440AS001M09 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 440AS001M09

Preview

440AS001M09: DescriptionEMI/RFI Crimp Ring Adapter Direct Coupling - Standard Profile; File Size48KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

440AS001M09 Overview

EMI/RFI Crimp Ring Adapter Direct Coupling - Standard Profile

Preview

Download Datasheet

View All

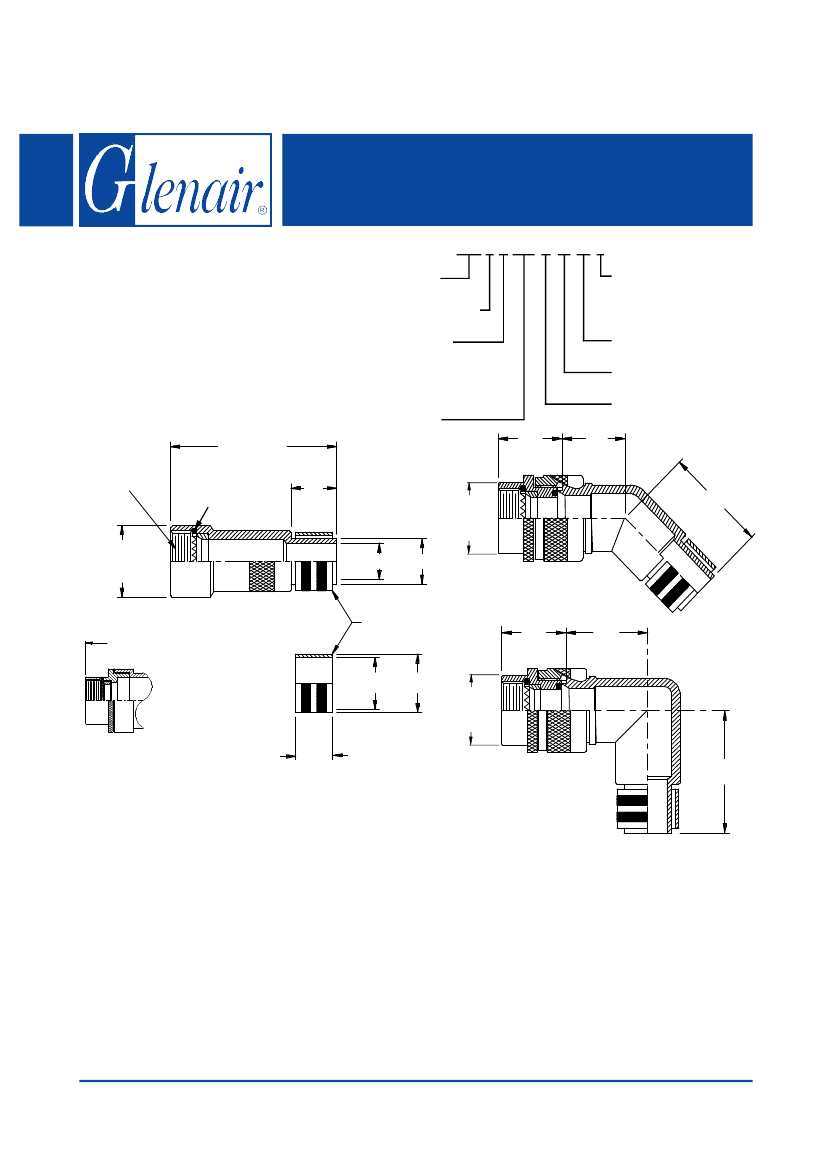

440-001

EMI/RFI Crimp Ring Adapter

Direct Coupling - Standard Profile

440 F S 001 M 16 32-6

Product Series

Connector Designator

Angle and Profile

H = 45

J = 90

S = Straight

Basic Part No.

Length *

A Thread

(Table I)

O-Ring

* Length ± .060

(1.52)

Min. Order

Length 1.5 Inch

(See Note 4)

(Table III)

440

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Cable Entry (Table V)

Shell Size (Table I)

Finish (Table II)

(Table IV)

DIRECT COUPLING

(Table I)

F (Table IV)

(Table I)

L**

M**

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

Crimp Ring

(Table III)

(Table IV)

P**

R**

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

** (Table V)

N**

H (Table IV)

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

1. When maximum cable entry (page 22- Introduction) is exceeded, Style 2 will be supplied. (Function S only).

2. For proper installation of crimp ring, use Thomas & Betts (or equivalent) installation dies listed (Table V) for each

dash no.

3. Metric dimensions (mm) are indicated in parentheses.

4. Consult factory for shorter lengths on straight backshells.

5. When using Connector Designator B refer to pages 18 and 19 for part number development.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 440 - Page 8
