803-91-016-30-002 datasheet, PDF

Datasheet> All Categories > 803-91-016-30-002

Preview

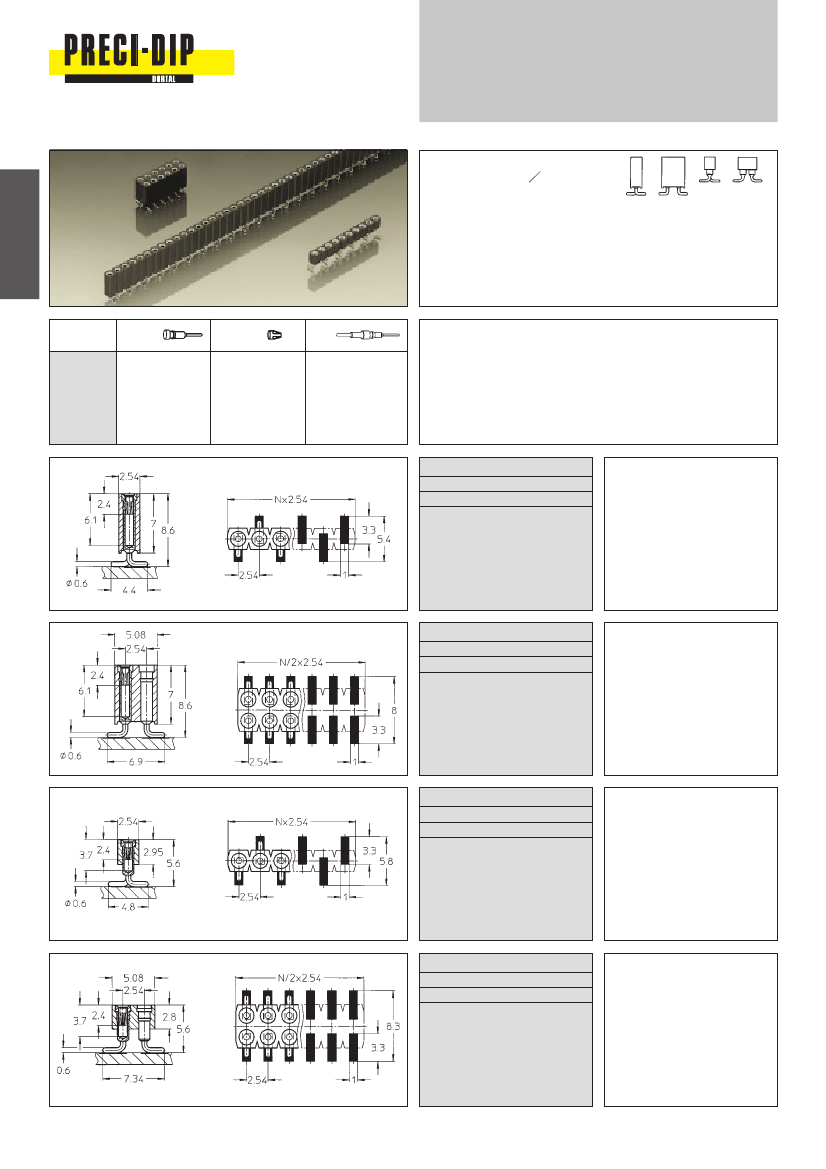

803-91-016-30-002: DescriptionPCB connectors 2.54 mm Single row / double row Surface mount; File Size50KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet View All

803-91-016-30-002 Overview

PCB connectors 2.54 mm Single row / double row Surface mount

Preview

Download Datasheet

View All

Series 800

PCB connectors 2.54 mm

Single row / double row

Surface mount

Receptacles, surface mount

Accept square pins

0.635 mm

and round pins

∅

0.70–0.80 mm

For corresponding pin connectors see

pages 30 to 35

Platings

Sleeve

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.25

µm

0.75

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 803-91-xxx-30-001

for a double row version with 8 pins per row becomes:

803-91-016-30-001

801-91-xxx-30-001

801-93-xxx-30-001

801-99-xxx-30-001

SMD receptacle: single row

perpendicular mount

Availability from: 3 to 50 contacts

Standard number of contacts 24,

28, 29, 30, 36, 42, 48 and 50

803-91-xxx-30-001

803-93-xxx-30-001

803-99-xxx-30-001

SMD receptacle: double row

perpendicular mount

Availability from: 4 to 100

contacts

Standard number of contacts 72

and 100

801-91-xxx-30-002

801-93-xxx-30-002

801-99-xxx-30-002

SMD receptacle: single row, low

profile, perpendicular mount

Availability from: 3 to 32 contacts

Standard number of contacts 32

803-91-xxx-30-002

803-93-xxx-30-002

803-99-xxx-30-002

SMD receptacle: double row, low

profile, perpendicular mount

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64 and 72
