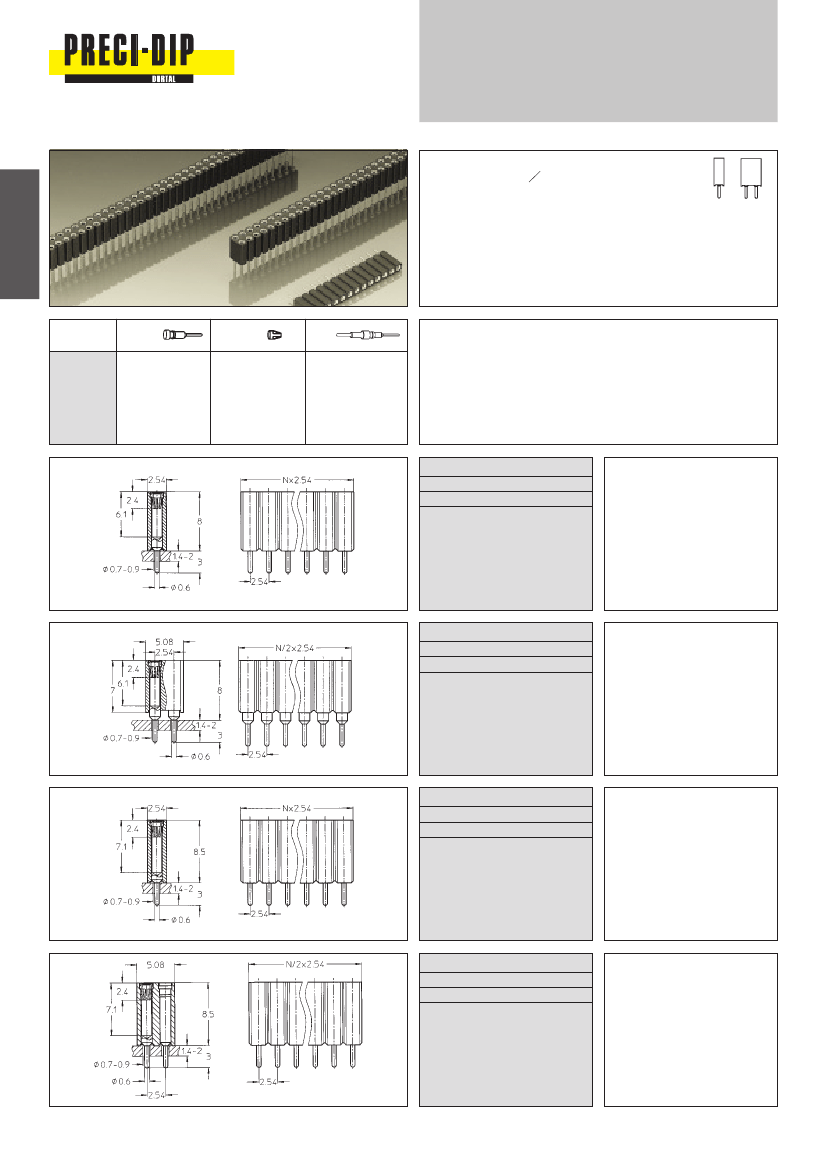

Series 800
24
PCB connectors 2.54 mm
Single row / double row
Solder tail
Receptacles, solder tail
Accept square pins
s
0.635 mm
and round pins
∅
0.70–0.80 mm
For corresponding pin connectors see pages 30 to 35
Platings
91
93
99
Sleeve
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.25
µm
Au
0.75
µm
Au
5
µm
Sn Pb
Pin
Ordering information
Replace
xxx
with the number of poles, e.g. 803-91-xxx-10-003
for a double row version with 8 pins per row becomes:
803-91-016-10-003
Option:
Triple row on request
801-91-xxx-10-003
801-93-xxx-10-003
801-99-xxx-10-003
Straight receptacle height 8 mm:
solder tail, single row
Availability from: 1 to 36 contacts
Standard number of contacts 36
803-91-xxx-10-003
803-93-xxx-10-003
803-99-xxx-10-003
Straight receptacle height 8 mm:
solder tail, double row
Availability from: 4 to 100
contacts
Standard number of contacts 72
and 100
801-91-xxx-10-005
801-93-xxx-10-005
801-99-xxx-10-005
Straight receptacle height
8.5 mm: solder tail, single row
Availability from: 1 to 36 contacts
Standard number of contacts 36
803-91-xxx-10-005
803-93-xxx-10-005
803-99-xxx-10-005
Straight receptacle height
8.5 mm: solder tail, double row
Availability from: 4 to 100
contacts
Standard number of contacts 100
