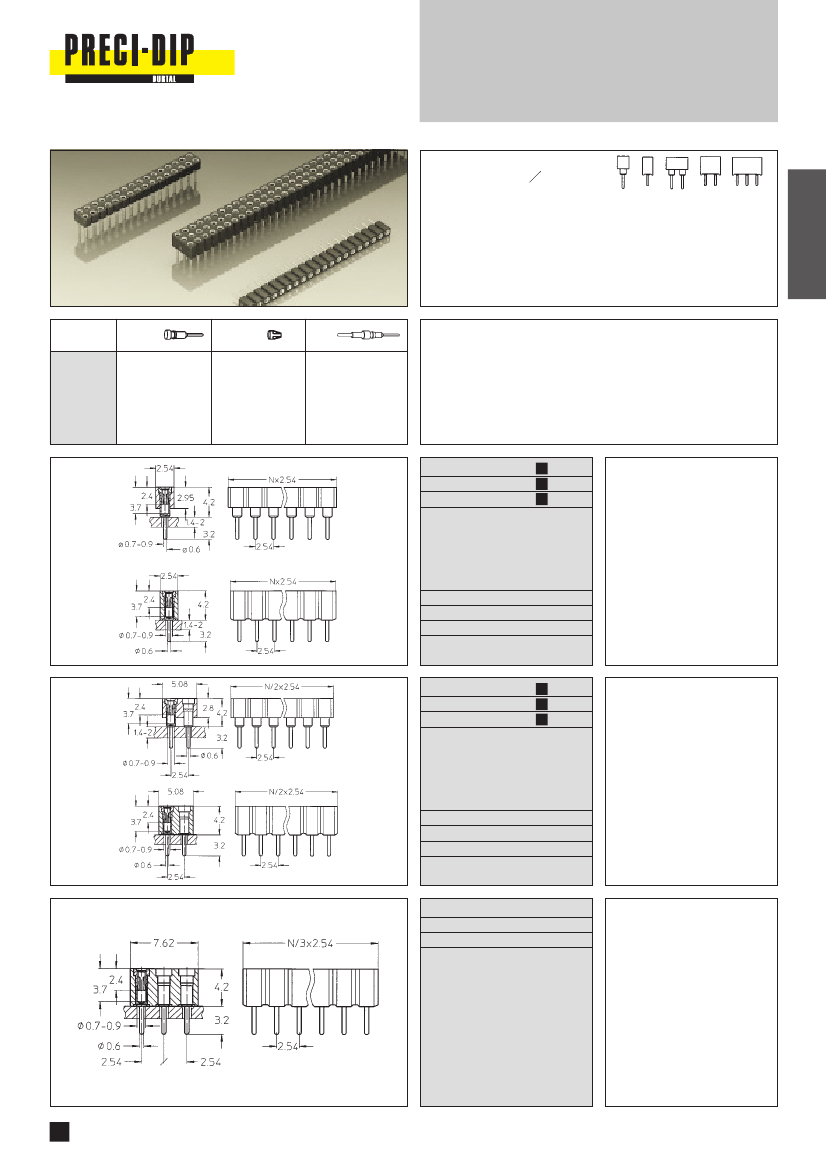

Series 800
PCB connectors 2.54 mm
Single row / double row / triple row
Solder tail
23
Receptacles, solder tail
Accept square pins
s
0.635 mm
and round pins
∅
0.70–0.80 mm
For corresponding pin connectors see
pages 30 to 35
Platings
91
93
99
Sleeve
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.25
µm
Au
0.75
µm
Au
5
µm
Sn Pb
Pin
Ordering information
Replace
xxx
with the number of poles, e.g. 803-91-xxx-10-012
for a double row version with 8 pins per row becomes:
803-91-016-10-012
801-91-xxx-10-002
B
801-93-xxx-10-002
B
801-99-xxx-10-002
B
Straight receptacle: solder tail,
single row, low profile
h = 4.2 mm
…-002: Availability from: 1 to 64
contacts
Standard number of contacts 64
801-91-xxx-10-012
801-93-xxx-10-012
801-99-xxx-10-012
…-012: Availability from: 1 to 32
contacts
Standard number of contacts 14,
20 and 32
803-91-xxx-10-002
B
803-93-xxx-10-002
B
803-99-xxx-10-002
B
Straight receptacle: solder tail,
double row, low profile
h = 4.2 mm
…-002: Availability from: 4 to 72
contacts
Standard number of contacts 40,
44, 56, 64 and 72
803-91-xxx-10-012
803-93-xxx-10-012
803-99-xxx-10-012
…-012: Availability from: 4 to 64
contacts
Standard number of contacts 64
805-91-xxx-10-012
805-93-xxx-10-012
805-99-xxx-10-012
Straight receptacle: solder tail,
triple row, low profile
h = 4.2 mm
Availability from: 9 to 96 contacts
Standard number of contacts 96
B
Products not available from stock. Please consult PRECI-DIP.
