FLDL-TTL-275J datasheet, PDF - EEWORLD Datasheet

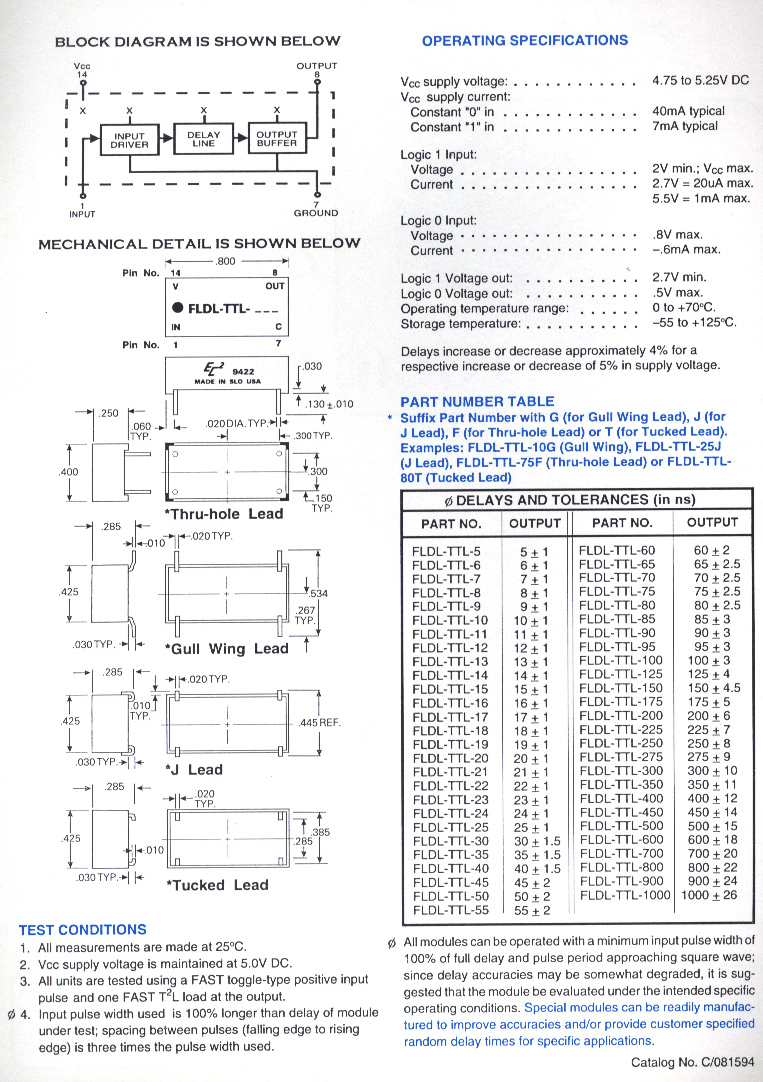

FLDL-TTL-275J: DescriptionActive Delay Line, 1-Func, 1-Tap, True Output, TTL, J LEAD, MODULE-14/4; Categorylogic logic; File Size479KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

FLDL-TTL-275J Overview

Active Delay Line, 1-Func, 1-Tap, True Output, TTL, J LEAD, MODULE-14/4

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	SOIC
package instruction	SOJ, SMDIP4/14,.44
Contacts	4
Reach Compliance Code	unknown
Other features	TYP. ICC = 40MA; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	F
JESD-30 code	R-XDSO-J4
length	20.32 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOJ
Encapsulate equivalent code	SMDIP4/14,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	284 ns
Certification status	Not Qualified
Maximum seat height	7.239 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	275 ns
width	10.795 mm
Base Number Matches	1
