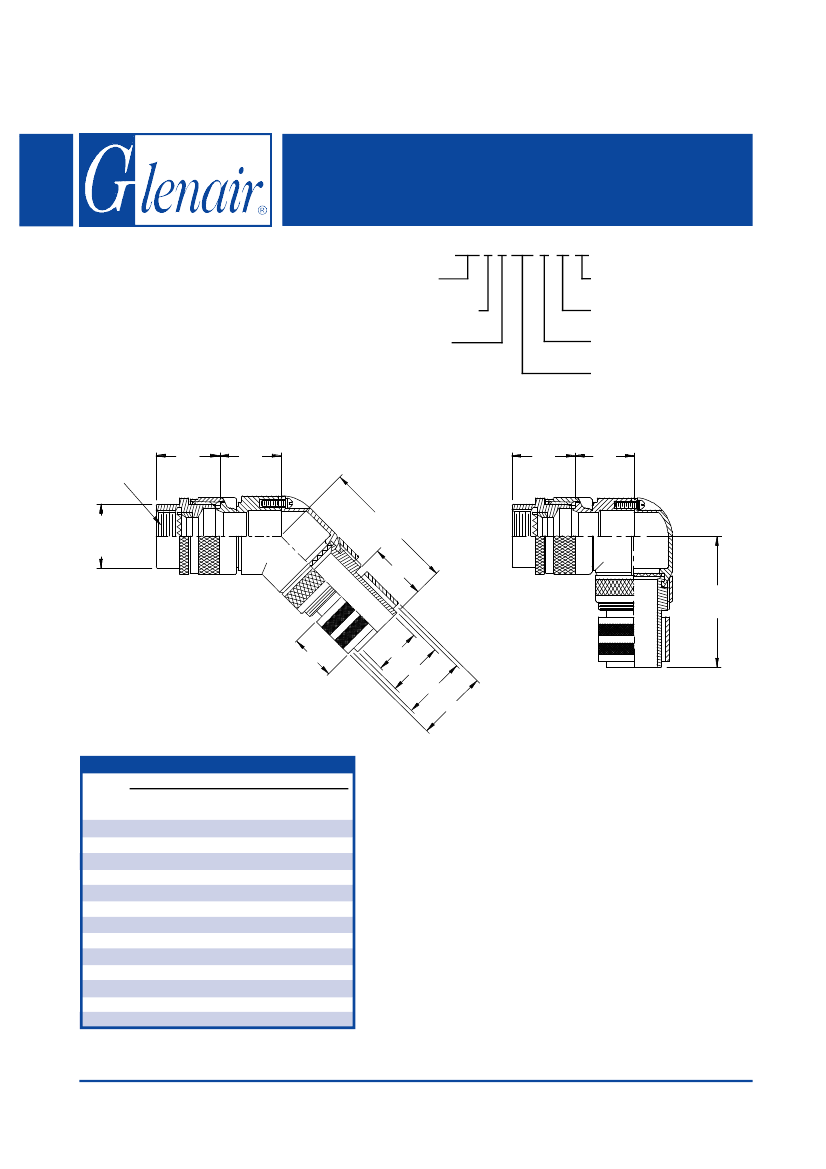

440-001

EMI/RFI Crimp Ring Adapter

Direct Coupling - Split Shell

440

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 4

CONNECTOR

DESIGNATORS

440 F D 001 M 16 32

Product Series

Connector Designator

Angle and Profile

D = Split 90

F = Split 45

Cable Entry (Table V)

Shell Size (Table I)

Finish (Table II)

Basic Part No.

DIRECT COUPLING

A Thread

(Table I)

(Table III)

(Table IV)

(Table III) (Table IV)

B Typ.

(Table I)

F (Table IV)

Split 45°

* (Table V)

TABLE III: FRONT ADAPTER

J Max - Conn. Designator

A-E-F

D-B-G-K

J-H-L-S

1.180 (30.0) 1.250 (31.8)

1.180 (30.0) 1.250 (31.8) 1.735 (44.1)

1.180 (30.0) 1.250 (31.8) 1.915 (48.6)

1.380 (35.0) 1.560 (39.6) 1.915 (48.6)

1.610 (40.9) 1.560 (39.6) 1.915 (48.6)

1.610 (40.9) 1.750 (44.5) 1.915 (48.6)

1.610 (40.9) 2.190 (55.6) 1.915 (48.6)

Split 90°

H (Table IV)

Shell

Size

08/09

10/11

12/13

14/15

16/17

18/19

20/21

22/23

24/25

28/29

32/33

See inside back cover fold-out or pages

13 and 14 for Tables I and II.

1. For proper installation of crimp ring, use Thomas & Betts (or

equivalent) installation dies listed (Table V) for each dash no.

2. Metric dimensions (mm) are indicated in parentheses.

3. Dimensions shown are not intended for inspection criteria.

4. When using Connector Designator B refer to pages 18 and 19

for part number development.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 440 - Page 10
