AZ1117S-1.8TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AZ1117S-1.8TR

AZ1117S-1.8TR: DescriptionRegulator, 1 Output, BIPolar,; CategoryPower/power management The power supply circuit; File Size220KB，24 Pages; ManufacturerBCD Semi（Diodes）

Download Datasheet Parametric View All

AZ1117S-1.8TR Overview

Regulator, 1 Output, BIPolar,

AZ1117S-1.8TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	BCD Semi（Diodes）
package instruction	, SMSIP3H,.55TB
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	1.15 V
Maximum absolute input voltage	20 V
JESD-609 code	e0
Maximum grid adjustment rate	0.006%
Maximum load regulation	0.01%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1 A
Nominal output voltage 1	1.8 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.55TB
method of packing	TAPE AND REEL
Certification status	Not Qualified
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	3%
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

1A LOW DROPOUT LINEAR REGULATOR

CURRENT MODE PWM CONTROLLER

General Description

The AZ1117 is a series of low dropout three-terminal

regulators with a dropout of 1.15V at 1A output cur-

rent.

The AZ1117 series provides current limiting and ther-

mal shutdown. Its circuit includes a trimmed bandgap

reference to assure output voltage accuracy to be

within 1% for 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V and

adjustable versions or 2% for 1.2V version. Current

limit is trimmed to ensure specified output current and

controlled short-circuit current. On-chip thermal shut-

down provides protection against any combination of

overload and ambient temperature that would create

excessive junction temperature.

The AZ1117 has an adjustable version, that can pro-

vide the output voltage from 1.25V to 12V with only 2

external resistors.

The AZ1117 series is available in the industry standard

SOT-223, SOT-89-3, TO-220-3, TO-252-2 and TO-

263-3 power packages.

AZ1117

AZ2842/3/4/5

Features

Low Dropout Voltage: 1.15V at 1A Output Cur-

rent

Trimmed Current Limit

On-chip Thermal Shutdown

Three-terminal Adjustable or Fixed 1.2V, 1.5V,

1.8V, 2.5V, 2.85V, 3.3V, 5.0V

Operation Junction Temperature: -40 to 125

Applications

PC Motherboard

LCD Monitor

Graphic Card

DVD-video Player

NIC/Switch

Telecom Equipment

ADSL Modem

Printer and other Peripheral Equipment

SOT-223

SOT-89-3

TO-220-3

TO-252-2

TO-263-3

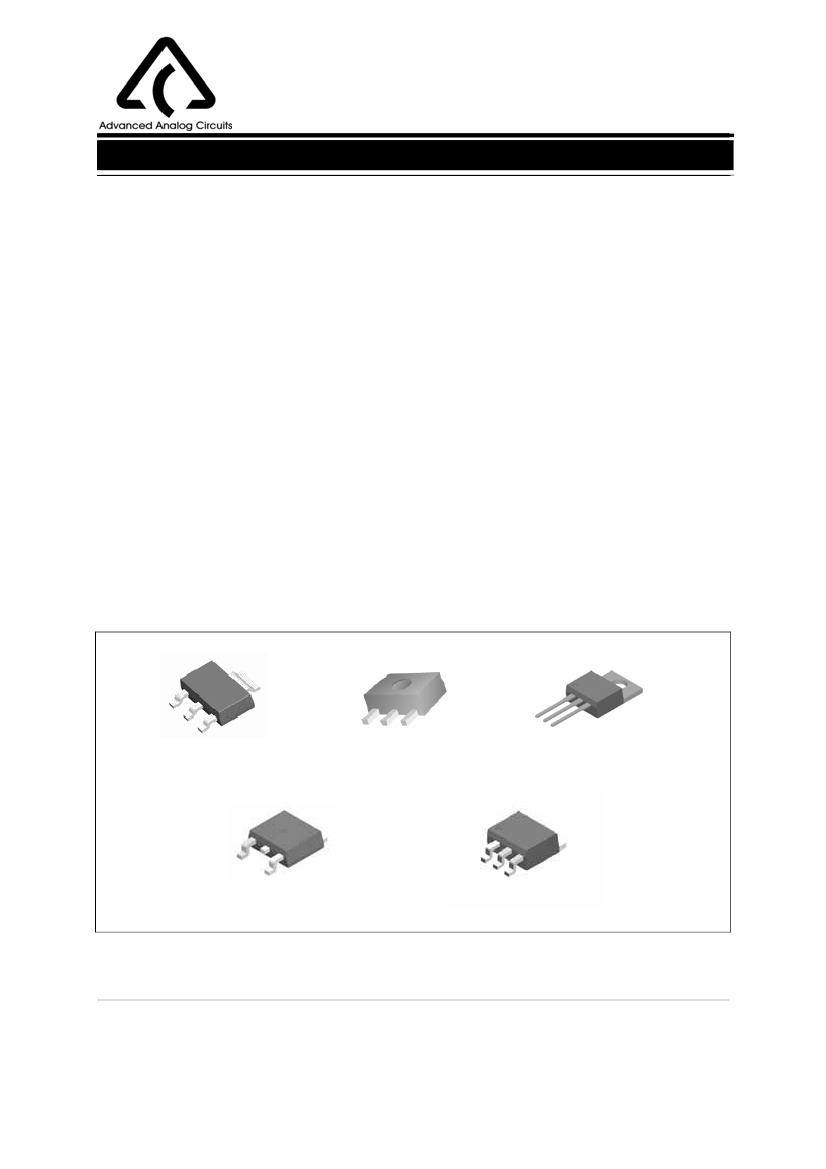

Figure 1. Package Types of AZ1117

Oct. 2005 Rev. 1. 7

BCD Semiconductor Manufacturing Limited
