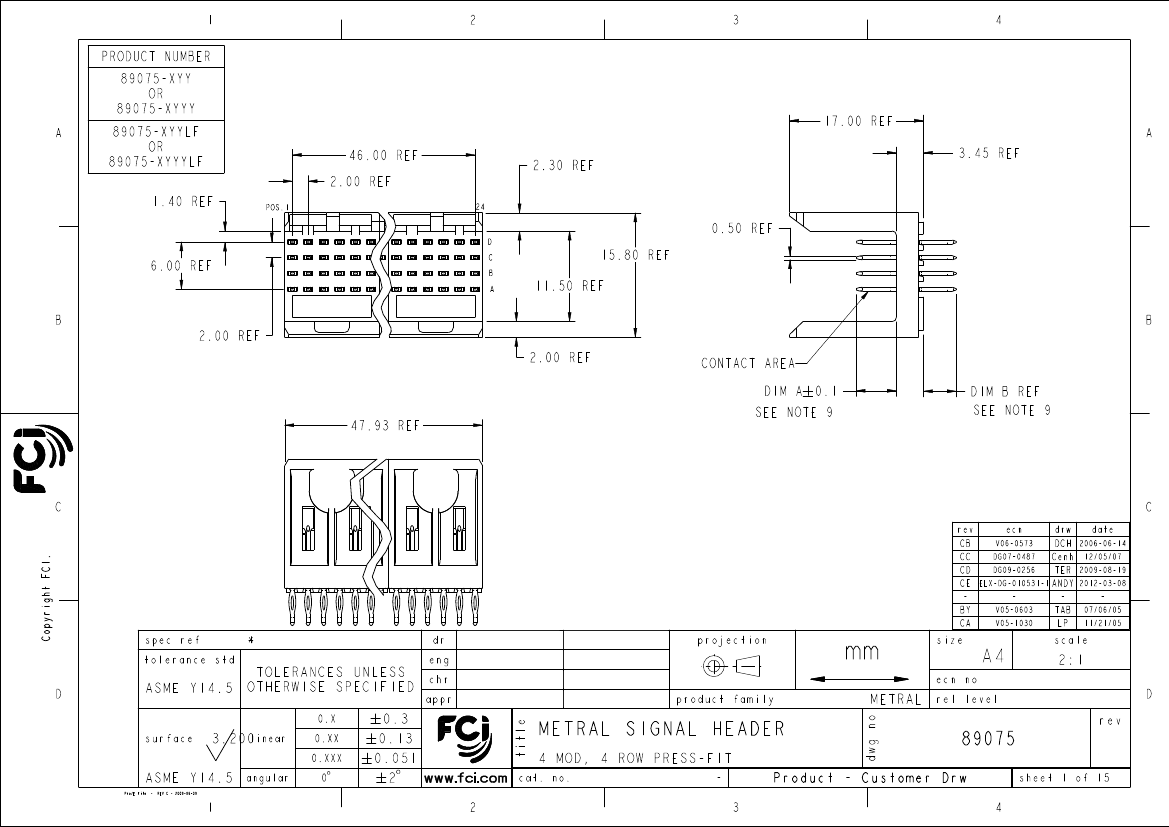

Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug

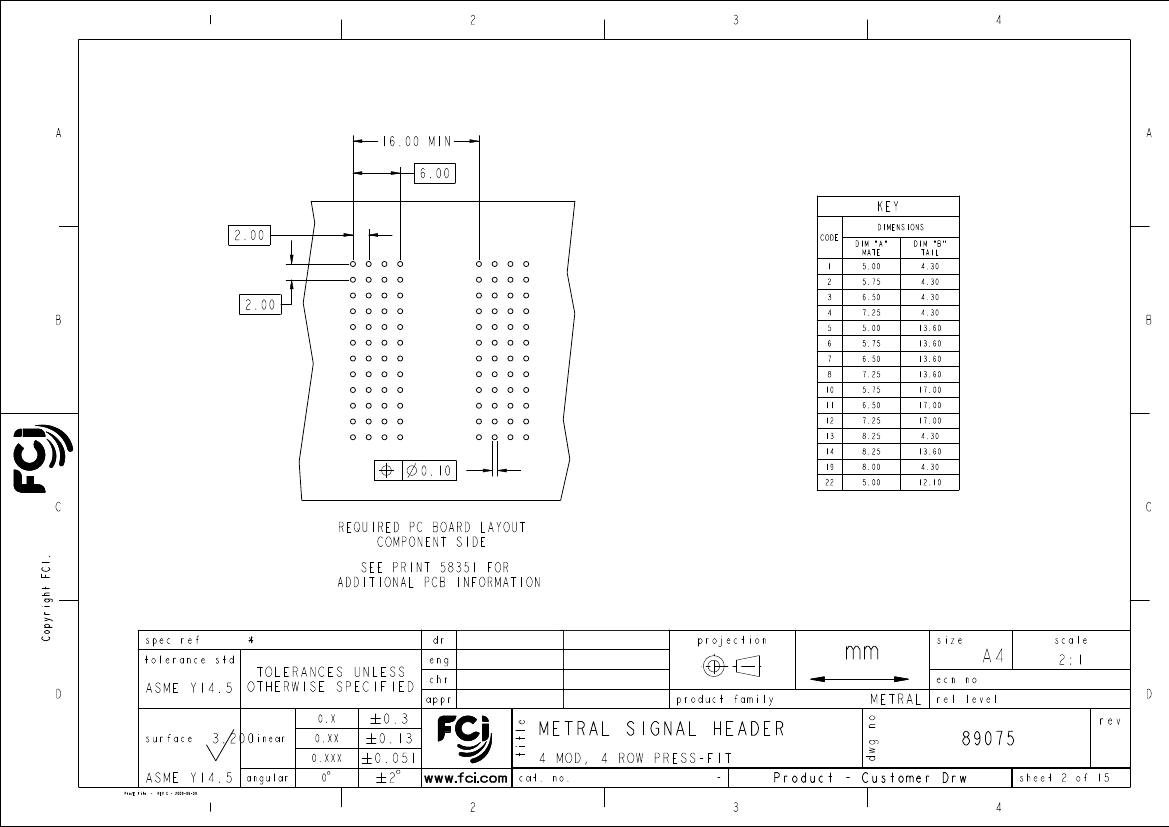

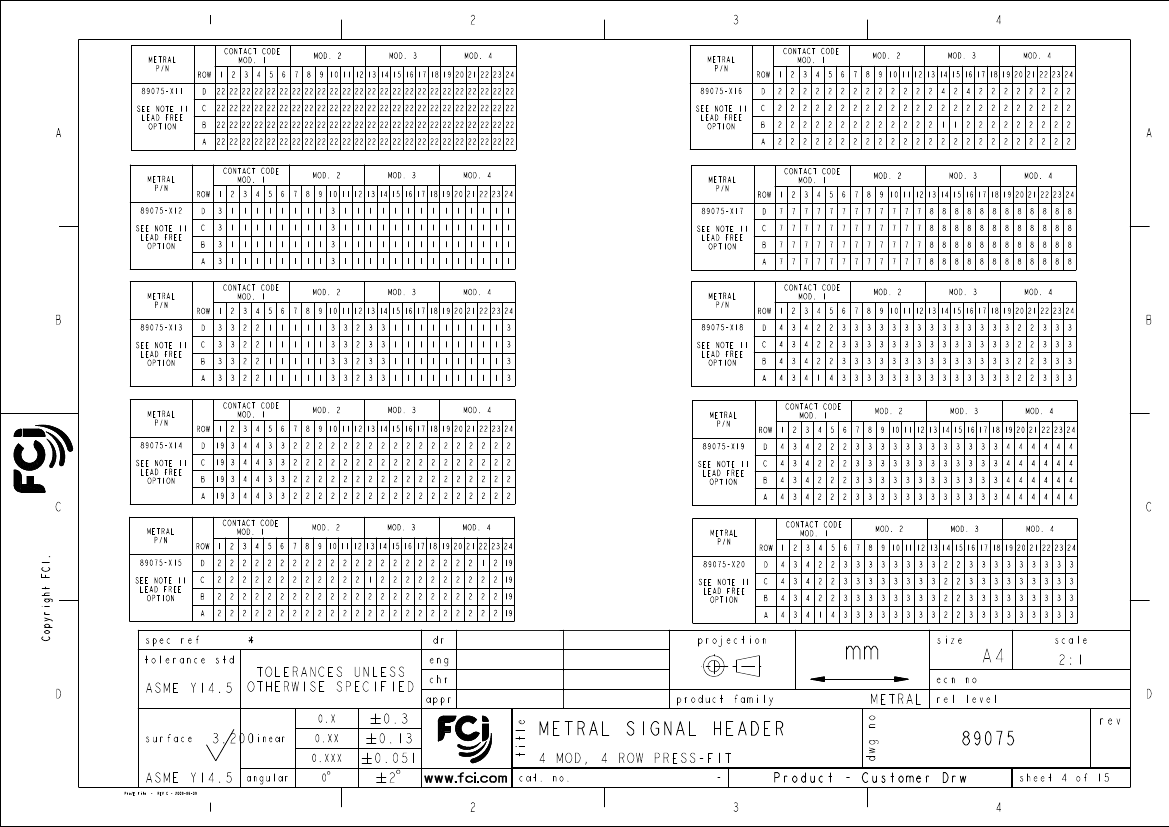

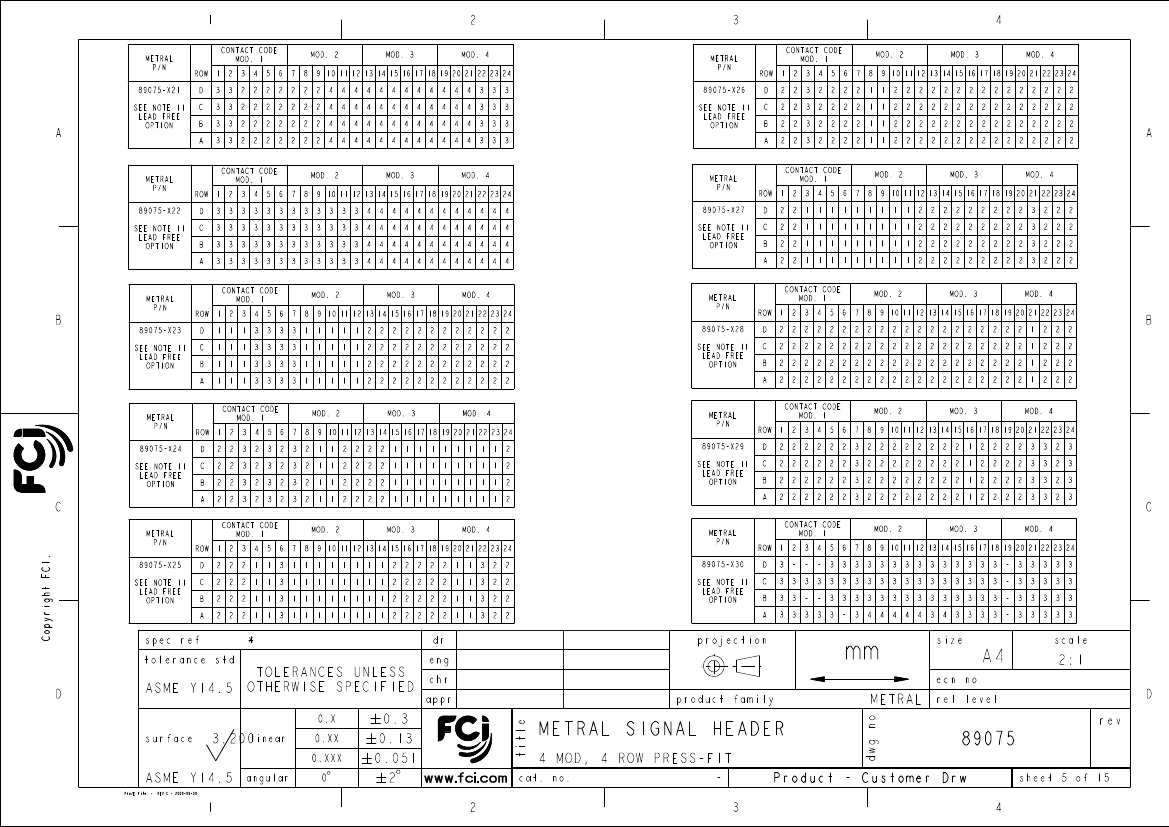

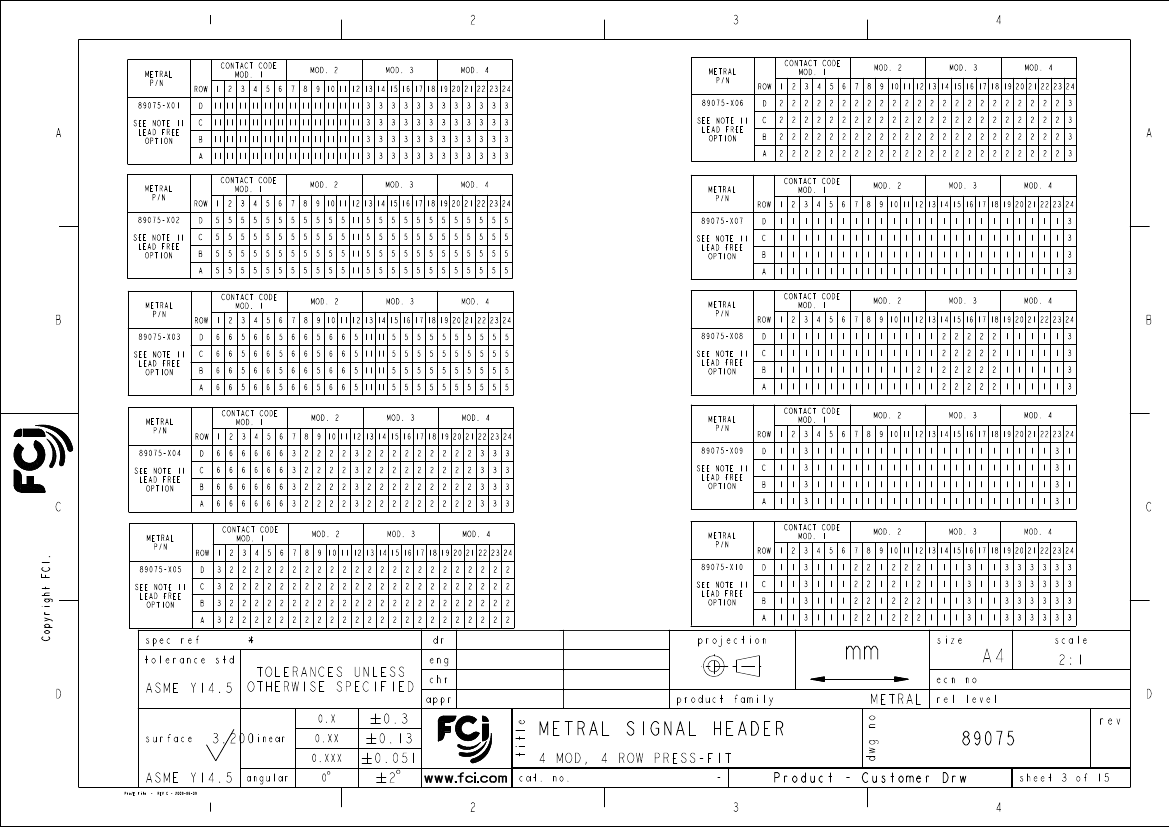

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| Board mount options | PEG |
| body width | 0.622 inch |
| subject depth | 0.669 inch |
| body length | 1.887 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .3614 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 89075 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 96 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .14734 N |
| Base Number Matches | 1 |
| 89075-160 | 89075-192LF | 89075-192 | 89075-193LF | 89075-193 | 89075-195LF | 89075-198LF | 89075-159 | 89075-161 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug |
| Is it lead-free? | Contains lead | Lead free | Contains lead | Lead free | Contains lead | Lead free | Lead free | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | conform to | incompatible | conform to | incompatible | conform to | conform to | incompatible | incompatible |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED |
| Board mount options | PEG | PEG | PEG | PEG | PEG | PEG | PEG | PEG | PEG |
| body width | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch |
| subject depth | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch |
| body length | 1.887 inch | 1.887 inch | 1.887 inch | 1.887 inch | 1.887 inch | 1.887 inch | 1.887 inch | 1.887 inch | 1.887 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | TIN LEAD | TIN LEAD |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | Tin (Sn) | Tin/Lead (Sn/Pb) | Tin (Sn) | Tin/Lead (Sn/Pb) | Tin (Sn) | Tin (Sn) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N | .3614 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 | e3 | e0 | e3 | e0 | e3 | e3 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 96 | 96 | 96 | 96 | 96 | 96 | 96 | 96 | 96 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N | .14734 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Manufacturer's serial number | 89075 | - | 89075 | - | 89075 | 89075 | 89075 | 89075 | 89075 |
| Is Samacsys | - | N | N | N | N | N | N | - | - |
