LD1807F-S58QD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LD1807F-S58QD

LD1807F-S58QD: DescriptionTelecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

LD1807F-S58QD Overview

Telecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT

LD1807F-S58QD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.254 inch
subject depth	0.331 inch
body length	0.634 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	ORANGE
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	LD
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.4986 mm
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.081 inch
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

LD1807F-S58QD Preview

Download Datasheet

View All

SPECIFICATIONS

S-ATA Connector

LD Seri es

T/ H,Vertical Type

Plug

1.27mm [.050"] Pitch

7 Pos.

Mechanical

Insertion Force:

45N max.

Withdrawal Force:

10N min.

Durability:

50 Cycles.

Electrical

Voltage Rating:

250V.

Current Rating:

1.5A per pin.

Contact Resistance:

30 m

Ω

max.,

∆

15 m

Ω

max. after stress.

Dielectric Withstanding Voltage:

1000V AC.

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rating.

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”.

Operating Temperature:

-55

℃

to +85

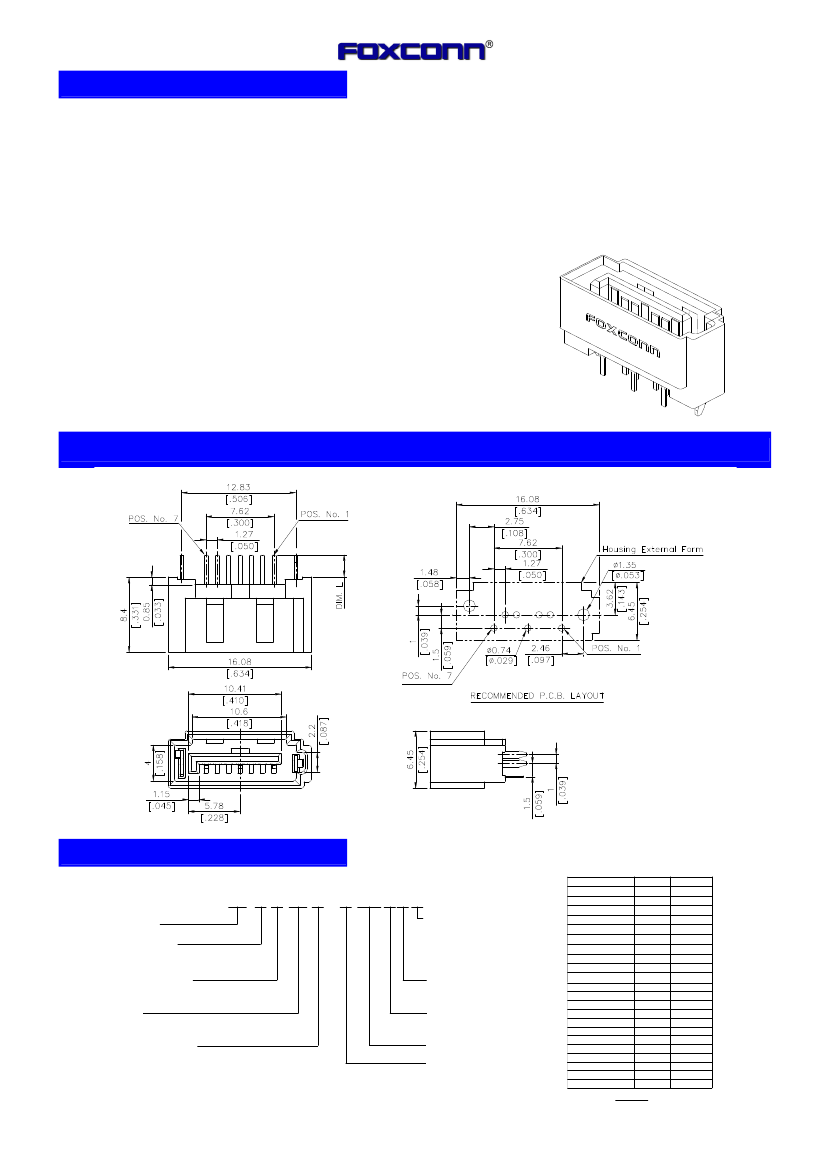

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO. : LD 1 8 07 * - S 5 8 * * *

S-ATA Series

Mating End Type

1=Host Plug

P a rt N o .

L D 1 8 0 7 *-S 5 8 * *

L D 1 8 0 7 *-S 5 8 P * *

L D 1 8 0 7 *-S 5 8 B * *

L D 1 8 0 7 *-S 5 8 W **

L D 1 8 0 7 *-S 5 8 T **

L D 1 8 0 7 *-S 5 8 Z **

L D 1 8 0 7 *-S 5 8 A * *

L D 1 8 0 7 *-S 5 8 F **

L D 1 8 0 7 *-S 5 8 R **

L D 1 8 0 7 *-S 5 8 J **

L D 1 8 0 7 *-S 5 8 U **

L D 1 8 0 7 *-S 5 8 Z **

L D 1 8 0 7 *-S 5 8 D **

L D 1 8 0 7 *-S 5 8 1 **

L D 1 8 0 7 *-S 5 8 4 **

L D 1 8 0 7 *-S 5 8 5 **

L D 1 8 0 7 * -S 5 8 6 **

L D 1 8 0 7 * -S 5 8 S **

L D 1 8 0 7 * -S 5 8 G **

L D 1 8 0 7 *-S 5 8 Q * *

L D 1 8 0 7 * -S 5 8 N * *

L D 1 8 0 7 *-S 5 8 Y * *

M a te ria l

LC P

PBT

PA9T

P A 66

PA66

PA9T

PBT

PA9T

PA66

PA9T

PA66

P A 66

C o lo r

B la c k

B lu e

W h ite

B la c k

B lu e

B la c k

Red

O ra n g e

B lu e

Iv o ry

B e ig e

B lu e

Red

O ra n g e

W h ite

O ra n g e

L ig h t B lu e

B e ig e

Tail Length

NONE : DIM. L=2.45mm

B: DIM. L=2.85mm

C: DIM. L=3.25mm

D: DIM. L=2.05mm

Mounting End Type

8=T/H,Vertical

Package Type

1/NONE=Tray

No. of Pos.

07=7 Pos.

Housing Material

See Figture A

Contact Area Plating

F=Gold Flash Plating With RoHS Compliance

H=30u" Gold Plating With RoHS Compliance

V=15u" Gold Plating With RoHS Compliance

Modification Code

S-ATA

F ig tu re A

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
