KX15-20-C datasheet, PDF - EEWORLD Datasheet

KX15-20-C: DescriptionBoard Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,; CategoryThe connector The connector; File Size350KB，5 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

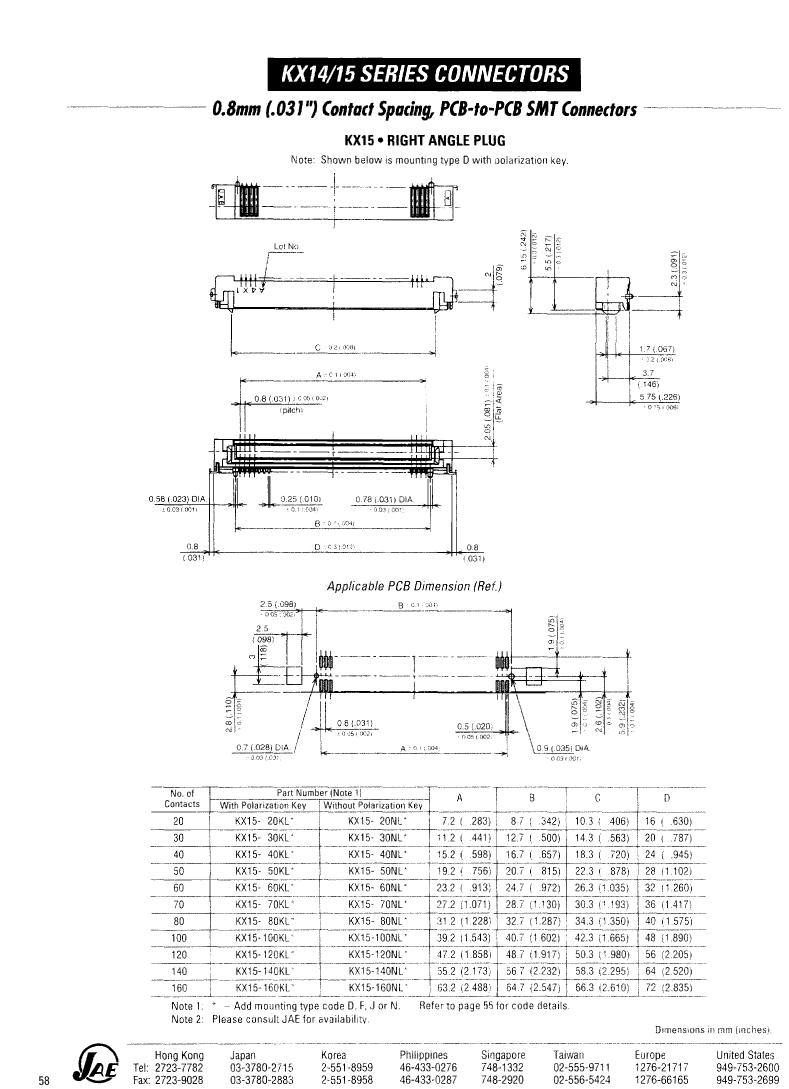

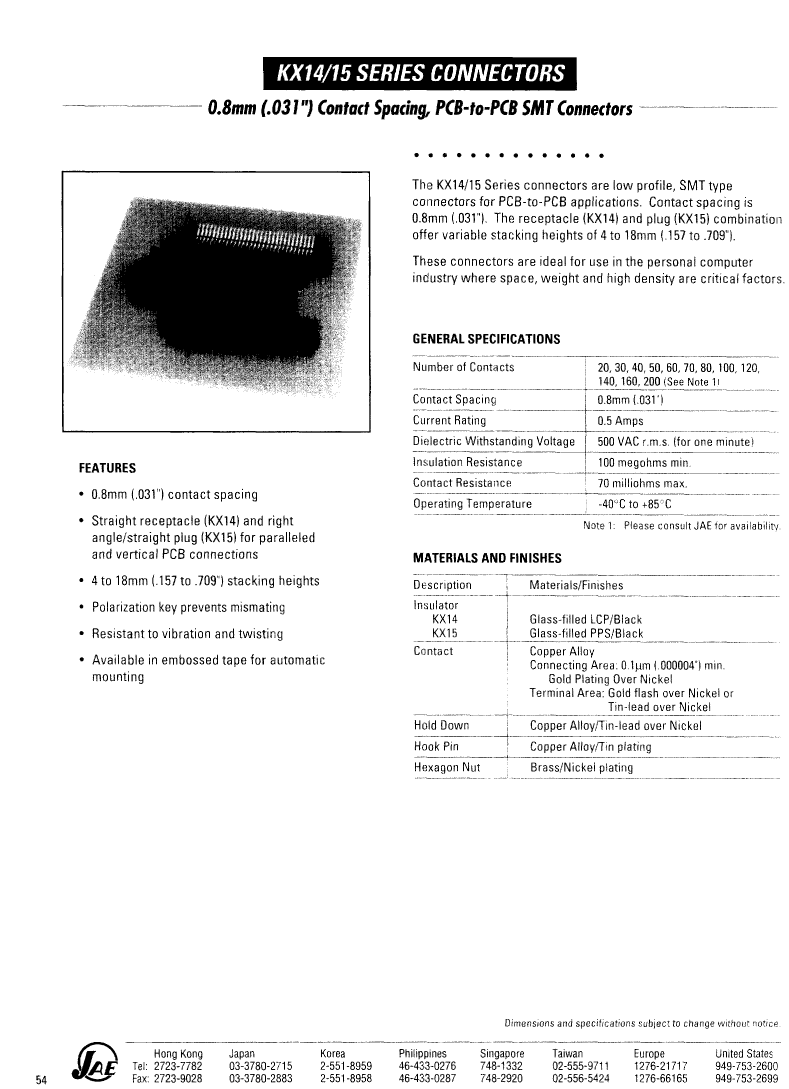

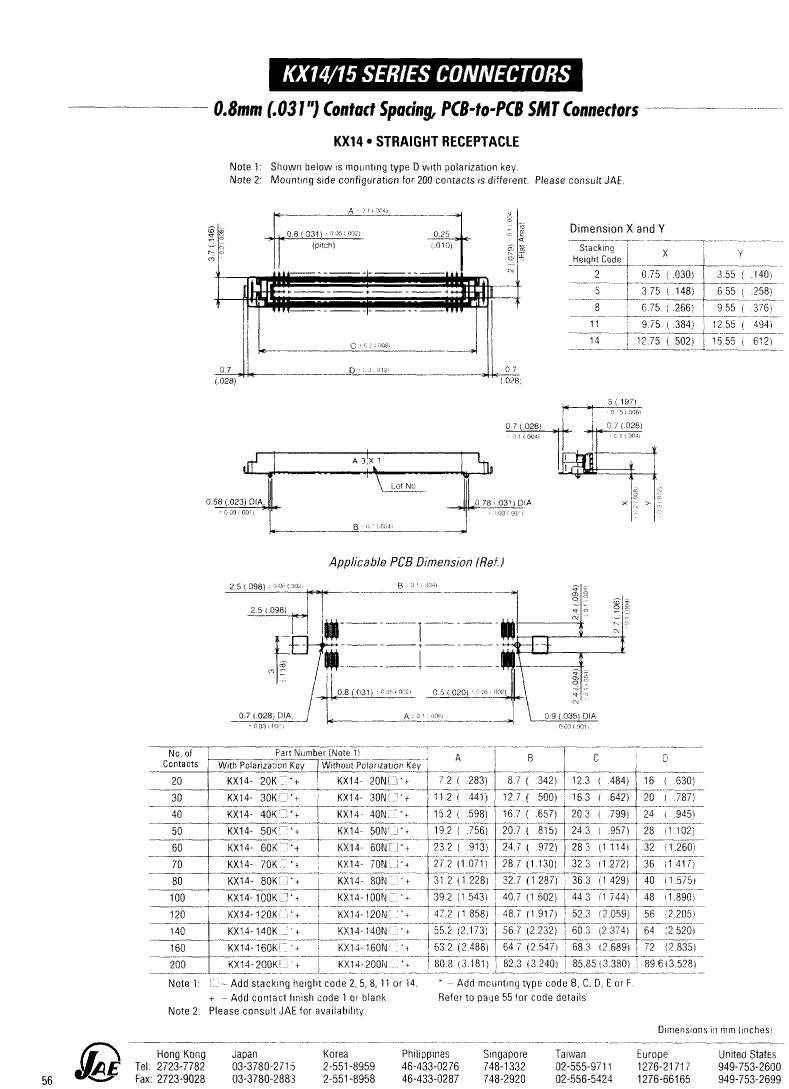

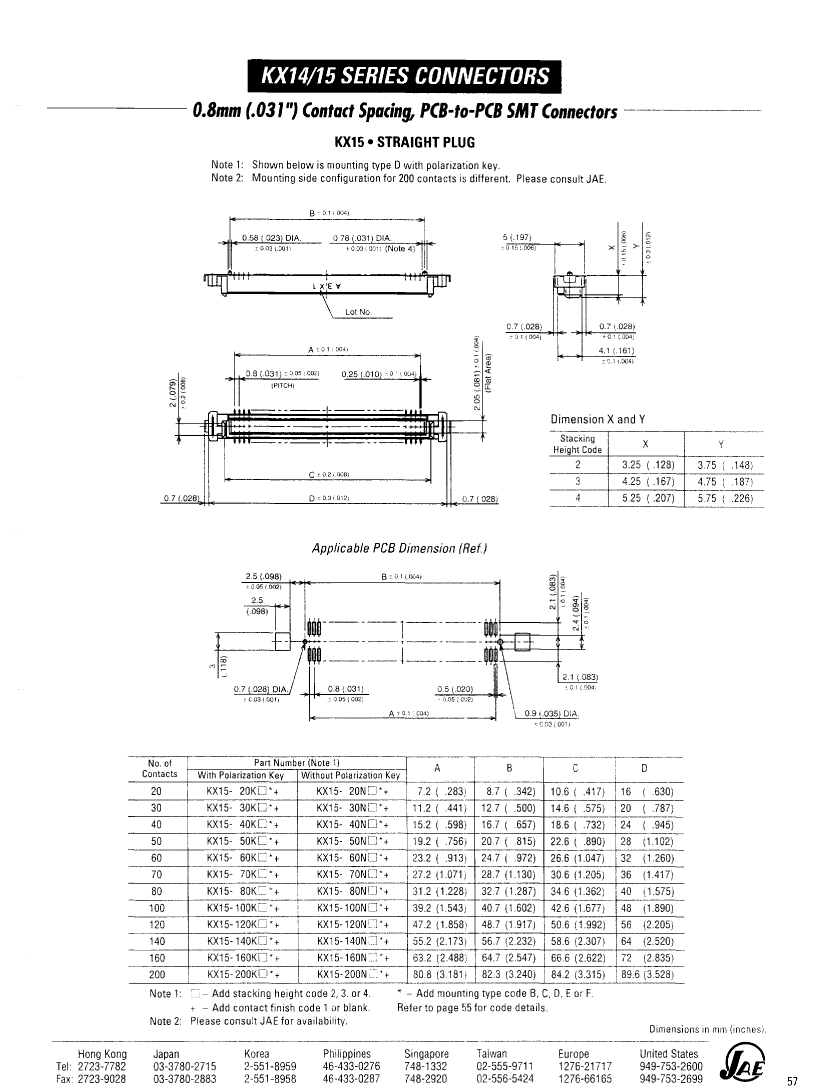

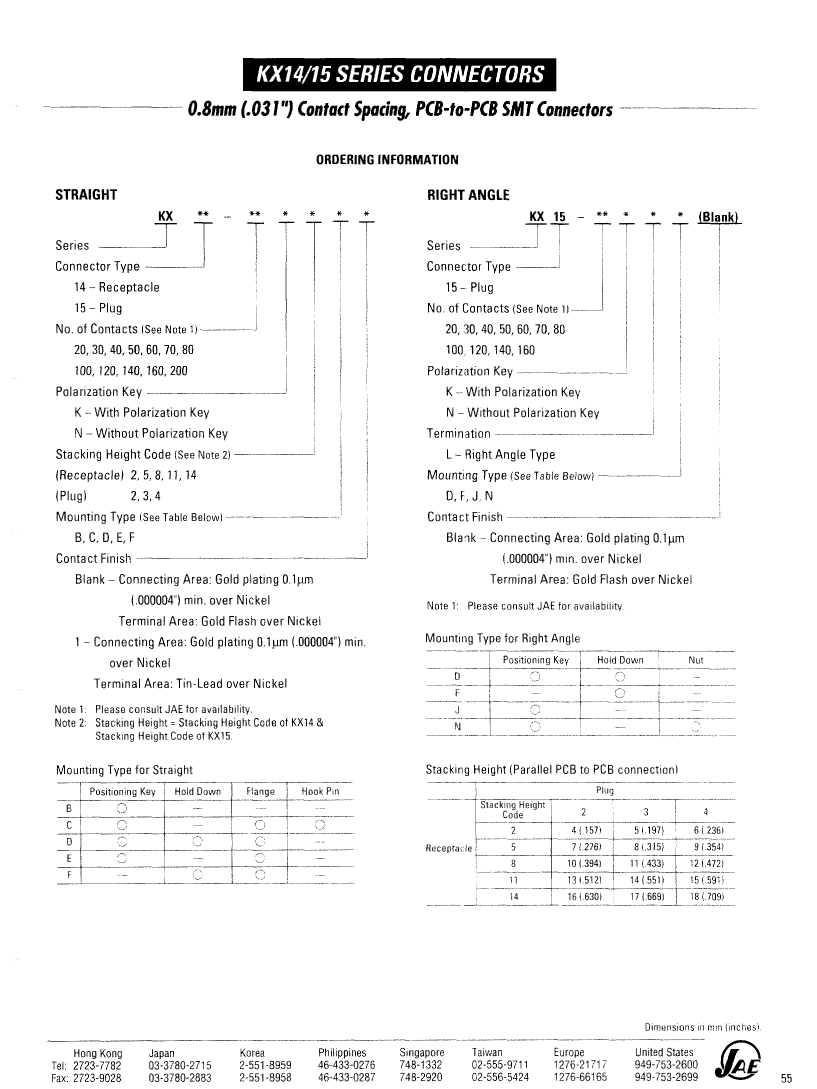

KX15-20-C Overview

Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Other features	LOW PROFILE, POLARIZATION AVAILABLE
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KX15
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1
