8609.348.11.13.768.000.E1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8609.348.11.13.768.000.E1

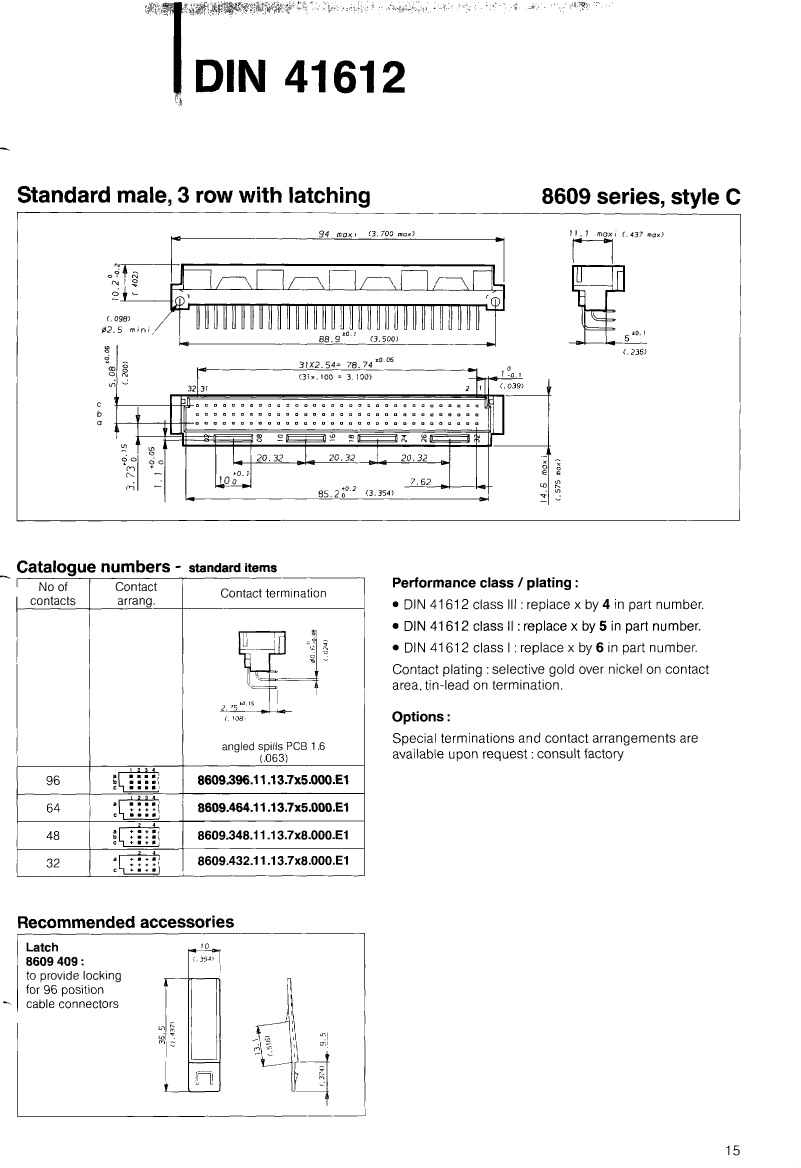

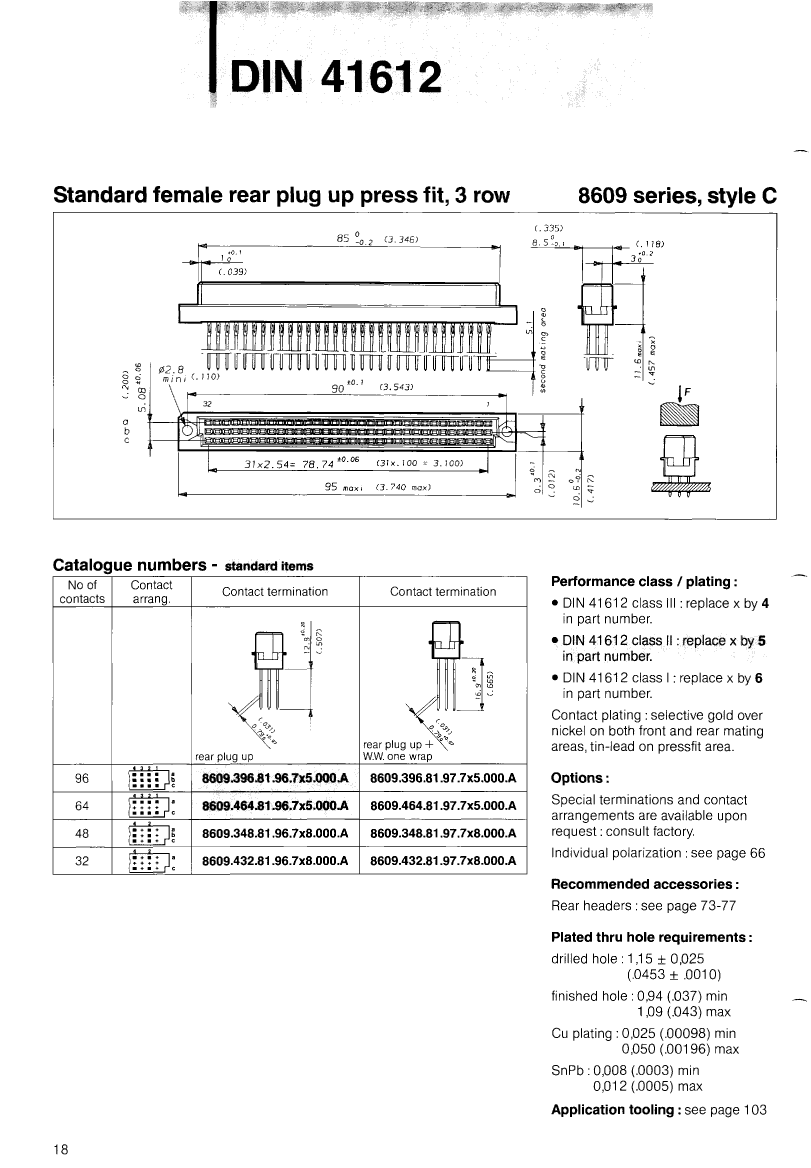

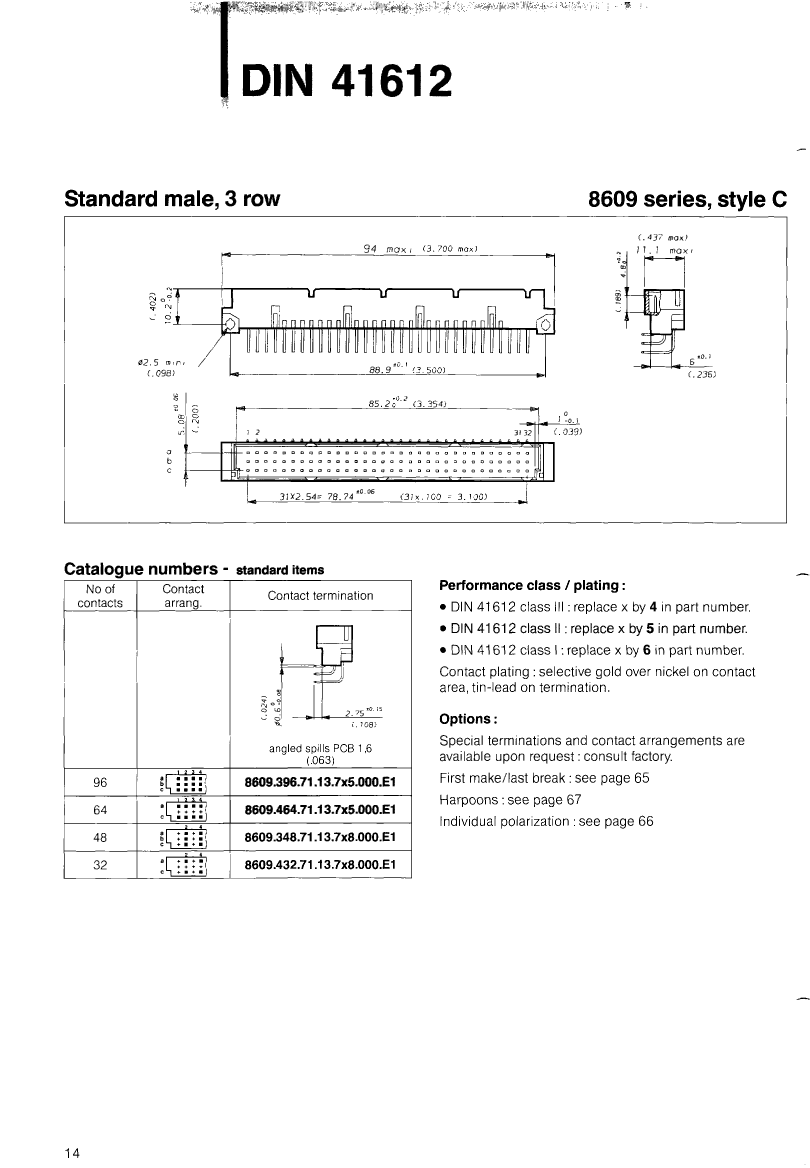

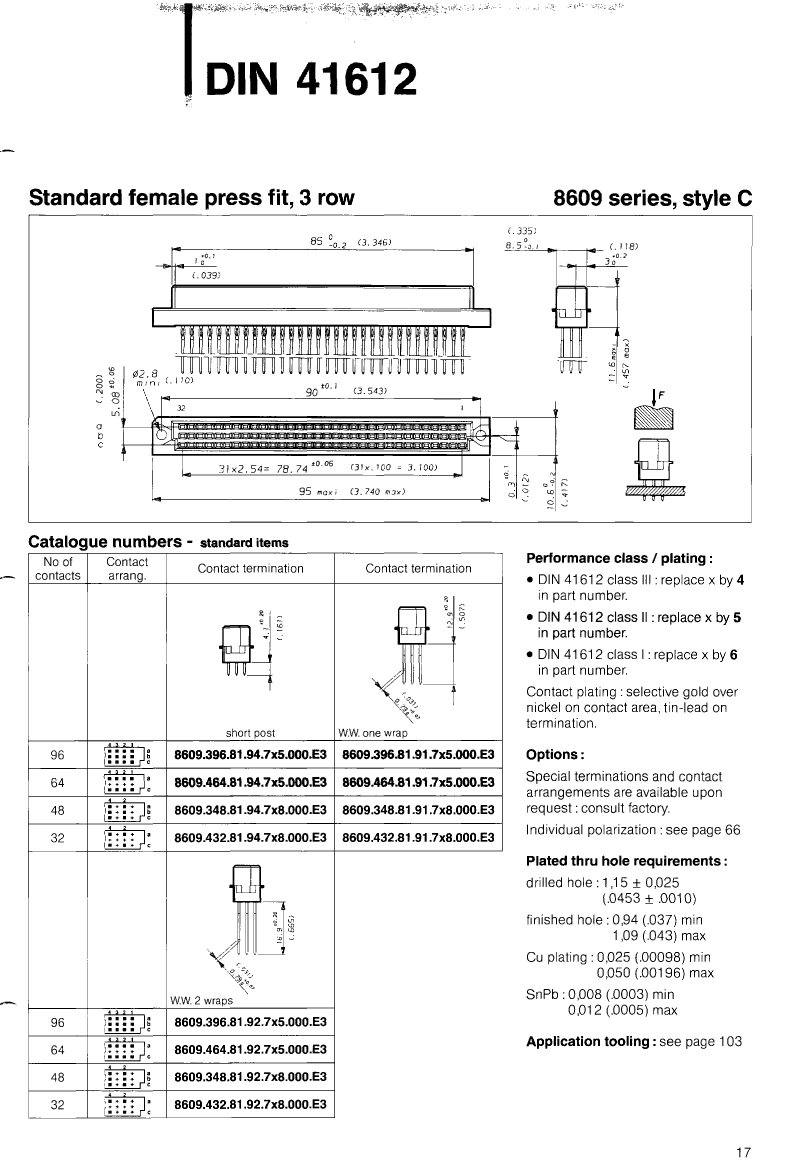

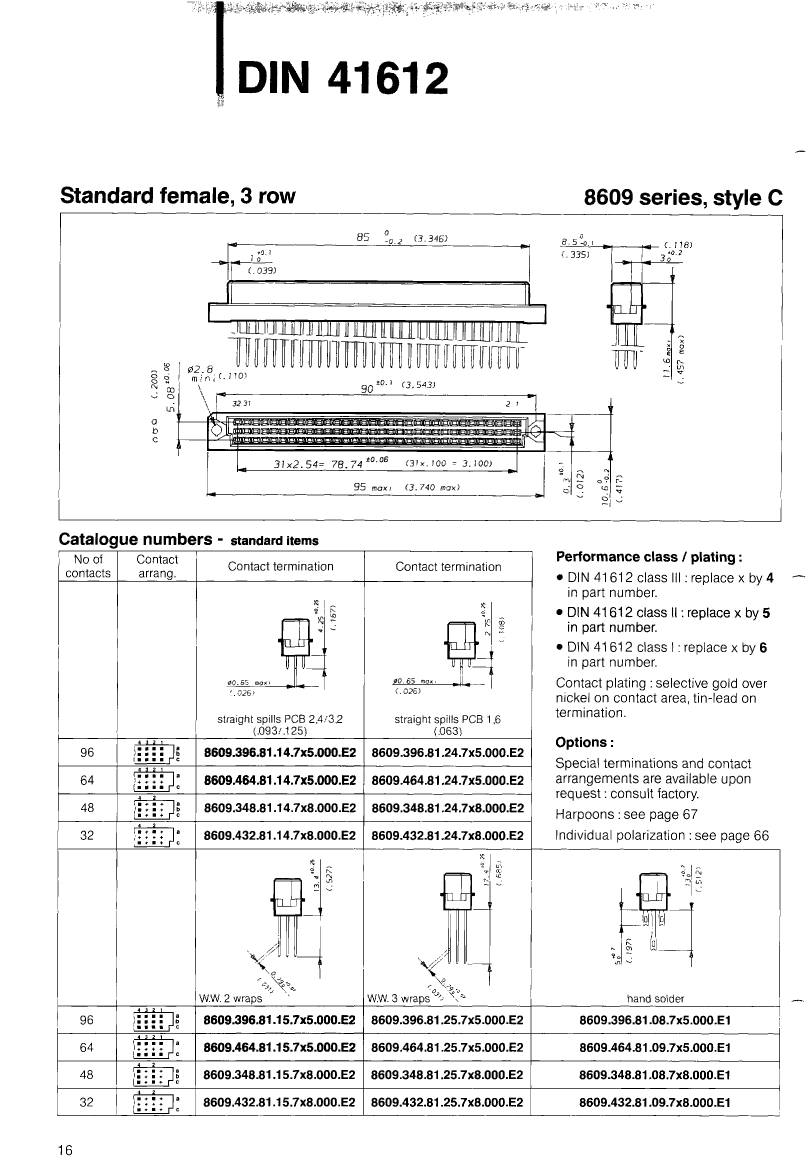

Preview

8609.348.11.13.768.000.E1: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size227KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609.348.11.13.768.000.E1 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal

8609.348.11.13.768.000.E1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e0
MIL compliance	YES
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

8609.348.11.13.768.000.E1 Related Products

	8609.348.11.13.768.000.E1	8609.464.11.13.755.000.E1	8609.432.11.13.768.000.E1	8609.348.11.13.748.000.E1	8609.432.11.13.748.000.E1
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED	STANDARDS: MIL-C-55302; DIN 41612; IEC 603 1-2, POLARIZED
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
MIL compliance	YES	YES	YES	YES	YES
Manufacturer's serial number	8609	8609	8609	8609	8609
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	2	2	3	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	5.08 mm	2.54 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	48	64	32	48	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	-	-	Amphenol	Amphenol
Base Number Matches	1	1	1	1	-
