T3105100 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> T3105100

Preview

T3105100: DescriptionCircular Connector, 7 Contact(s), Polyamide66, Female, Solder Terminal; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

T3105100 Overview

Circular Connector, 7 Contact(s), Polyamide66, Female, Solder Terminal

T3105100 Parametric

Parameter Name	Attribute value
Objectid	1459622273
Reach Compliance Code	unknown
Other features	1 GROUND CONTACT AVAILABLE
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
insulator material	POLYAMIDE66
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	7

Preview

Download Datasheet

View All

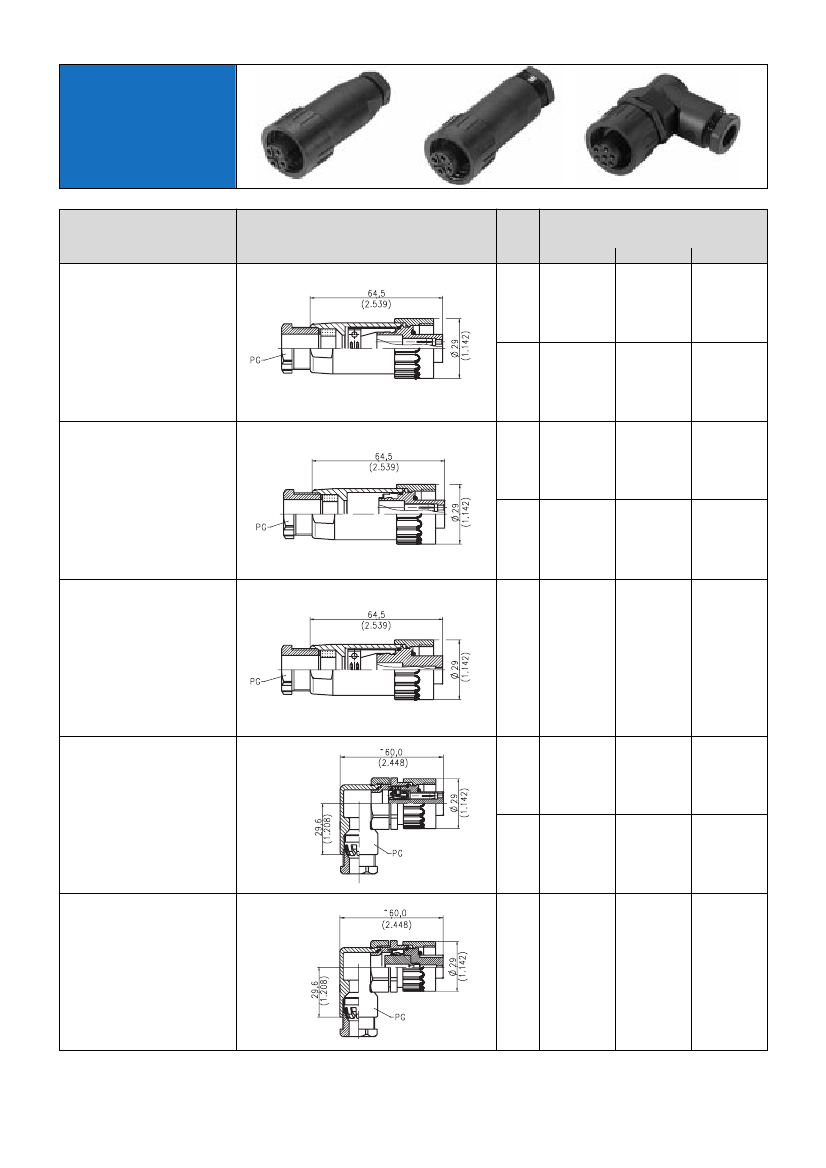

C 16-1

Female cable connectors

Description

Drawing

No. of

cont.

PG 9

Part No.

Cable outlet

2)

PG 11

PG 13,5

Female cable connector, 3+PE

screw, 6+PE solder termination,

with strain relief, VDE test

certificate of conformity

3 + PE

T 3109 001

T 3109 101

T 3109 200

(with clamping

ring)

6 + PE

T 3105 001

T 3105 101

T 3105 200

Female cable connector, 3+PE

screw, 6+PE solder termination,

without strain relief

3 + PE

T 3109 000

T 3109 100

T 3109 200

6 + PE

T 3105 000

T 3105 100

T 3105 200

Female cable connector, crimp

version without contacts

1)

, with

strain relief, VDE test certificate

of conformity

6 + PE

T 3105 501

T 3105 601

T 3105 701

(with clampin

ring)

Female cable connector,

right-angled, 3+PE screw,

6+PE solder termination,

with clamping ring,

VDE test certificate of conformity

3 + PE

T 3109 081

T 3109 091

–

6 + PE

T 3105 081

T 3105 091

–

Female cable connector,

right-angled, crimp version,

without contacts

1)

,

with clamping ring,

VDE test certificate

with supervision of production

6 + PE

T 3105 581

T 3105 591

–

Please order crimp contacts separatly, see page 30/31.

Cable outlet in mm, see page 32.

14

1)

2)

Amphenol
