D15P34A4GV00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15P34A4GV00

D15P34A4GV00: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15P34A4GV00 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal

D15P34A4GV00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	D15P34A4GV00
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

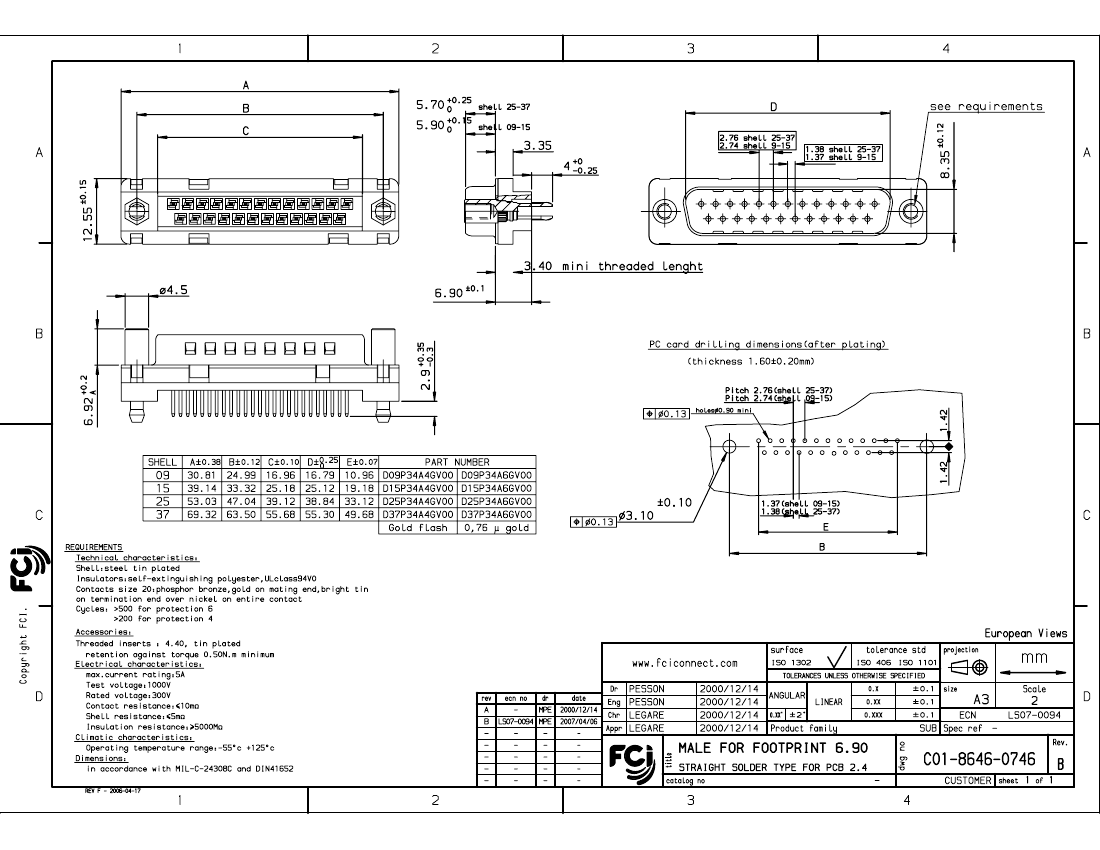

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Jan 18, 2011

D15P34A4GV00 Related Products

	D15P34A4GV00	D25P34A6GV00	D25P34A4GV00	D37P34A6GV00	D37P34A4GV00	D15P34A6GV00	D09P34A4GV00	D09P34A6GV00
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D15P34A4GV00	D25P34A6GV00	D25P34A4GV00	D37P34A6GV00	D37P34A4GV00	D15P34A6GV00	D09P34A4GV00	D09P34A6GV00
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	3/B	3/B	4/C	4/C	2/A	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	25	37	37	15	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	-	-
