M83723/71W16108: DescriptionMIL Series Connector, 10 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size244KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M83723/71W16108 Overview

MIL Series Connector, 10 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

M83723/71W16108 Parametric

Parameter Name	Attribute value
Objectid	1929494873
Reach Compliance Code	unknown
YTEOL	8.5
Other features	STANDARD: MIL-C-83723, COMPATIBLE CONTACT: M39029/5-116
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M83723
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	10

Preview

Download Datasheet

View All

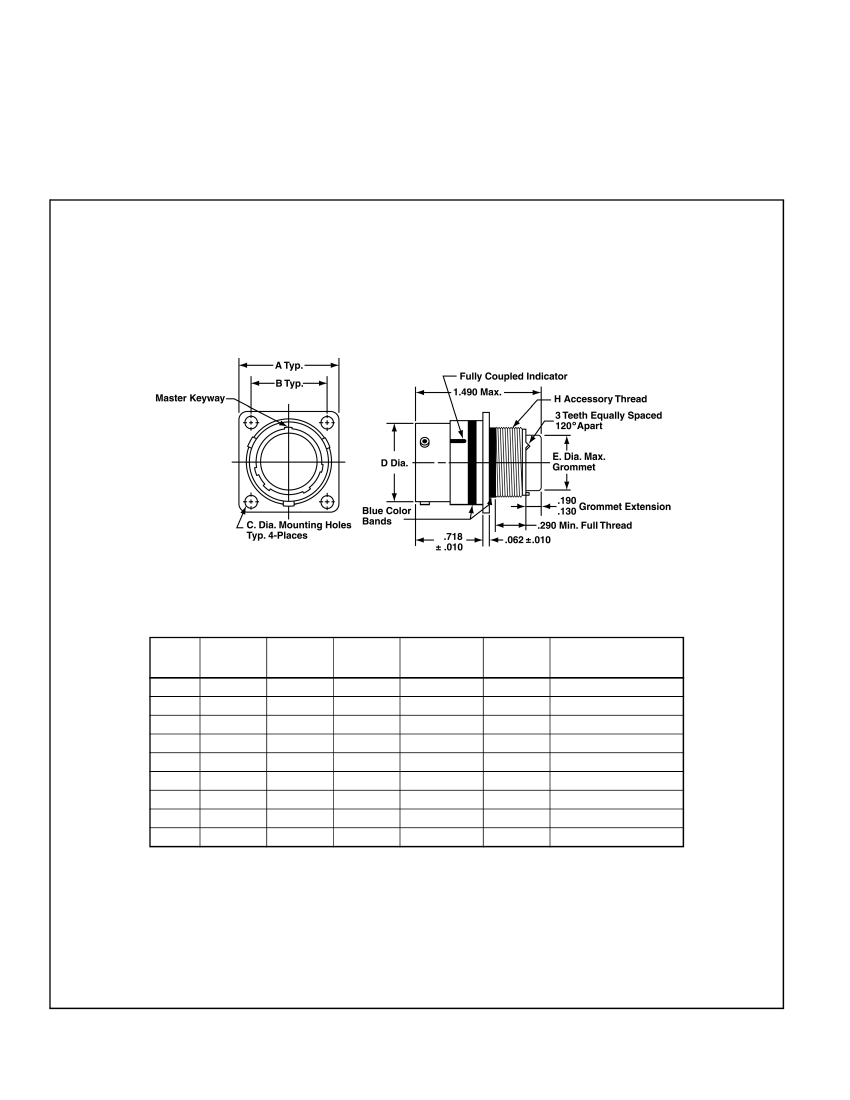

Miniature Cylindrical MIL-C-83723, Series III

Bayonet Coupling

M83723/71 & 72

wall mounting receptacle

Receptacle Shell, Square Flange Wall Mount,

Bayonet Coupling

Military No. M83723/71 with socket contacts

M83723/72 with pin contacts

Amphenol/Matrix No. MB30

To complete order number see how to order for bayonet coupling connectors, page 9.

H

Accessory Thread

Class 2A

Shell

Size

A

±.005

B

±.005

C Dia.

±.005

D

Dia.

E

Dia.

8

10

12

14

16

18

20

22

24

.812

.937

1.031

1.125

1.250

1.343

1.437

1.562

1.703

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

.120

.149

.536/.531

.659/.654

.829/.824

.898/.893

1.025/1.020

1.131/1.126

1.256/1.251

1.381/1.376

1.506/1.501

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

.5000-20 UNF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF
