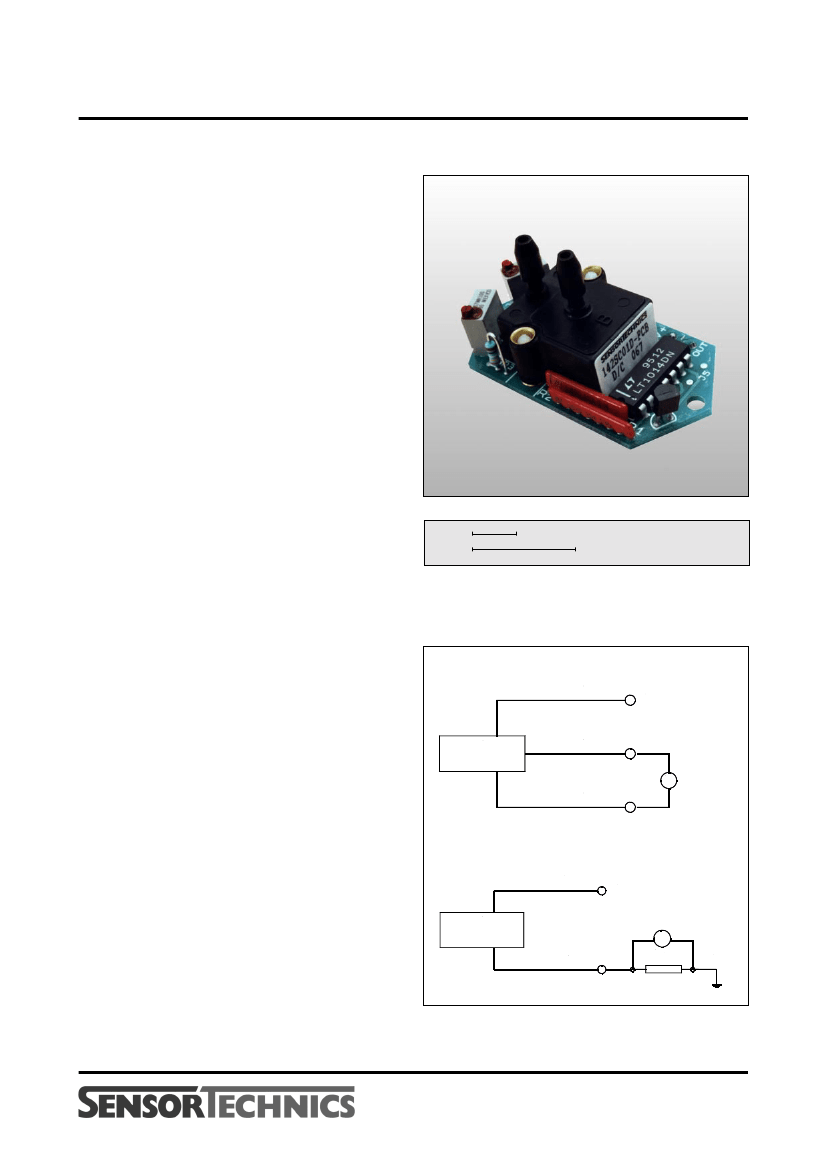

140SC...-PCB / 420SC...-PCB Series
Signal conditioned precision pressure transducers
FEATURES
· 1 to 150 psi
absolute, gage or differential pressure
(custom calibrations available)
· 1...6 V or 4...20 mA output
· Internal supply regulation
· Precision temperature compensated
and calibrated
· Special calibrations for small
volumes on request
SERVICE
Non-corrosive, non-ionic working fluids,
such as dry air and dry gases
Scale:
1 cm
1 inch
SPECIFICATIONS
Maximum ratings
Supply voltage
140SC...-PCB
420SC...-PCB
1
Maximum load current
140SC...-PCB only
Source
Sink
Temperature limits
Storage
Operating
Compensated
Lead temperature
(10 sec. soldering)
Humidity limits
Pressure inlets only
Proof pressure
2
All 1 psi, 3 psi, 5 psi devices
All 15 psi devices
All 30 psi devices
All 100 psi devices
All 150 psi devices
ELECTRICAL CONNECTION
1...6 V output version
7...24 V
12...36 V
+Vs
7 V to 24 V
20 mA
10 mA
-55 to 100°C
-40 to 85°C
0 to 70°C
300°C
0 - 100 %RH
20 psi
30 psi
60 psi
150 psi
200 psi
140SC...-
PCB
Vout
V
-Vs
4...20 mA output version
+Vs
420SC...-
PCB
-Vs
12 V to 36 V
V
RL
GND
March 2006 / 002
1/6
www.sensortechnics.com
140SC...-PCB / 420SC...-PCB Series
Signal conditioned precision pressure transducers
PERFORMANCE CHARACTERISTICS
1 - 6 V output version (unless otherwise noted V
S
= 8 V, R
L
> 100 kΩ, t
amb
= 25°C)
Characteristics
Operating pressure
vacuum gage devices
3
141SC01G-PCB
141SC05G-PCB
141SC15G-PCB
141SC30G-PCB
141SC100G-PCB
142SC01D-PCB
142SC05D-PCB
142SC15D-PCB
142SC30D-PCB
142SC100D-PCB
142SC150D-PCB
142SC15A-PCB
142SC30A-PCB
142SC100A-PCB
143SC01D-PCB
143SC03D-PCB
143SC05D-PCB
143SC15D-PCB
141SC.../142SC...-PCB
143SC...-PCB
141SC.../142SC...-PCB
143SC...-PCB
143SC...-PCB
all 1 psi devices
all others
Min.
-1
-5
-15
-30
-100
0
0
0
0
0
0
0
0
0
-1
-2.5
-5
-15
0.95
3.45
4.95
2.45
5.90
Typ.
Max.
0
0
0
0
0
1
5
15
30
100
150
15
30
100
1
2.5
5
15
1.05
3.55
5.05
2.55
6.10
0.5
±3.0
±1.0
Unit
p si g
differential devices
4
psid(g)
absolute devices
5
p si a
pressure/vacuum devices
4
psid(g)
Zero pressure offset
Full scale span
6
Full scale output
Output at lowest specified pressure
Non-linearity and hysteresis (BSL)
7
Thermal effects
8
Combined offset and span (0 to 70°C)
Long term stability
9
Response time (10 to 90%)
Power supply rejection rate
1.00
3.50
5.00
2.50
6.00
1.00
0.1
±1.5
±0.5
±0.1
0.1
0.05
0.03
V
%FSO
ms
%FSO/V
Offset
Span
2/6
March 2006 / 002
www.sensortechnics.com
140SC...-PCB / 420SC...-PCB Series
Signal conditioned precision pressure transducers
PERFORMANCE CHARACTERISTICS
4 - 20 mA output version (unless otherwise noted V
S
= 15 V, R
L
= 100
Ω,
t
amb
= 25°C)
Characteristics
Operating pressure
differential devices
4
420SC01D-PCB
420SC05D-PCB
420SC15D-PCB
420SC30D-PCB
420SC100D-PCB
420SC150D-PCB
420SC15A-PCB
420SC30A-PCB
420SC100A-PCB
423SC01D-PCB
423SC03D-PCB
423SC05D-PCB
423SC15D-PCB
420SC...-PCB
423SC...-PCB
420SC...-PCB
423SC...-PCB
423SC...-PCB
Min.
0
0
0
0
0
0
0
0
0
-1
-2.5
-5
-15
3.9
11.9
15.8
7.9
Typ.
Max.
1
5
15
30
100
150
15
30
100
1
2.5
5
15
4.1
12.1
16.2
8.1
Unit
psid(g)
absolute devices
5
p si a
pressure/vacuum devices
4
p si d
Zero pressure offset
Full scale span
6
Full scale output
Output at lowest specified pressure
Non-linearity and hysteresis (BSL)
7
Thermal effects
8
Combined offset and span
(0 to 70°C)
(-40 to 0°C, 70 to 100°C)
Repeatability
Long term stability
9
Output noise
Response time (10 to 90%)
Power supply rejection rate
4.0
12.0
16.0
8.0
20.0
4.0
±0.1
mA
±0.5
all 1 psi devices
all others
±1.5
±0.5
±2.0
±0.1
±0.1
±0.04
0.1
0.05
0.03
±3.0
±1.5
%FSO
ms
%FSO/V
Offset
Span
Specification notes:
1.
The minimum supply voltage is directly proportional to the load resistance seen by the transmitter. For more details see the
load limitation diagram.
2.
Proof pressure is the maximum pressure which may be applied without causing damage to the sensing element.
3.
The output signal of all 141SC...-PCB devices is proportional to the vacuum applied to port B, relative to port A, e. g. the output
signal increases when pressure is applied to port A relative to port B.
4.
The output signal of all 142SC...D-PCB and 143SC...D-PCB devices is proportional to the pressure applied to port B, relative to
port A, e.g. the output signal increases when vacuum is applied to port A relative to port B.
5.
The output signal of all 142SC...A-PCB is proportional to the pressure applied to port A.
6.
Full scale span is the algebraic difference between the positive full scale output and the zero pressure offset.
7.
Non-linearity refers to the
Best Straight Line
fit measured for offset pressure, full scale pressure and 1/2 full scale pressure.
8.
Thermal effects tested and guaranteed from 0 - 70°C relative to 25°C. All specifications shown are relative to 25°C.
9.
Change in output after one year or 1 million pressure cycles.
March 2006 / 002
3/6
www.sensortechnics.com
140SC...-PCB / 420SC...-PCB Series
Signal conditioned precision pressure transducers
OUTPUT CHARACTERISTICS
1 - 6 V output versions
Vacuum gage devices
14
1
SC...-PCB
6
Vout
5
V
4
3
2
1
1 - 6 V output versions
Differential devices
14
2
SC...-PCB
6
Vout
5
V
4
3
2
1
-100
-80
-60
-40
-20
0
% full scale pressure (vacuum)
0
20
40
60
80
100
% full scale pressure
1 - 6 V output versions
Pressure/vacuum devices
14
3
SC...-PCB
4 - 20 mA output versions
Differential devices
420SC...-PCB
6
Vout
5
V
4
3
2
1
0
-100
3.5V
20
Iout
16
mA
12
8
4
-50
0
50
100
% full scale pressure
0
20
40
60
80
100
% full scale pressure
4/6
March 2006 / 002
www.sensortechnics.com
140SC...-PCB / 420SC...-PCB Series
Signal conditioned precision pressure transducers
OUTPUT CHARACTERISTICS
4 - 20 mA output versions
Pressure/vacuum devices
423SC...-PCB
20
Iout
16
mA
12
8
LOAD LIMITATION
4 - 20 mA output versions
1200
Ohm
1000
800
600
400
operating
range
4
200
-100
-50
0
50
100
% full scale pressure
0
10
20
30 V
Vsupply

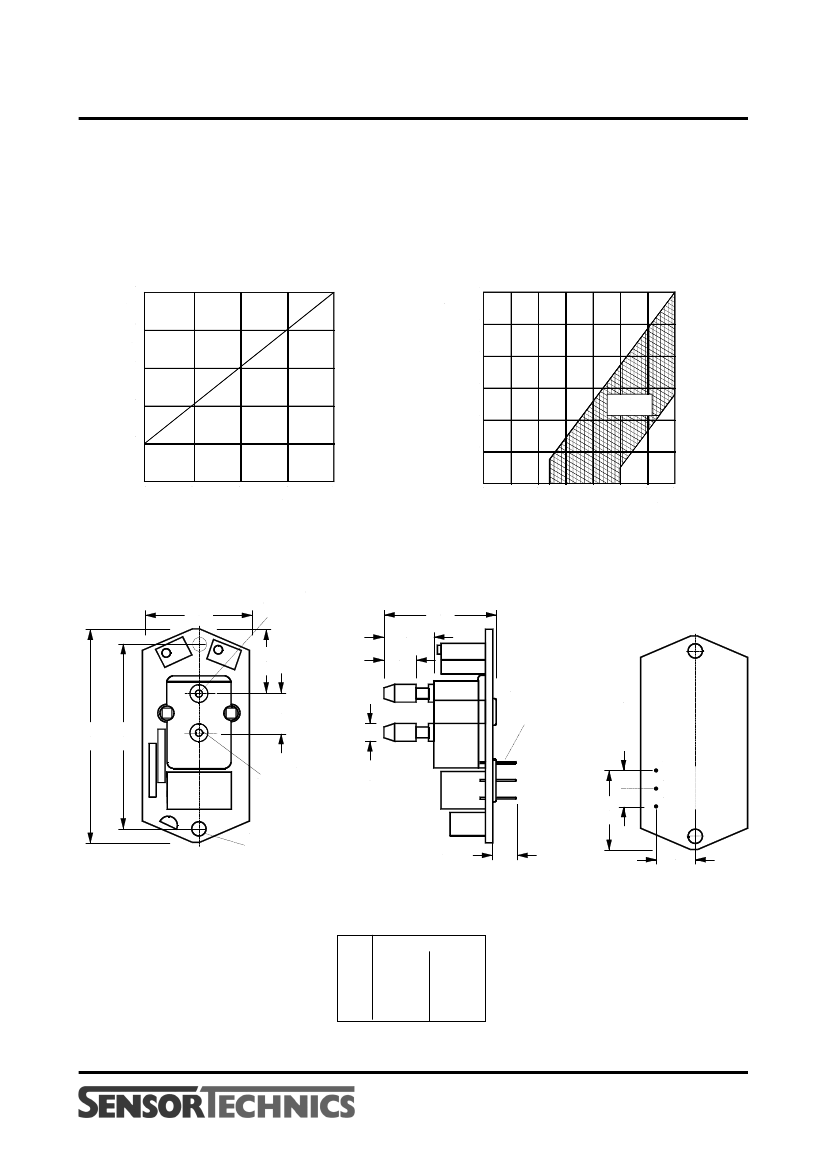

OUTLINE DRAWING
5
30.0
port A
14.0
18.3
30.5
9.1
59.8
52.4
10.7
3 terminals
0.56 diam.
2 x 5.08 typ.
22.7
1
2
3
12.6
dimensions in mm
3,4
port B
4.8
diam.
3.5 diam.
2 x mounting holes
NOM 6.0
mass:
20 g
Pin connection
Connection
1 - 6 V 4 - 20 mA
version
version
Pin
1
+Vs
NC
2
-Vs
-Vs
3
Vout
+Vs
March 2006 / 002
5/6
www.sensortechnics.com
