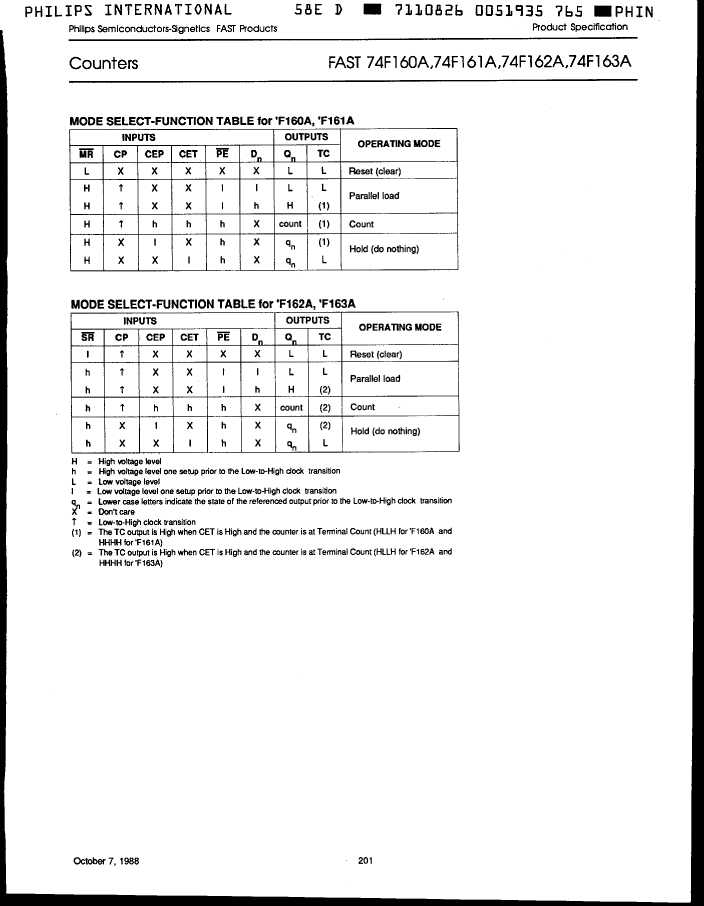

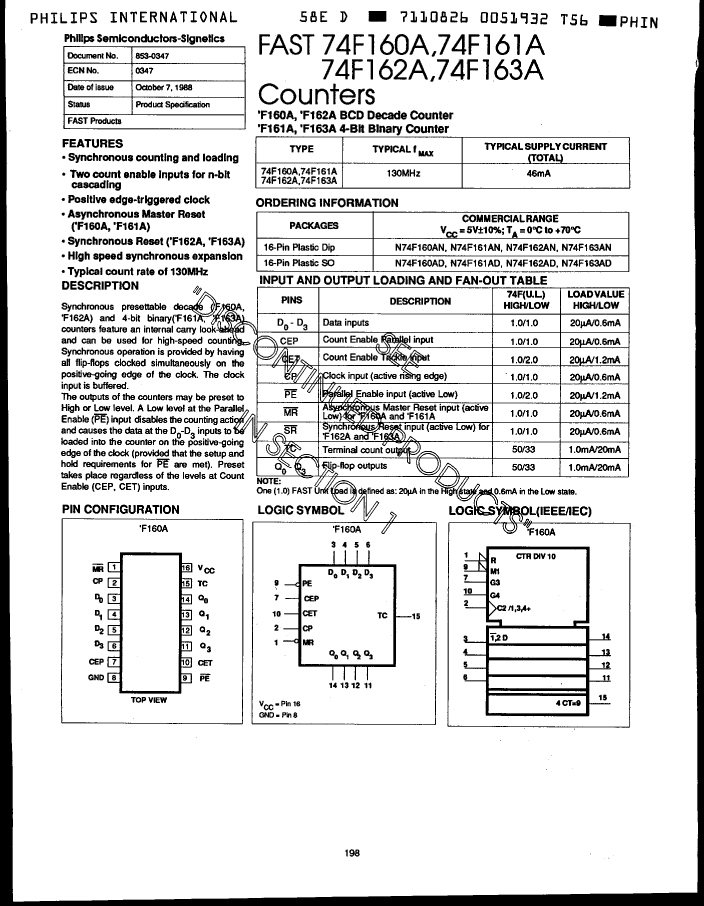

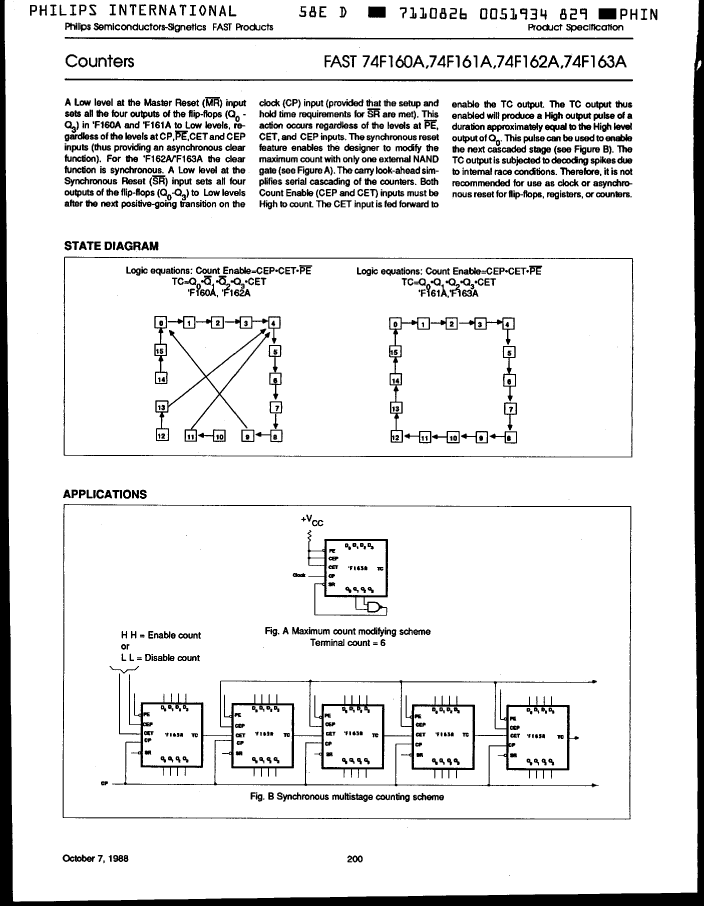

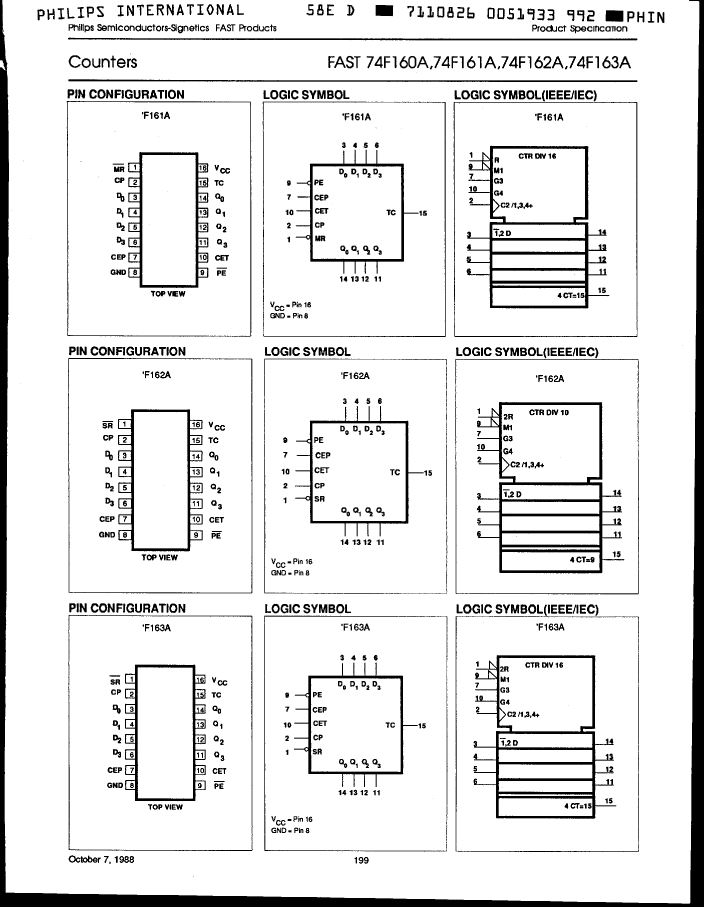

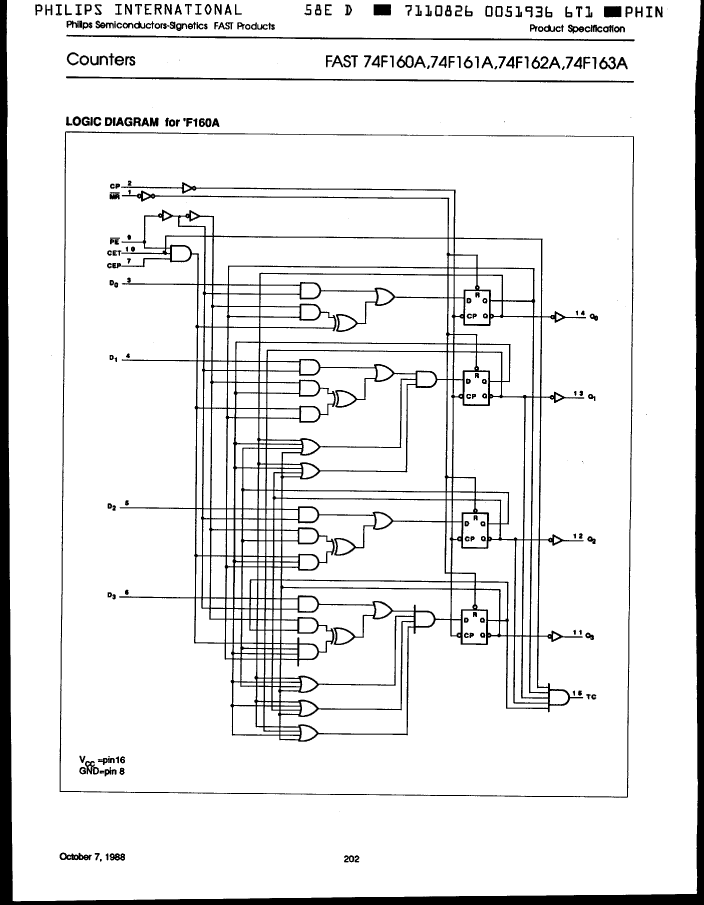

Decade Counter, Synchronous, Up Direction, TTL, PDSO16,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | SOP, SOP16,.25 |
| Reach Compliance Code | unknown |
| Counting direction | UP |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Load/preset input | YES |
| Logic integrated circuit type | DECADE COUNTER |
| Maximum Frequency@Nom-Sup | 90000000 Hz |
| MaximumI(ol) | 0.02 A |
| Operating mode | SYNCHRONOUS |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 65 mA |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| N74F162AD | N74F161AN | N74F160AN | N74F160AD | N74F162AN | |
|---|---|---|---|---|---|
| Description | Decade Counter, Synchronous, Up Direction, TTL, PDSO16, | Binary Counter, Synchronous, Up Direction, TTL, PDIP16, | Decade Counter, Synchronous, Up Direction, TTL, PDIP16, | Decade Counter, Synchronous, Up Direction, TTL, PDSO16, | Decade Counter, Synchronous, Up Direction, TTL, PDIP16, |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | SOP, SOP16,.25 | DIP, DIP16,.3 | DIP, DIP16,.3 | SOP, SOP16,.25 | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Counting direction | UP | UP | UP | UP | UP |
| JESD-30 code | R-PDSO-G16 | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 | R-PDIP-T16 |
| JESD-609 code | e0 | e4 | e0 | e0 | e0 |
| Load/preset input | YES | YES | YES | YES | YES |
| Logic integrated circuit type | DECADE COUNTER | BINARY COUNTER | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER |
| Maximum Frequency@Nom-Sup | 90000000 Hz | 90000000 Hz | 90000000 Hz | 90000000 Hz | 90000000 Hz |
| MaximumI(ol) | 0.02 A | 0.02 A | 0.02 A | 0.02 A | 0.02 A |
| Operating mode | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | DIP | SOP | DIP |
| Encapsulate equivalent code | SOP16,.25 | DIP16,.3 | DIP16,.3 | SOP16,.25 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 65 mA | 65 mA | 65 mA | 65 mA | 65 mA |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Nickel/Palladium/Gold (Ni/Pd/Au) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | - | - |
