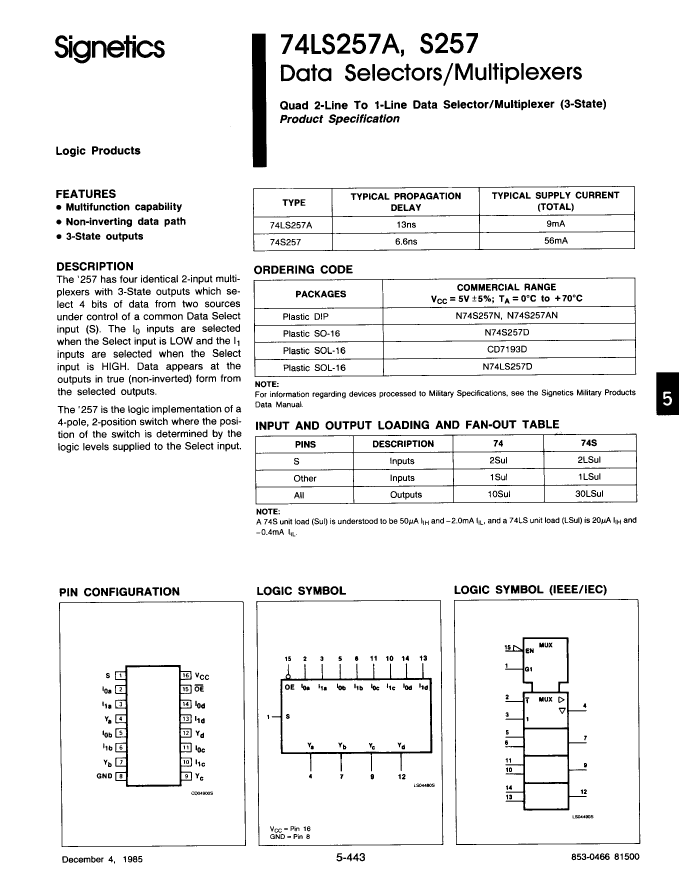

Multiplexer, 4-Func, 2 Line Input, TTL, PDSO16

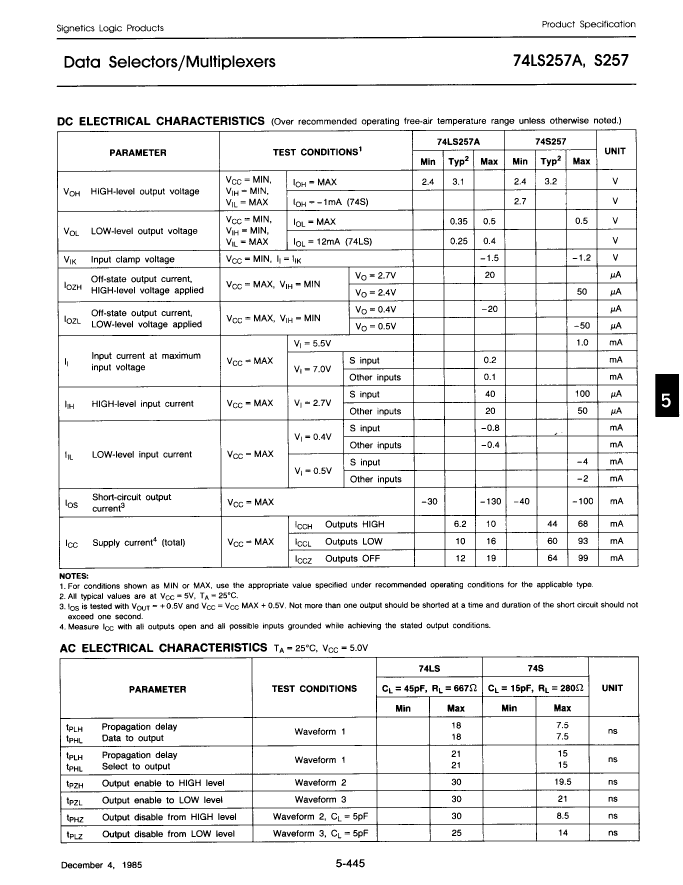

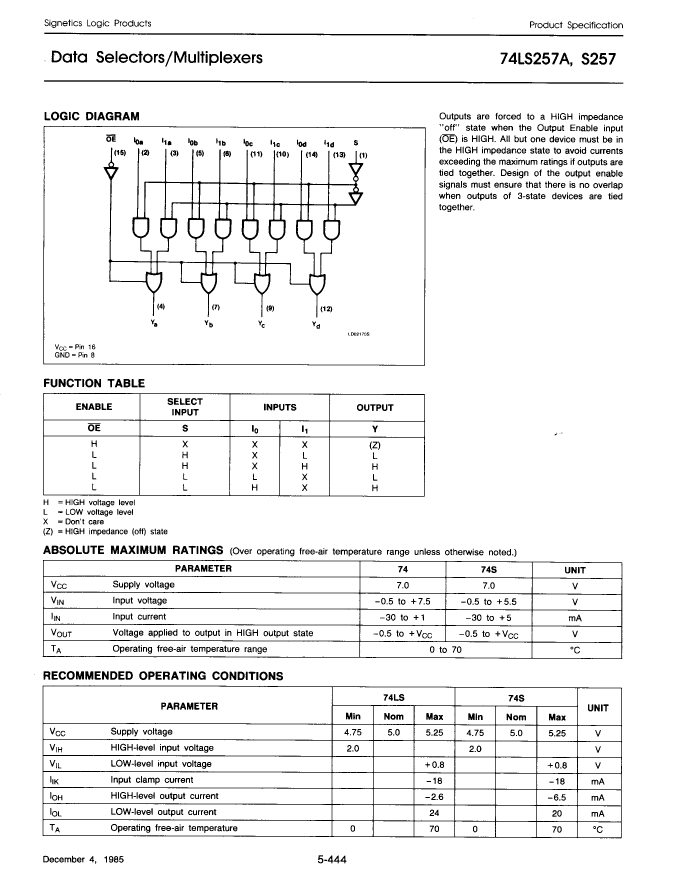

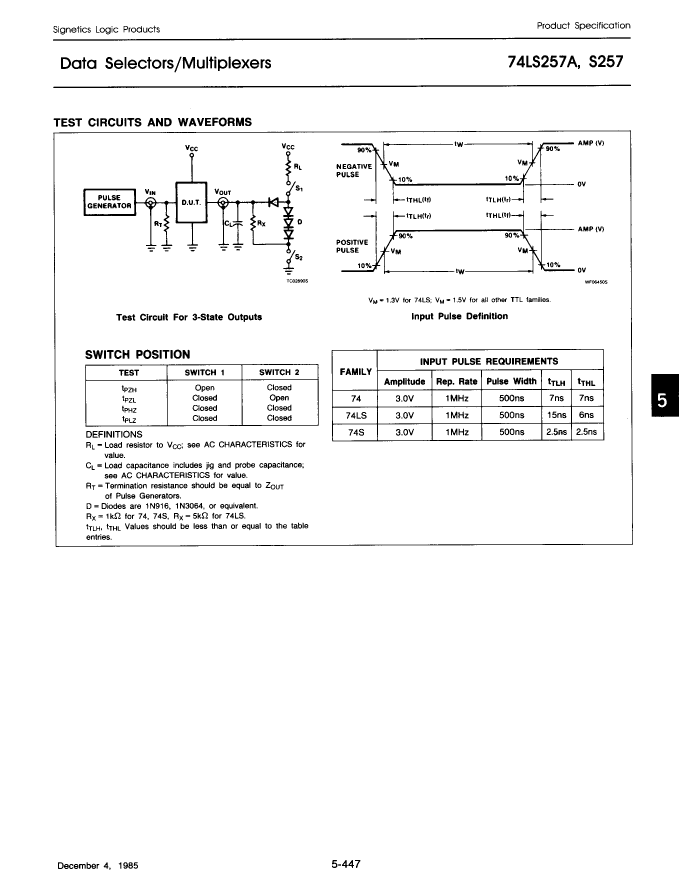

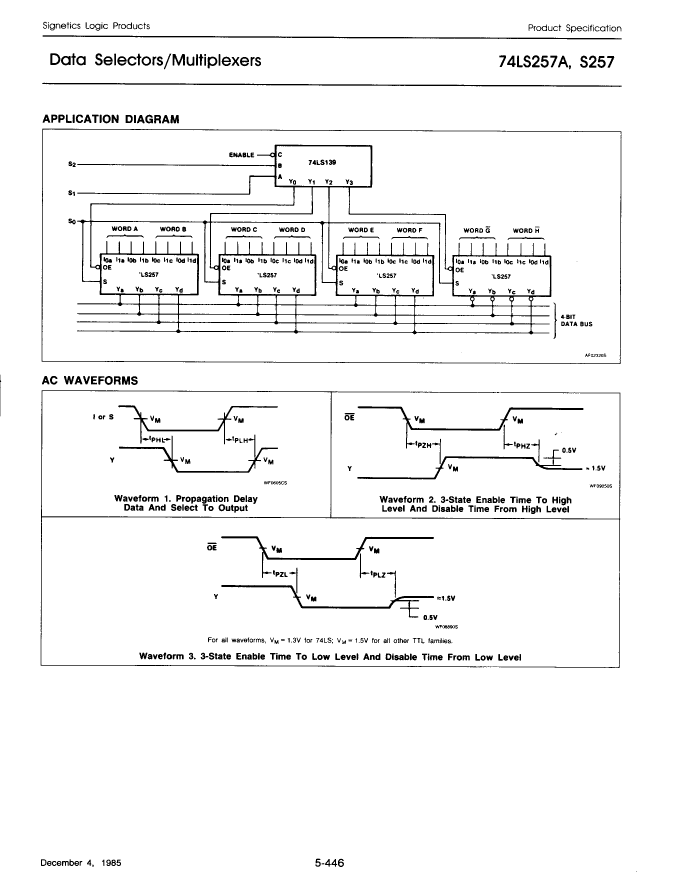

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | SOP, SOP16,.25 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.02 A |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 15 ns |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| N74S257D-T | N74S257N | N74S257N-B | N74S257D | |
|---|---|---|---|---|
| Description | Multiplexer, 4-Func, 2 Line Input, TTL, PDSO16 | Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16 | Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16 | Multiplexer, 4-Func, 2 Line Input, TTL, PDSO16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | SOP, SOP16,.25 | DIP, DIP16,.3 | DIP, DIP16,.3 | SOP, SOP16,.25 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| JESD-30 code | R-PDSO-G16 | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| MaximumI(ol) | 0.02 A | 0.02 A | 0.02 A | 0.02 A |
| Number of functions | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | DIP | SOP |
| Encapsulate equivalent code | SOP16,.25 | DIP16,.3 | DIP16,.3 | SOP16,.25 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Prop。Delay @ Nom-Sup | 15 ns | 15 ns | 15 ns | 15 ns |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified |
