AC3MMCPBULK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AC3MMCPBULK

AC3MMCPBULK: DescriptionAudio/RCA Connector, 3 Pole(s), Solder Terminal,; CategoryThe connector The connector; File Size2MB，20 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

AC3MMCPBULK Overview

Audio/RCA Connector, 3 Pole(s), Solder Terminal,

AC3MMCPBULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	unknown
Other features	UL 94V-0
Configuration	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Installation type	CABLE
Number of poles	3
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

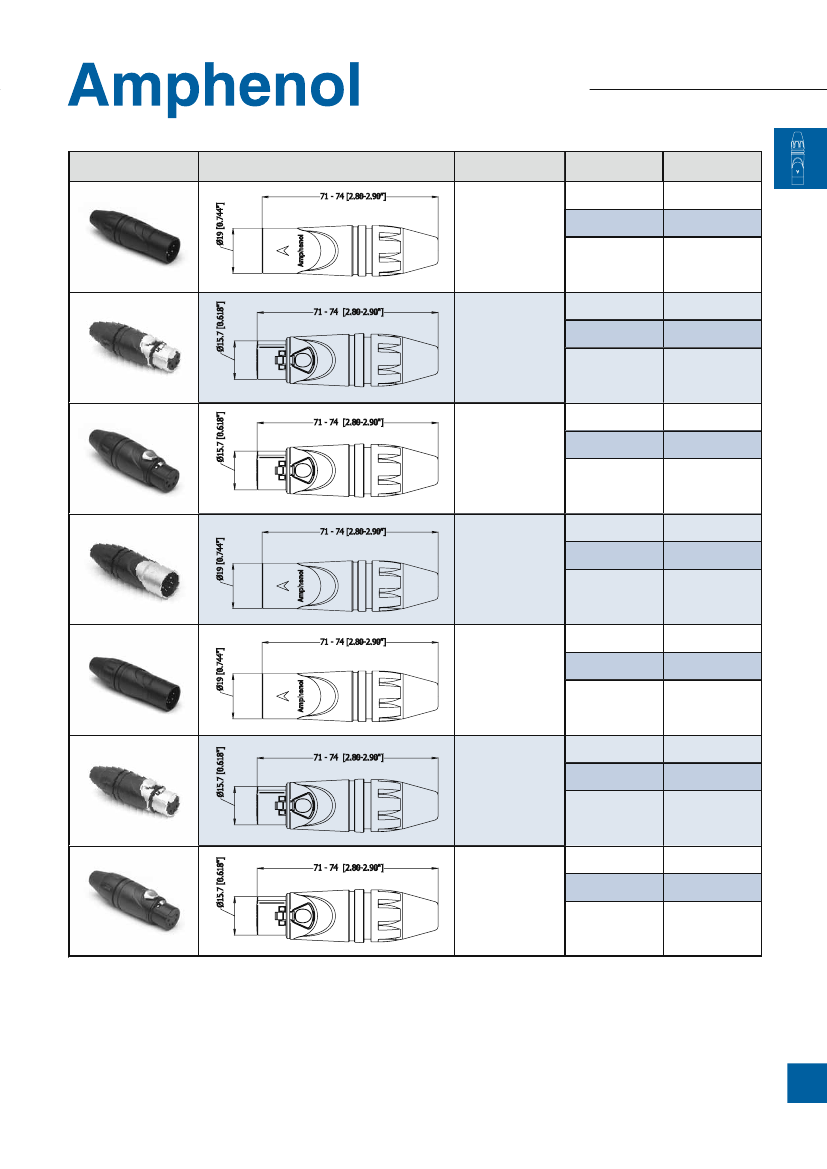

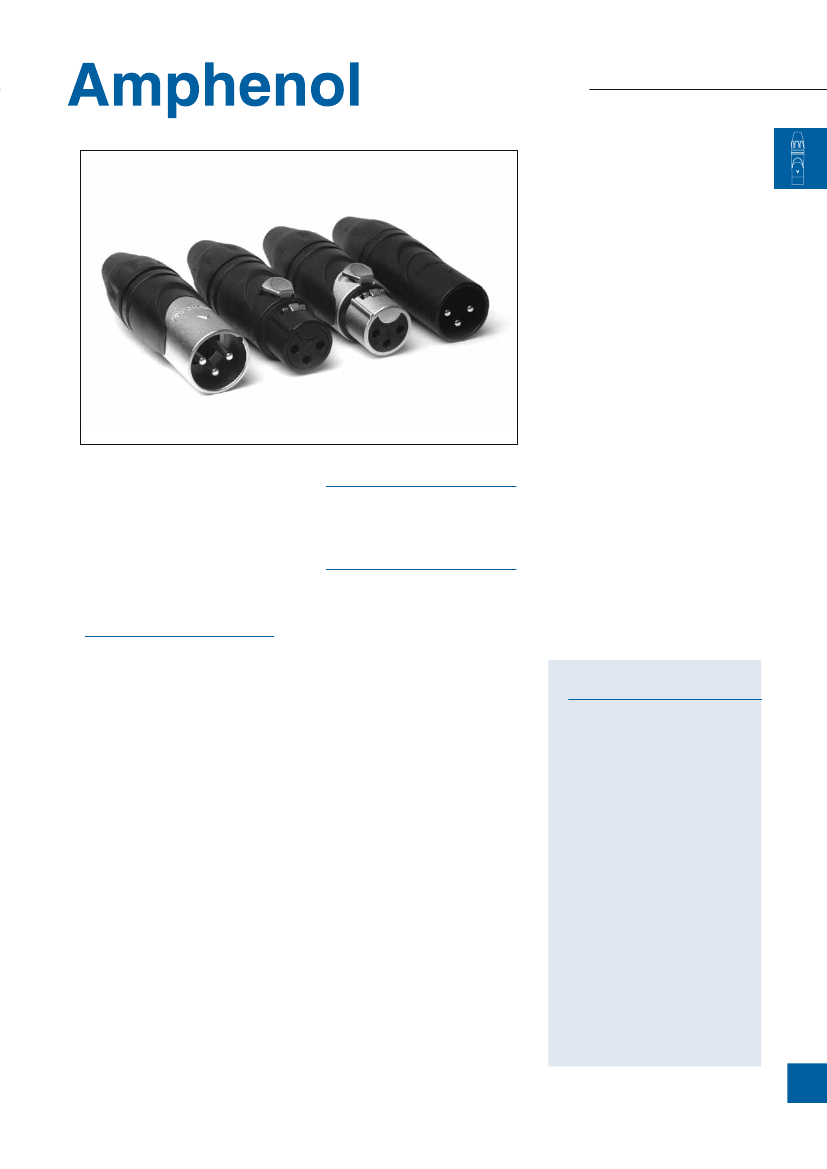

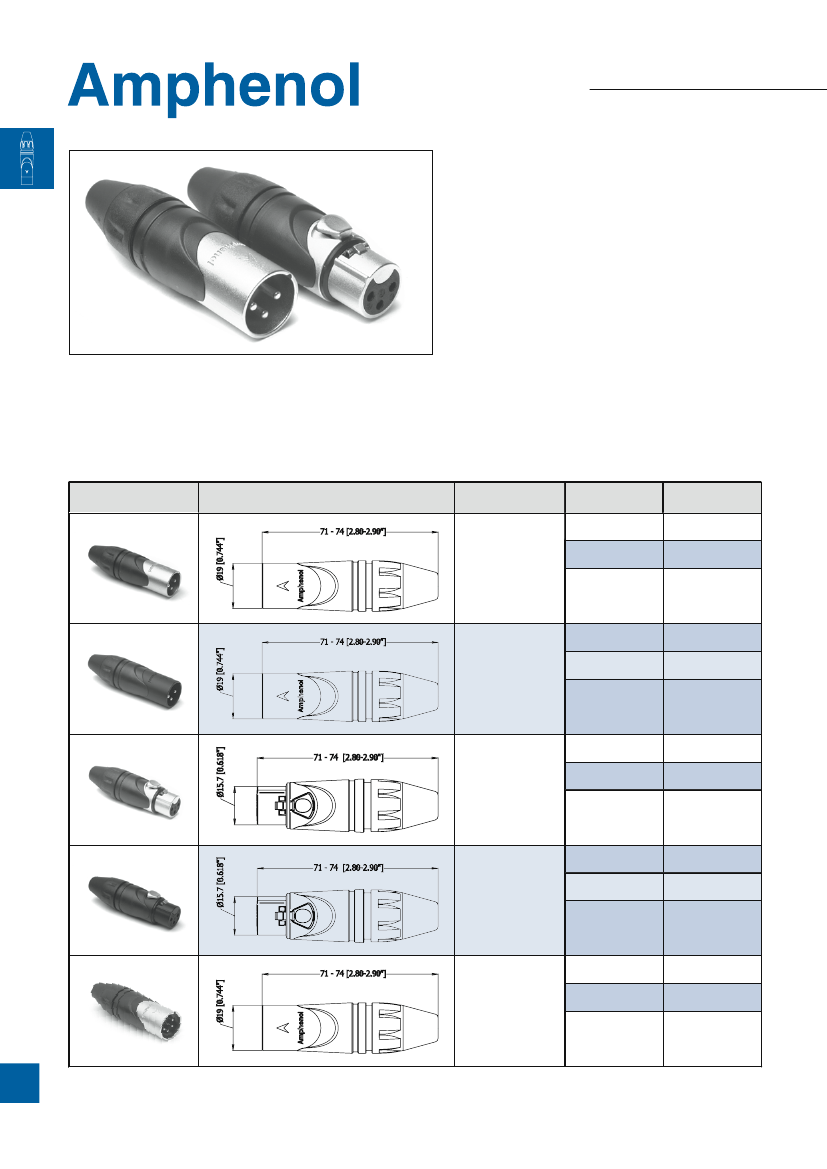

AX SERIES XLR CABLE CONNECTORS

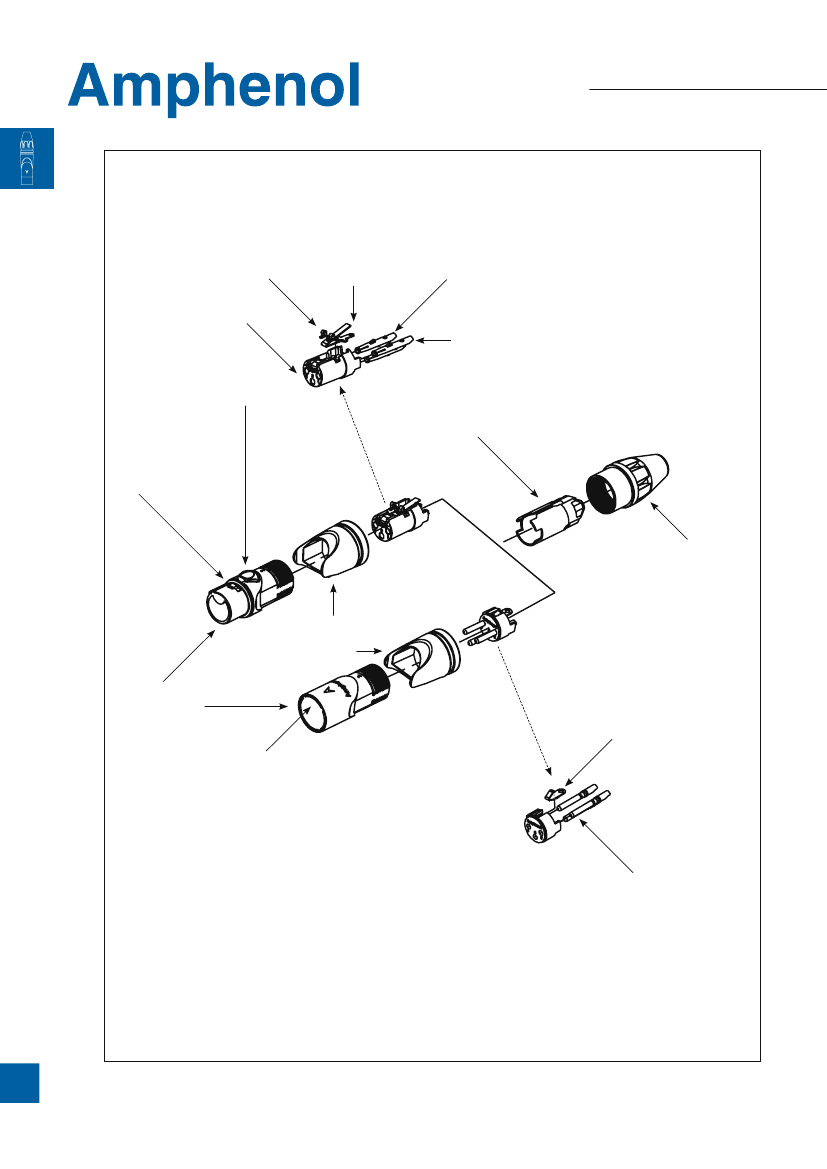

ISO VIEW OF AX SERIES XLR CABLE CONNECTOR

One piece ground / latch spring design incorporating

twin wipe contacts for a direct connection path from

mating shell to ground providing enhanced connec-

Ground solder tag.

tion and EMI performance

Leading first mate last break

socket contact (Pin 1)

Precision socket contacts with

compact solder buckets reduce

termination time and material

wastage during soldering.

Concentric socket contact de-

sign provides optimal contact

resistance

Oversized ergonomic latch for

quick and easy mating

Chuck style cable clamp c/w

split opening for the widest

cable acceptance range

O-ring provides vibration

resistance and sealing.

Overmolded boot with flex

bend relief for improved

aesthetics, cable protection

and boot retention.

Ergonomic sleeve with

integrated expansion ring.

Channel I.D capability.

Zinc Diecast Shell

for robustness and

wear resistance.

Ground solder tag.

Concealed latching point for

improved aesthetics, sealing

and strength.

Precision Machined Pin

contacts with compact

solder buckets reduce termi-

nation time and material

wastage during soldering.

ENTERTAINMENT INTERCONNECT CATALOGUE

- Amphenol Australia Pty Ltd

Telephone 61 3 8796 8888 Fax 61 3 8796 8801

www.amphenolaudio.com
