420LA002M16: DescriptionSealtite/Liquidtite Conduit Backshell; File Size50KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

420LA002M16 Overview

Sealtite/Liquidtite Conduit Backshell

Preview

Download Datasheet

View All

420-002

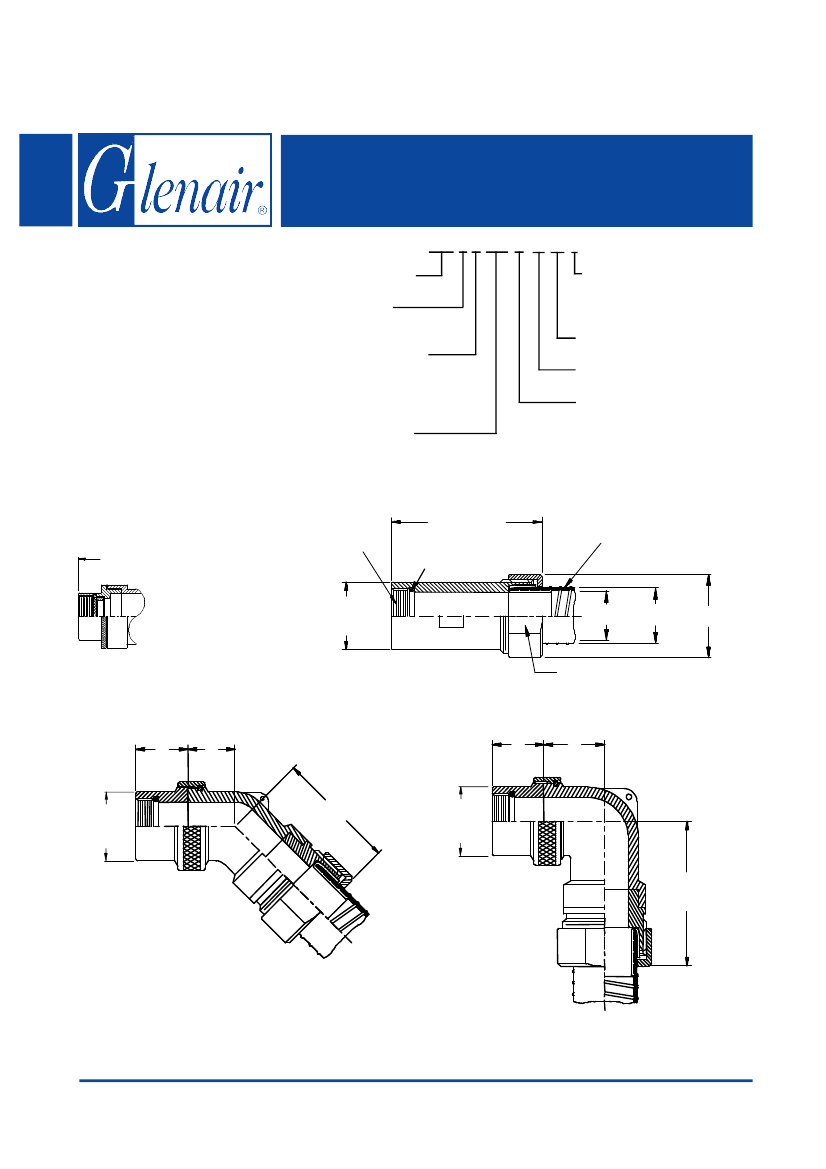

Sealtite™/Liquidtite Conduit Backshell

Direct Coupling - Low Profile

420 F S 002 M 16 03-6

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 6

CONNECTOR

DESIGNATORS

Product Series

Connector

Designator

Angle and Profile

A = 90

B = 45

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Cable Entry (Table V)

Shell Size (Table I)

Finish (Table II)

DIRECT COUPLING

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

Length *

O-Ring

Sealtite/Liquidtite

Conduit or Equivalent

(Customer Furnished)

(Table I)

STYLE 2

(STRAIGHT)

K **

L **

M **

* Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 4)

N Wrench Flat

(Table V)

** (Table V)

(Table III)

(Table IV)

(Table III) (Table IV)

(Table I)

F (Table IV)

(Table I)

(Table IV)

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 42 - Page 4
