420-001
Sealtite™/Liquidtite Conduit Backshell
Rotatable Coupling - Low Profile
42
CONNECTOR
DESIGNATORS
420 F S 001 M 16 03-6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
ROTATABLE
COUPLING

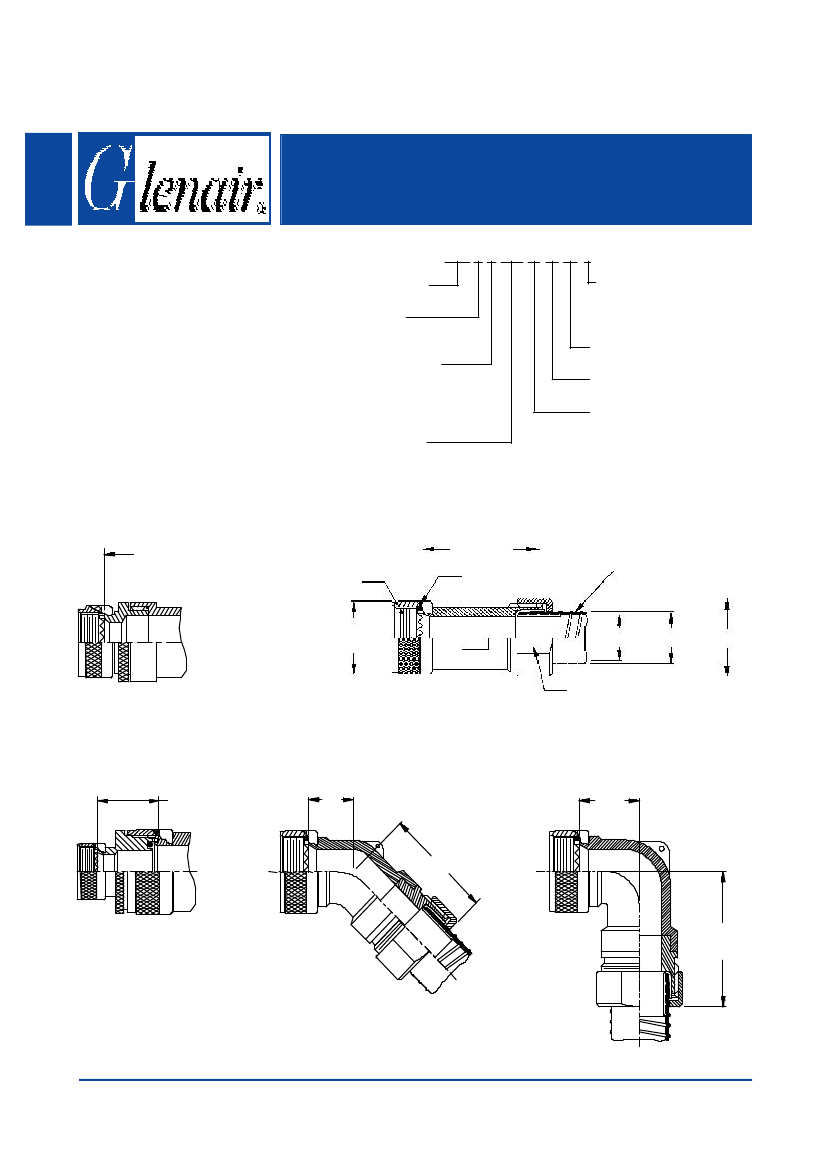

Length ± .060 (1.52)
Minimum Order Length 3.0 Inch A Thread
(Table I)
(See Note 4)
C Typ.
(Table I)
Length *
O-Ring
Sealtite/Liquidtite
Conduit or Equivalent
(Customer Furnished)
K **
L **
M **
STYLE 2
(STRAIGHT)
* Length ± .060 (1.52)
Minimum Order Length 2.5 Inch
(See Note 4)
N Wrench Flat
(Table IV) ** (Table IV)
.88 (22.4)
Max
E
(Table III)
G
(Table III)
F (Table III)
STYLE 2
(45° & 90°)
H (Table III)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 42 - Page 2
Rotatable Coupling - Low Profile
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.810 (46.0)
1.870 (47.5)
1.930 (49.0)
2.020 (51.3)
2.130 (54.1)
2.320 (58.9)
2.320 (58.9)
2.470 (62.7)
2.470 (62.7)
2.520 (64.0)
2.620 (66.5)
2.710 (68.8)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.820 (46.2)
1.940 (49.3)
1.960 (49.8)
2.030 (51.6)
2.120 (53.8)
2.290 (58.2)
2.290 (58.2)
2.400 (61.0)
2.400 (61.0)
2.570 (65.3)
2.820 (71.6)
2.820 (71.6)
TABLE IV: CABLE ENTRY
Dash Conduit
K Dimension (Ref)
L Dimension (Ref)
No. Size (Ref.)
Min
Max
Max
Min
01
3/8
.484 (12.3)
.710 (18.0)
.504 (12.8)
.690 (17.5)
02
1/2
.622 (15.8)
.840 (21.3)
.642 (16.3)
.820 (20.8)
03
3/4
.820 (20.8)
.840 (21.3)
1.030 (26.2) 1.050 (26.7)
04
1
1.041 (26.4) 1.066 (27.1)
1.290 (32.8) 1.315 (33.4)
05
1 1/4
1.380 (35.1) 1.410 (35.8)
1.630 (41.4) 1.660 (42.2)
06
1 1/2
1.575 (40.0) 1.600 (40.6)
1.875 (47.6) 1.900 (48.3)
07
2
2.020 (51.3) 2.045 (51.9)
2.350 (59.7) 2.375 (60.3)
N Max
M
Wrench Flats
Max
1.155 (29.3) 1.000 (25.4)
1.282 (32.6) 1.125 (28.6)
1.531 (38.9) 1.375 (34.9)
1.781 (45.2) 1.625 (41.3)
2.218 (56.3) 2.062 (52.4)
2.468 (62.7) 2.312 (58.7)
3.031 (77.0) 2.875 (73.0)
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
5. O-Ring not supplied with Connector Designator A.
6. Sealtite is a trademark of Anaconda Corp.
