UPD78078GF-XXX-3BA-A: DescriptionMicrocontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，69 Pages; ManufacturerNEC Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

UPD78078GF-XXX-3BA-A Overview

Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100

UPD78078GF-XXX-3BA-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NEC Electronics
package instruction	14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100
Reach Compliance Code	compliant
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	5 MHz
DAC channel	YES
DMA channel	NO
External data bus width	8
JESD-30 code	R-PQFP-G100
JESD-609 code	e6/e4
length	20 mm
Number of I/O lines	88
Number of terminals	100
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3 mm
speed	5 MHz
Maximum slew rate	24 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH/NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

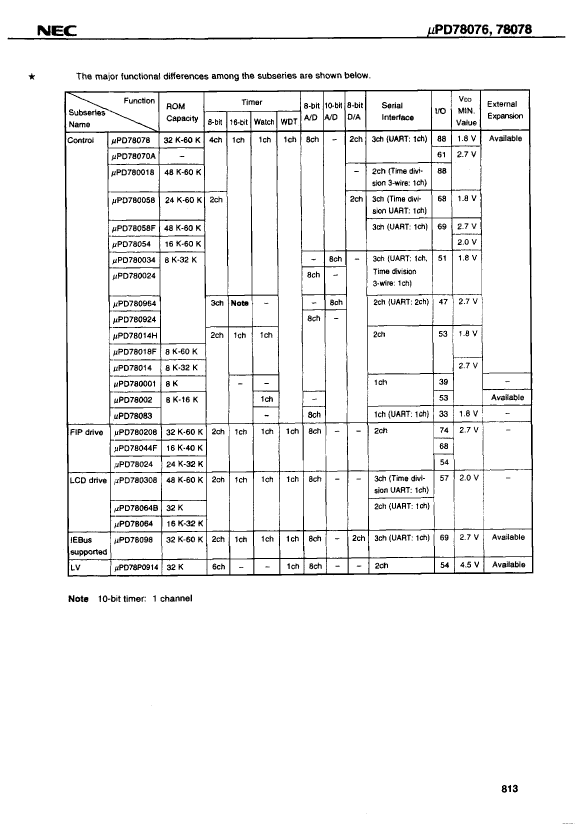

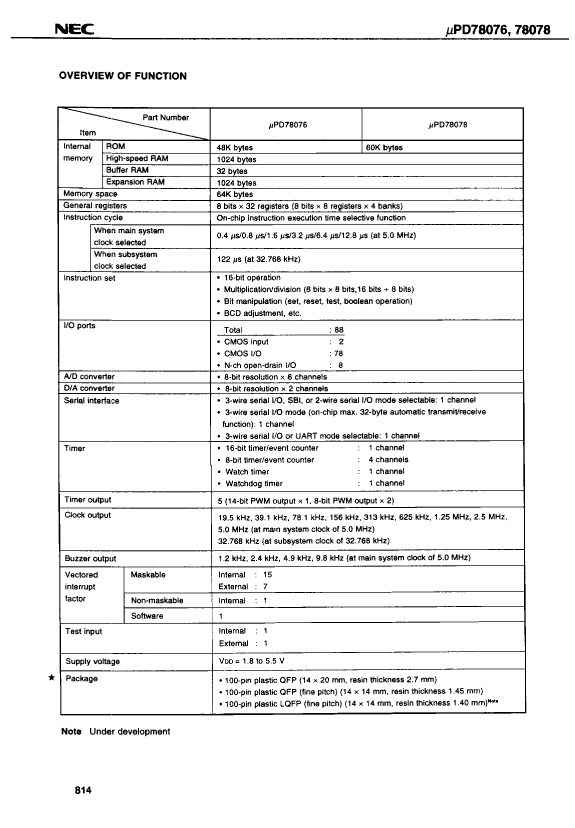

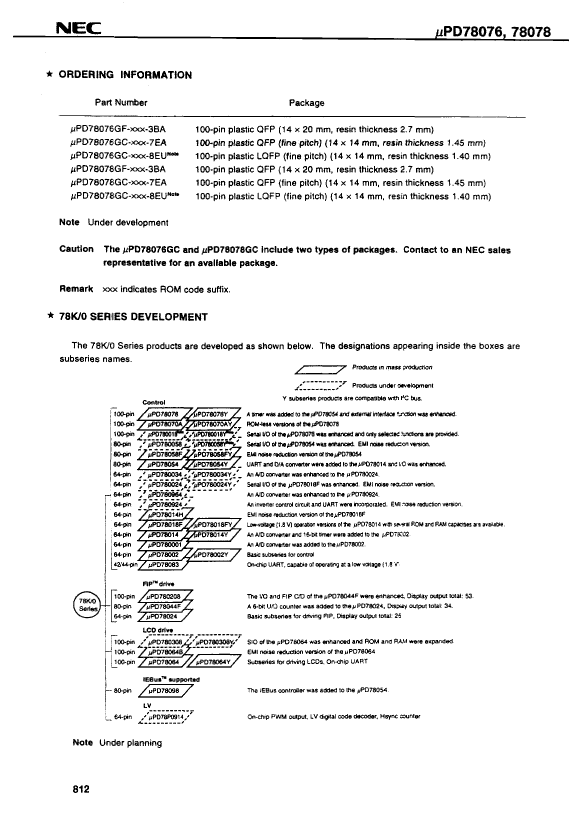

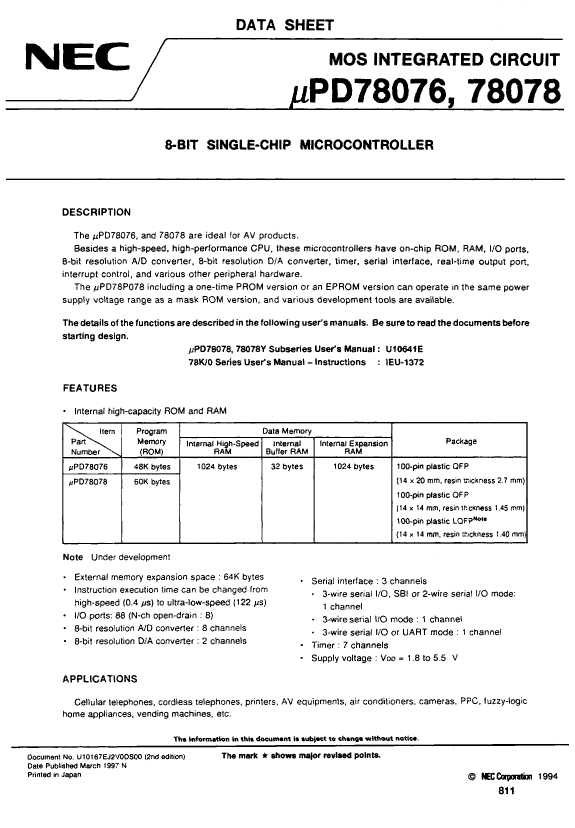

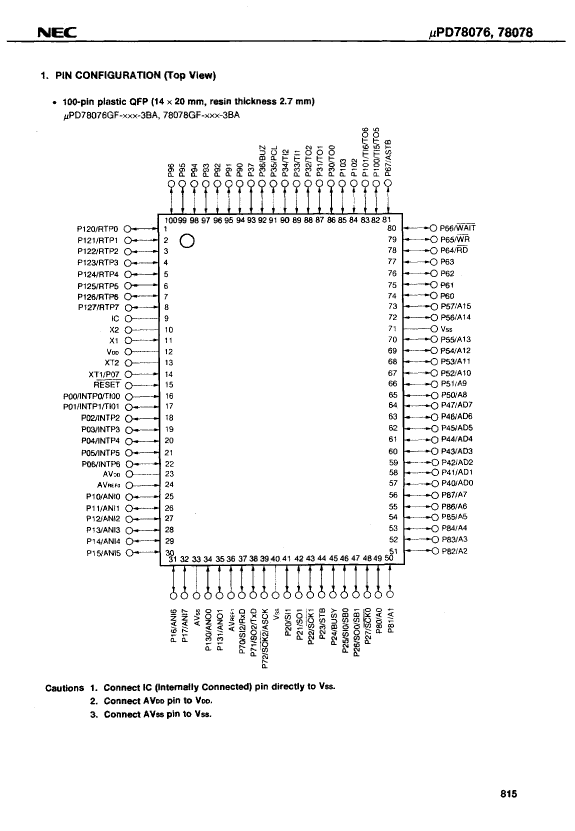

Preview

Download Datasheet

UPD78078GF-XXX-3BA-A Related Products

	UPD78078GF-XXX-3BA-A	UPD78076GC-XXX-8EU	UPD78076GF-XXX-3BA	UPD78078GC-XXX-8EU	UPD78078GC-XXX-7EA	UPD78076GC-XXX-7EA	UPD78078GF-XXX-3BA
Description	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 14 MM, 1.40 MM HEIGHT, FINE PITCH, PLASTIC, LQFP-100	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 14 MM, 1.40 MM HEIGHT, FINE PITCH, PLASTIC, LQFP-100	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 14 MM, 1.45 MM HEIGHT, FINE PITCH, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 14 MM, 1.45 MM HEIGHT, FINE PITCH, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP100, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100	14 X 14 MM, 1.40 MM HEIGHT, FINE PITCH, PLASTIC, LQFP-100	14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100	14 X 14 MM, 1.40 MM HEIGHT, FINE PITCH, PLASTIC, LQFP-100	14 X 14 MM, 1.45 MM HEIGHT, FINE PITCH, PLASTIC, QFP-100	14 X 14 MM, 1.45 MM HEIGHT, FINE PITCH, PLASTIC, QFP-100	14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-100
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Has ADC	YES	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8
maximum clock frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
DAC channel	YES	YES	YES	YES	YES	YES	YES
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
JESD-30 code	R-PQFP-G100	S-PQFP-G100	R-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	R-PQFP-G100
JESD-609 code	e6/e4	e0	e0	e0	e0	e0	e0
length	20 mm	14 mm	20 mm	14 mm	14 mm	14 mm	20 mm
Number of I/O lines	88	88	88	88	88	88	88
Number of terminals	100	100	100	100	100	100	100
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	LFQFP	QFP	LFQFP	LFQFP	LFQFP	QFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	3 mm	1.6 mm	3 mm	1.6 mm	1.7 mm	1.7 mm	3 mm
speed	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum slew rate	24 mA	24 mA	24 mA	24 mA	24 mA	24 mA	24 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH/NICKEL PALLADIUM GOLD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.5 mm	0.65 mm	0.5 mm	0.5 mm	0.5 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	10	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	NEC Electronics	-	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
