UTP
Full plastic circular
connector
Description
“UTP” full plastic industrial circular
connectors are a range of multiway
connectors.
“UTP” provides the complete answer
to the need for economical lightweight,
robust circular connectors and is unique
in offering a plastic bayonet coupling ring
incorporating a metal wave spring, which
locks with an audible positive “click”.
It is available in 8 shell sizes, 10
insert arrangements all intermateable,
interchangeable and intermountable with
the TRIM TRIO “UT0” (full metal) and
“UTG” (plastic with metal coupling ring)
industrial connector families.
Features and benefits
• Available in 8 shell sizes and 10 insert
arrangements incl. 2 VDE versions.
• Available in plug and receptacle versions
for both male and female contacts.
• Connectors and accessories are
moulded from highly durable glass-filled
thermoplastic.
• Flammability rating: UL94-V0.
• Plastic bayonet ring:
- Vibration proof thermoplast
- Metal wave spring loaded.
- Locks with audible positive “click”
- UL recognized File Nr.: E238675
Performance characteristics
Operating
temperature:
Insulation
resistance:
Test potential:
Durability:
-55°C to +1
25°C
Construction
Connector, Bayonet ring and accessories
Gass filled thermoplast UL94-V0
Colour: black
Coupling spring: Spring steel
5000 MΩ min.
2000 VAC
250 matings and
unmatings.
Degree of protection per DIN 40050:
IP65 in mated condition. “H” version used
with water protected backshells.
Contact accommodation
• “UTP” connectors accept TRIM TRIO size
16 removable snap-lock contacts (see
contacts section)
• Contacts to be ordered seperately.
How to order
Connector family :
UTP
UTP
0 : Wall mounting receptacle
6 : Cable plug
0
6
1
4
1
4
1
2
1
2
P
S
H
--
--
Body variation:
Shell size:
Insert arrangement:
Type of contacts:
P : Pin contacts
S : Socket contacts
No letter : Standard version
H : Water protected version (only receptacle)
No letter : Moulded-in contact marking (standard version)
Others : Specials versions
Application
Design variation
13
UTP

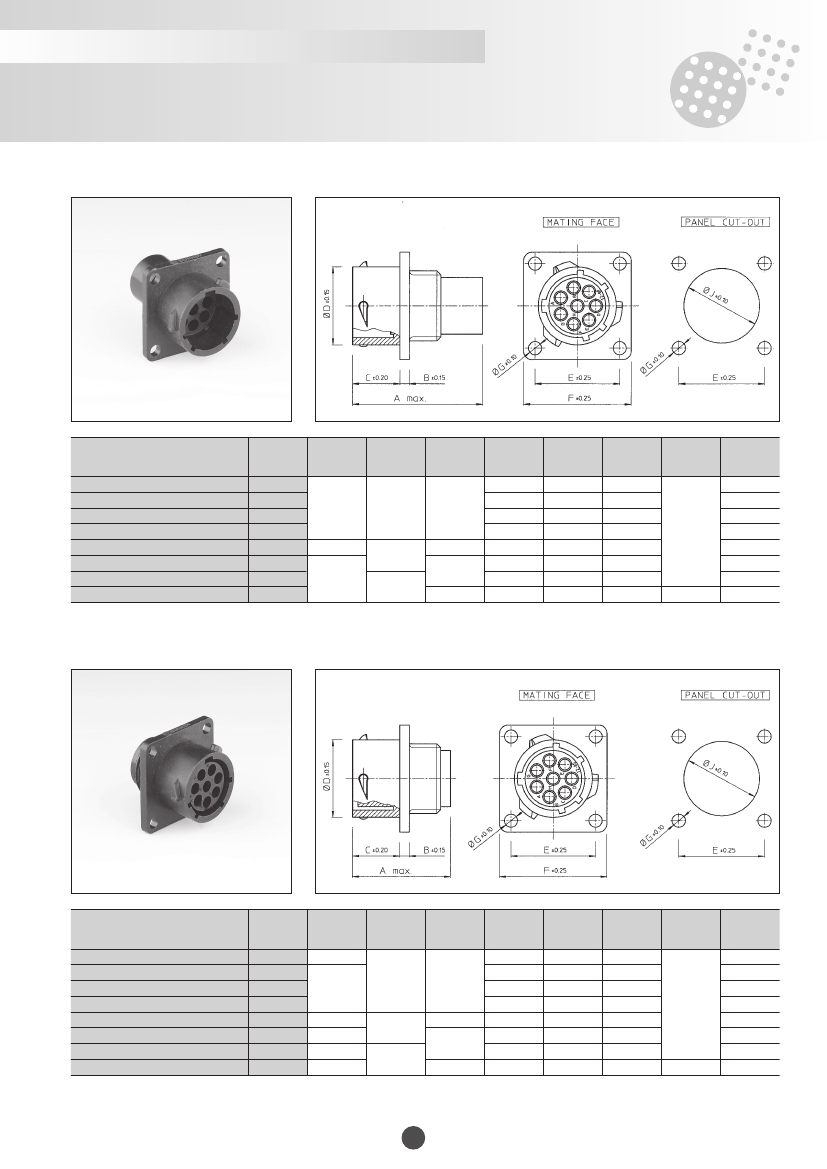

Wall mounting receptacle for pin contacts (UTP0- - - -P)
Part number
Shell
size
A
max.
B
±0.1
5
C
±0.2
ØD
±0.1
5
E
±0.25
F
•0.25
ØG
±0.1
ØJ
±0.1
15.1
18.2
21.4
24.6
27.8
30.9
34.1
37.3
(UTFD--).
UTP0104P / UTP0103PVDE
10
15.0
18.3
23.8
UTP0128P
12
2.3
19.0
20.6
26.2
UTP01412P
14
31.7
1
1.3
22.2
23.0
28.6
UTP01619P
16
25.3
24.6
31.0
3.2
UTP01823P / UTP0187PVDEU
18
31.7/34.0
2.5
1
1.3/1
7.9
28.5
27.0
33.3
UTP02028P
20
14.5
31.7
29.4
36.5
UTP02235P
22
33.3
3.5
34.9
31.8
39.7
UTP02448P
24
15.3
38.0
34.9
42.9
3.9
For IP65 waterprotected version add “H” behind “P” e.g. UTP01 2PH
41
A square flange sealing has to be ordered separately to guarantee a sealing with the equipment. Refer to “Circular accessories” section

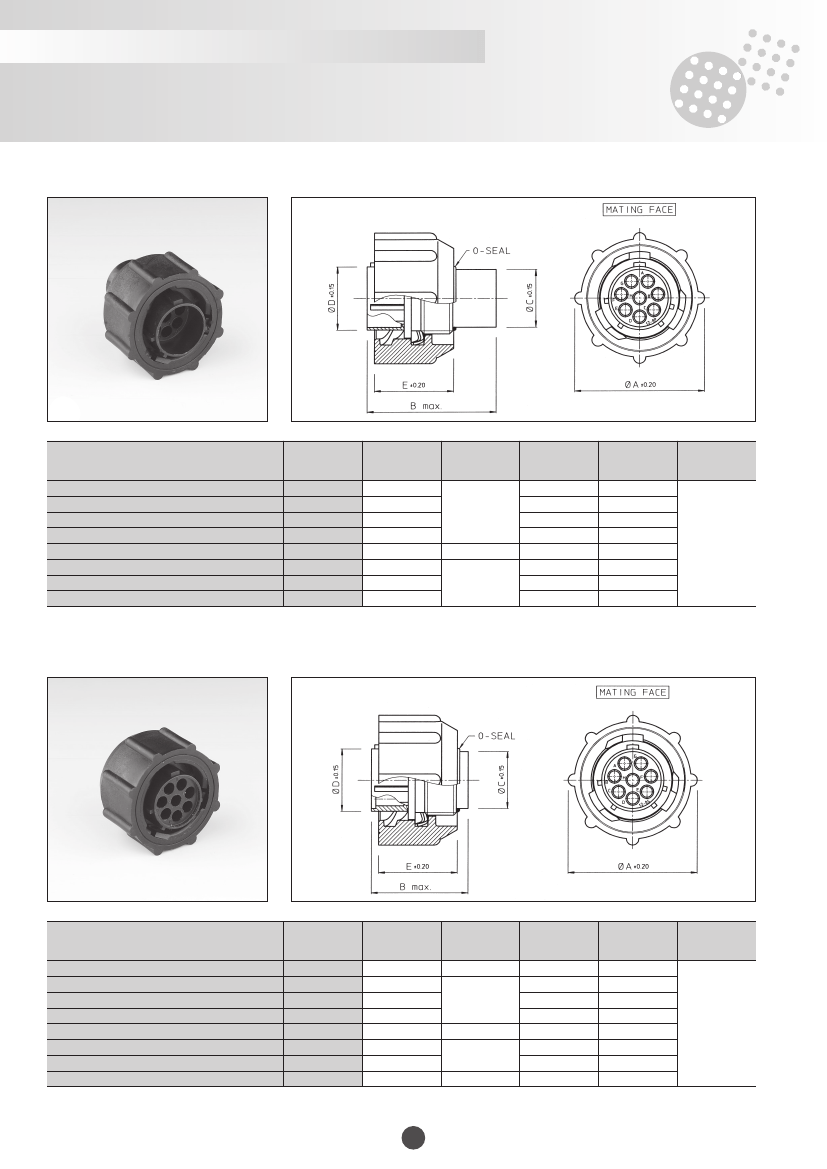

Wall mounting receptacle for socket contacts (UTP0- - - -S)
Part number
UTP0104S / UTP0103SVDE
UTP0128S
UTP01412S
UTP01619S
UTP01823S / UTP0187SVDEU
UTP02028S
UTP02235S
UTP02448S
Shell
size
10
12
14
16
18
20
22
24
A
max.
24.3/27.6
B
±0.1
5
2.3
C
±0.2
ØD
±0.1
5
15.0
19.0
22.2
25.3
28.5
31.7
34.9
38.0
E
±0.25
18.3
20.6
23.0
24.6
27.0
29.4
31.8
34.9
F
•0.25
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
ØG
±0.1
ØJ
±0.1
15.1
18.2
21.4
24.6
27.8
30.9
34.1
37.3
24.3
24.3/30.4
27.0
28.0
30.4
2.5
3.5
1
1.3
1
1.3/1
7.9
14.5
15.3
3.2
3.9
For IP65 waterprotected version add “H” behind “S” e.g. UTP01 2SH
41
A square flange sealing has to be ordered separately to guarantee a sealing with the equipment. Refer to “Circular accessories” section (UTFD--).
15
