Production specification
Schottky Barrier Rectifiers
Features
Metal silicon junction, majority carrier conduction
High surge capability
High temperature soldering guaranteed:
260°C/10 seconds
High current capability, low forward voltage drop
Guarding for over voltage protection
RoHS Compliant

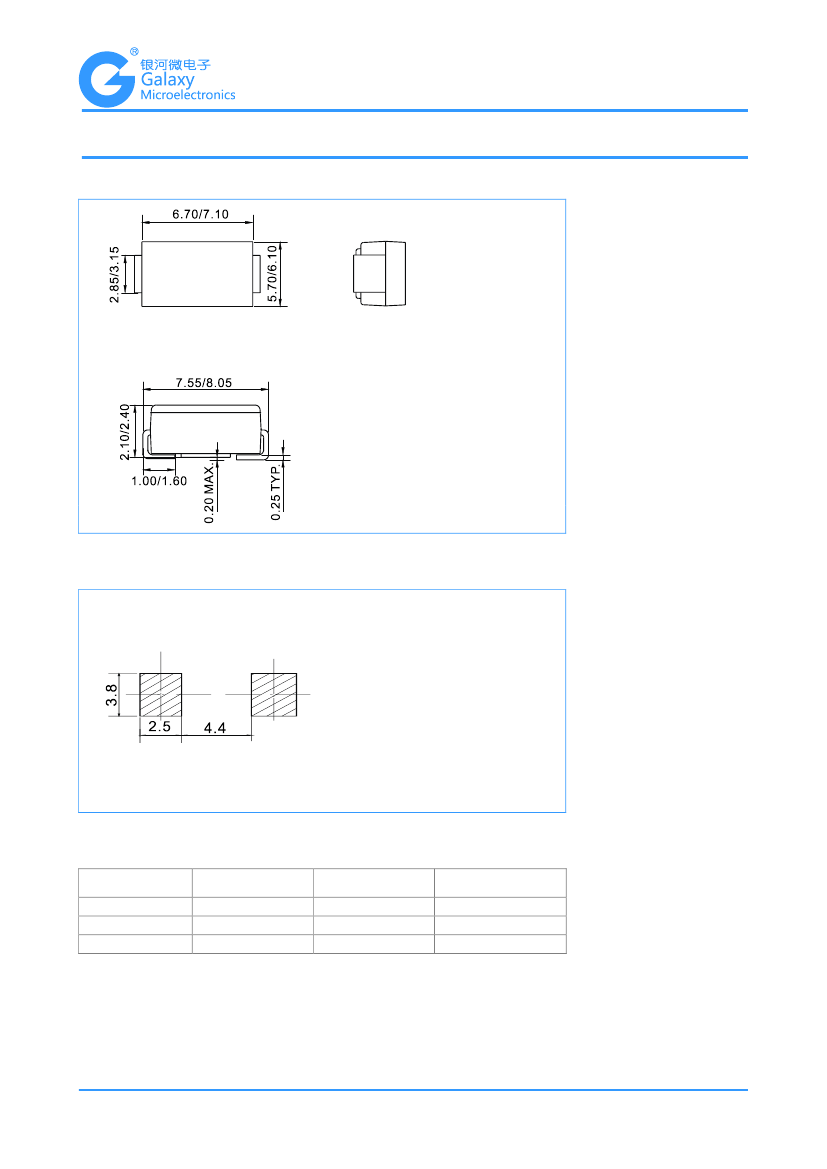

Case: SMC molded plastic
Molding compound, UL flammability classification rating 94V-0
Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102
Polarity: Color band denotes cathode end
SS38--SS310
Mechanical Data
Maximum Ratings
(@T
A
= 25°C unless otherwise specified)
Characteristic
Peak repetitive reverse voltage
RMS reverse voltage
DC blocking voltage
Maximum average forward output current
Peak forward surge current,
8.3ms single half-sine-wave
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
SS38
80
56
80
SS39
90
63
90
3.0
80
SS310
100
70
100
Units
V
V
V
A
A
Thermal Characteristics
Parameter
Typical thermal resistance
(Note 1)
Operating junction temperature range
Storage temperature range
Symbol
R
ΘJA
R
ΘJC
R
ΘJL
T
J
T
STG
SS38
SS39
56
23
14
- 55 ---- + 150
- 55 ---- + 150
°C
°C
°C /W
SS310
Units
Note:
1. Device mounted on PCB with 10 mm x 20 mm x 0.1mm copper pad areas
SMC406AA
Rev.B
www.gmesemi.com
Production specification
Schottky Barrier Rectifiers
Electrical Characteristics
(@T
A
= 25°C unless otherwise specified)
Parameter
Maximum instantaneous
forward voltage(Note 1)
Maximum Reverse current
(Note 2)
@T
J
=25°C
I
R
Rated V
R
,
@T
J
=100°C
--
--
Symbol
V
F
Test
I
F
=3.0A
conditions
@T
A
=25°C
Typ.
--
SS38--SS310
Max.
0.85
250
10
Units
V
μA
mA
Note:
1.Pulse test: 300us pulse width, 1 % duty cycle
2.Pulse test: Pulse width 40ms
SMC406AA
Rev.B
www.gmesemi.com
Production specification
Schottky Barrier Rectifiers

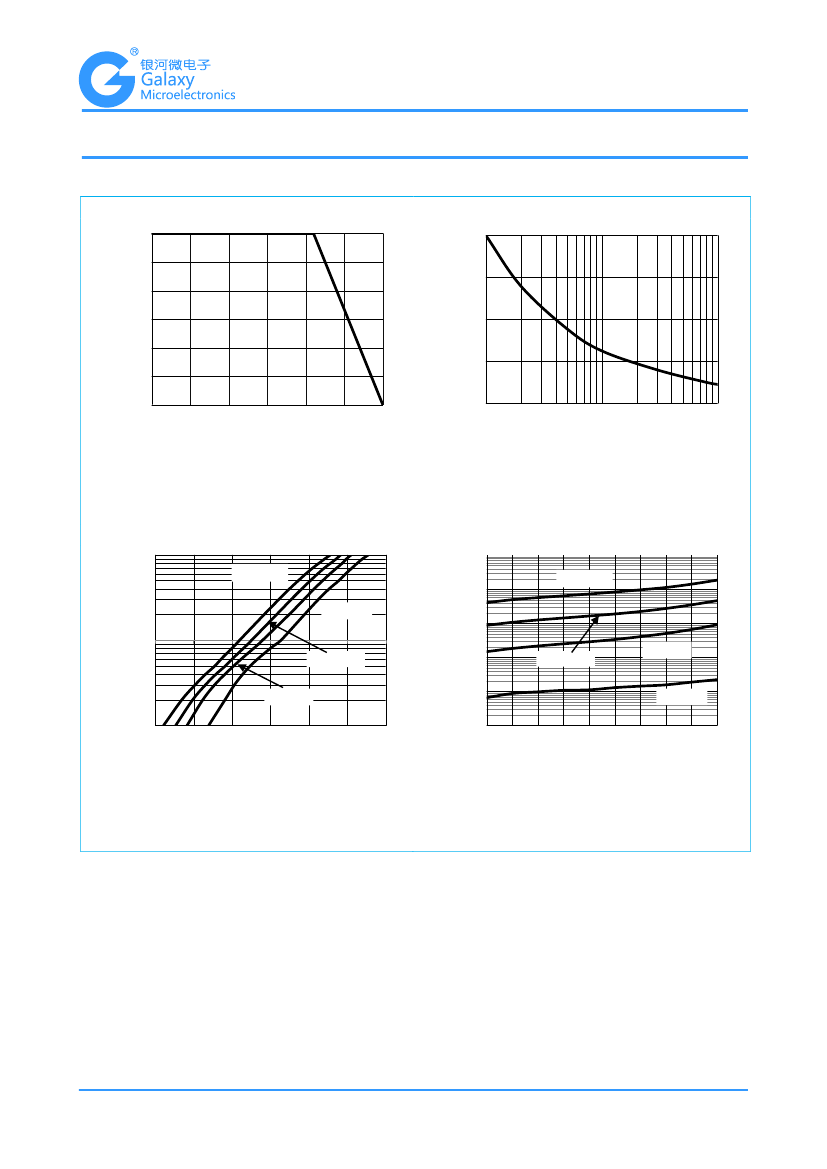

Fig.1-Forward Current Derating Curve
I
FSM
,Peak Forward Surge Current (A)
3
Average Current (A)
2.5
2
1.5
1
0.5
0
0
25
50
75
100
Case Temperature (°C)
125
150
SS38--SS310
Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
Fig.2- Surge Current Derating Curve
80
60
40
20
0
1
10
Number of Cycles at 60H
Z
100
Fig.3- Typical Forward Voltage Characteristic
10
Fig.4- Typical Reverse Characteristic
Tj=125℃
Tj=125℃
Forward Current I
F
(A)
Reverse Current ,I
R
(μ A)
100
10
1
0.1
0.01
0.3
0.4
0.5
0.6
0.7
0.8
0.9
10
20
30
Tj=25℃
1
=
100
℃
Tj
=
100
℃
Tj
Tj=75℃
Tj=75℃
0.1
Tj=25℃
40
50
60
70
80
90 100
Forward Voltage ,V
F
(V)
Reverse Voltage ,V
R
(%)
SMC406AA
Rev.B
www.gmesemi.com
