Hebei I.T. (Shanghai) Co., Ltd.
LED SPECIFICATION
Part No.：412JPKC
Features/特征：
l
Single color/特征
l
High bright output/高亮度输出
l
Low power consumption/½功耗
l
High reliability and long life/可靠性高、寿½长
l
Cuprum lead/铜引脚
Descriptions/描述：
l
Dice material/芯片材质：GaInN
l
Emitting Color/发光颜色：
Super Bright Pink/高亮度紫红光
l
Device Outline/产品外½：
φ5mm
Round Type/5mm
圆½
l
Lens Type/胶½颜色：Water Clear/无色透明

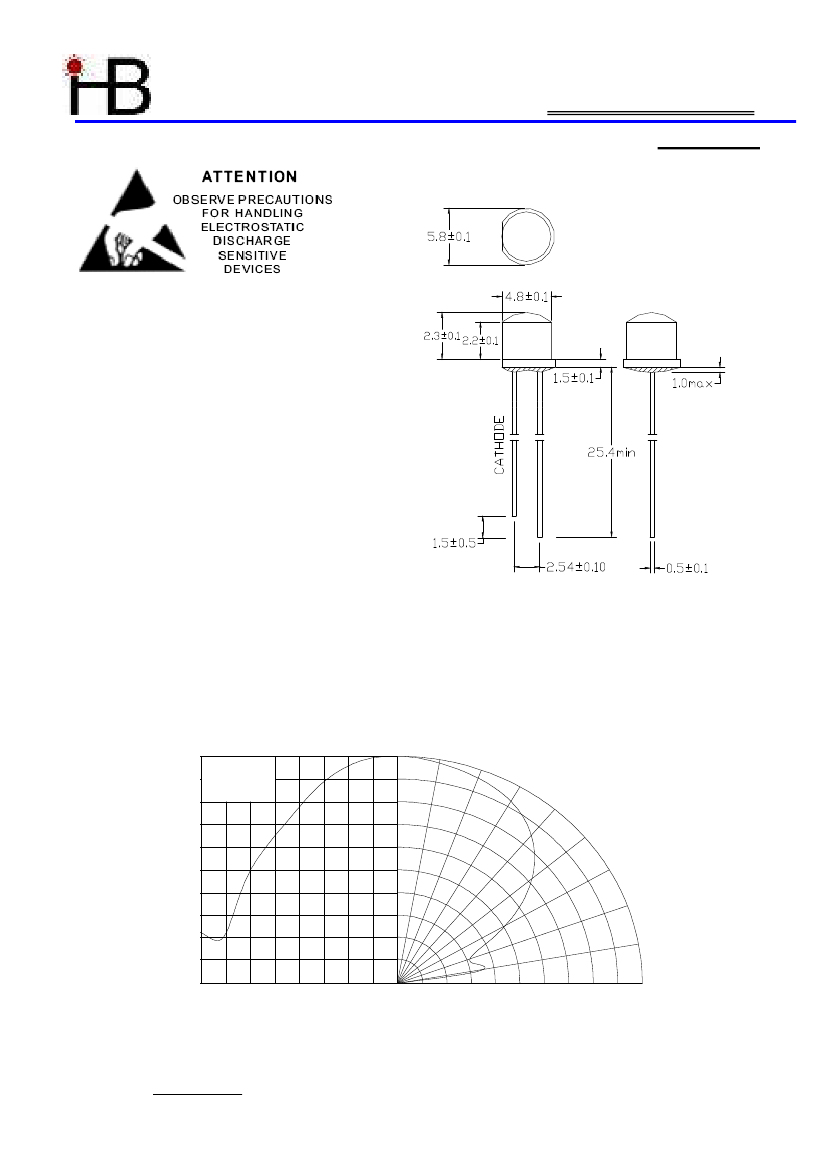

NOTE/注意:
l
l
All dimensions are millimeters/单½：mm
Tolerance is +/-0.25mmunless otherwise
noted/没有标注的公差为±0.25mm
DIRECTIVITY
Ta=25°C
IF=20mA
0°
30°
60°
90°
60°
30°
0°
0.5
90°
1.0
Radiation Angle
www.ledz.com
1/3
Hebei I.T. (Shanghai) Co., Ltd.
LED SPECIFICATION
Part No.：412JPKC
Absolute maximum ratings/极限参数（Ta = 25℃）
Parameter
参数
Reverse Voltage
反向电压
Forward Current
正向工½电流
Power Dissipation
损耗功率
Pulse Current
正向峰值电流
Operating Temperature
工½温度范围
Storage Temperature
储存温度范围
Symbol
符号
V
R
I
F
Pd
Ipeak
Topr
Tstr
Test Condition
测试条件
I
R
= 30μA
----
----
Duty=0.1mS，1kHz
----
----
Value
数值
Min.
5
----
----
----
-40
-40
Max.
--
25
90
100
+85
+100
Unit
单½
V
mA
mW
mA
℃
℃
Electrical and optical characteristics /光电参数（Ta = 25℃）
Parameter
参数
Forward Voltage
正向电压
Reverse Current
反向电流
Luminous Intensity
发光强度
Viewing Angle
指向角度
Symbol
符号
V
F
I
R
I
V
2θ
1/2
Test Condition
测试条件
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
Value
数值
Min.
----
----
----
----
Typ.
3.0
----
400
120
Max.
3.6
30
---
----
Unit
单½
V
μA
mcd
Deg.
Luminous Intensity Bins Chart/发光强度分档（Ta = 25℃）
Bin
Min
Max
Q
400
600
R
600
800
S
800
1000
T
1000
1500
www.ledz.com
2/3
Hebei I.T. (Shanghai) Co., Ltd.
LED SPECIFICATION
Part No.：412JPKC
Typical electrical/optical characteristic curves/光电特性曲线：
50
Luminous Intensity
Relative Value at IF=20mA
2.4 2.8 3.2 3.6
Forward Voltage(V)
4.0
Forward Current(mA)
40
30
20
10
0
2.0
2.5
2.0
1.5
1.0
0.5
0
0
10
20
40
30
IF-Forward Current (mA)
50
Relative Luminous Intensity
20
40
60
80
100
50
Forward Current(mA)
40
30
20
10
0
0
2.5
2.0
1.5
1.0
0.5
0
-40
-20
0
20
40
60
80
Ambient Temperature T
A
(
℃
)
100
Ambient Temperature T
A
(
℃
)
Relative Luminous Intensity
1.2
Ta=25
℃
1.0
0.8
0.6
0.4
0.2
0
400
450
500
550
600
650
700
Wa v el e ng t h
(n m)
www.ledz.com
3/3
