Bothhandusa.com

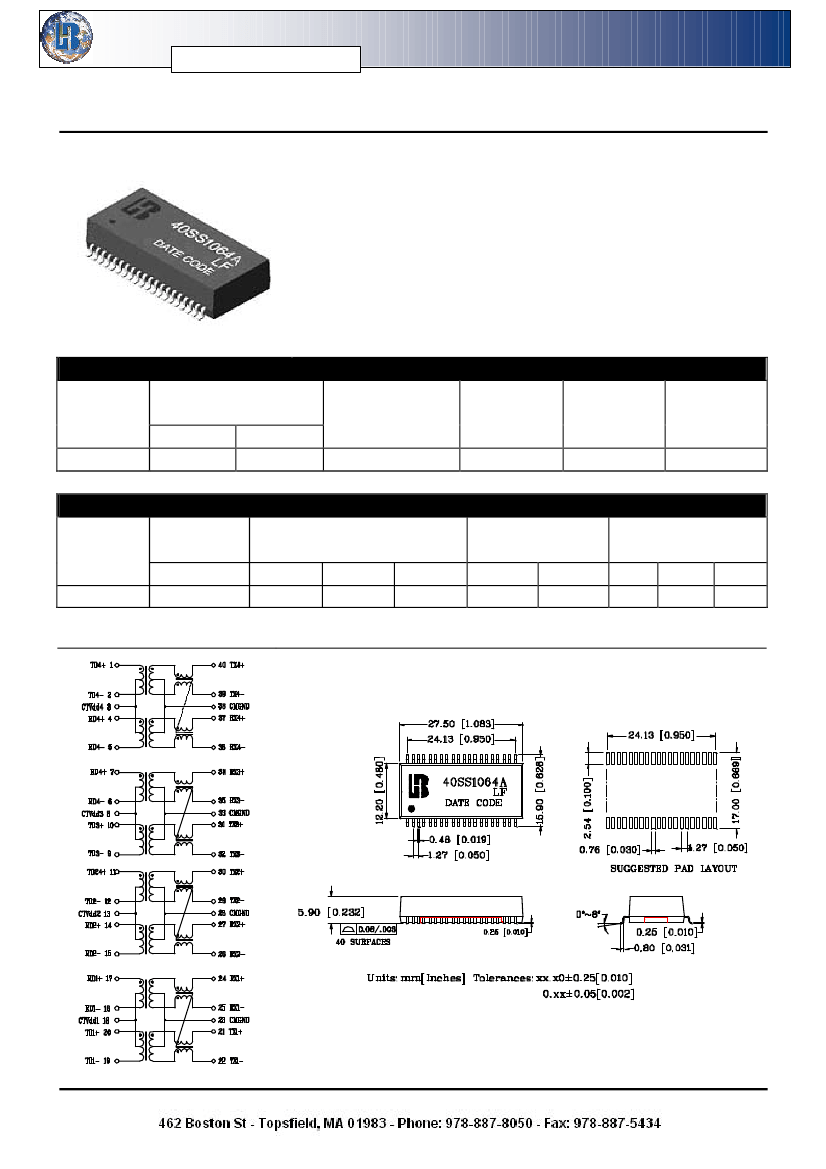

40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER
P/N: 40SS1064A LF DATA SHEET
Feature
Page : 1/1
l
l
l
l
l
l
l
l
IEEE 802.3 Ethernet compatible, 100 BASE-TX
Surface mountable.
Design for multi-port repeater and Ethernet switching Hub
application.
Customer designs available for specific application.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Comply with Air reflow profile of JEDEC 020C.
Operating temperature range : 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
TX
40SS1064A LF
1CT:1CT
Turns Ratio
(±5%)
RX
1CT:1CT
OCL(uH Min)
@100KHz/0.1Vrms
8mA DC/Bias
400
L.L
(uH Max)
0.4
C
w/w
(pF Max)
56
HI-POT
(Vrms)
1500
Continue
Part
Number
40SS1064A LF
Insertion Loss
(dB Max)
0.3–100MHz
-1.15
Return Loss
(dB Min)
0.3-30MHz 30-60MHz
-16
-12
Cross talk
(dB Min)
DCMR
(dB Min)
60-80MHz 0.3-60MHz 60-100MHz 60MHz 100MHz 200MHz
-10
-40
-28
-37
-28
-25
Schematic
Mechanical
