U2402B-C-FP datasheet, PDF - EEWORLD Datasheet

U2402B-C-FP: DescriptionBattery Charge Controller, 0.8kHz Switching Freq-Max, BIPolar, PDSO20, SO-20; CategoryPower/power management The power supply circuit; File Size254KB，9 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

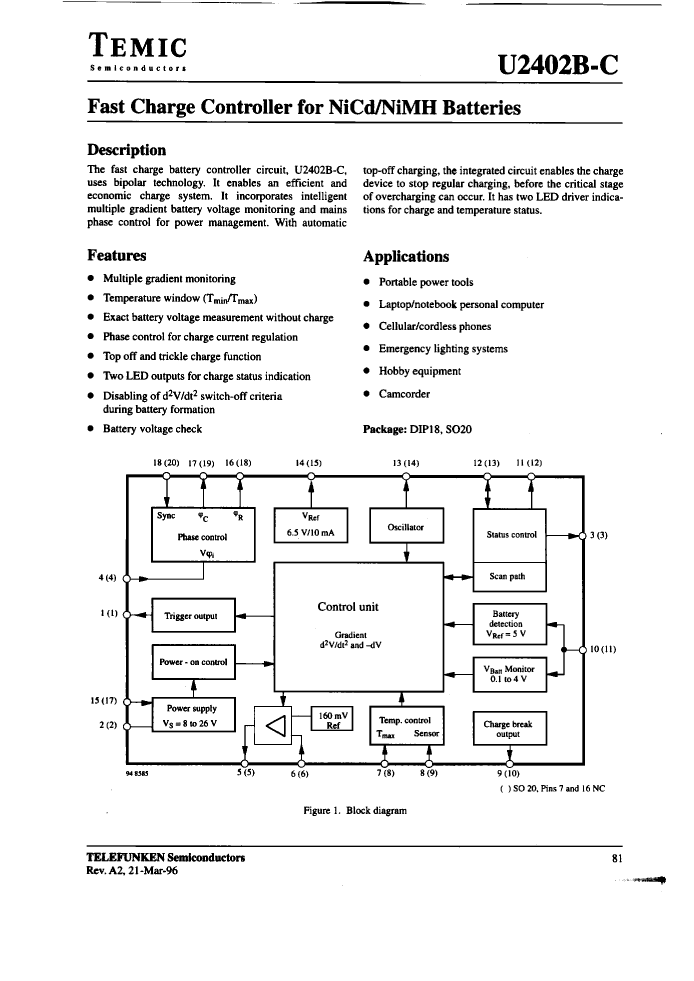

U2402B-C-FP Overview

Battery Charge Controller, 0.8kHz Switching Freq-Max, BIPolar, PDSO20, SO-20

Parameter Name	Attribute value
package instruction	SO-20
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
Maximum input voltage	26 V
Minimum input voltage	8 V
Nominal input voltage	12 V
JESD-30 code	R-PDSO-G20
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	0.8 kHz
technology	BIPOLAR
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

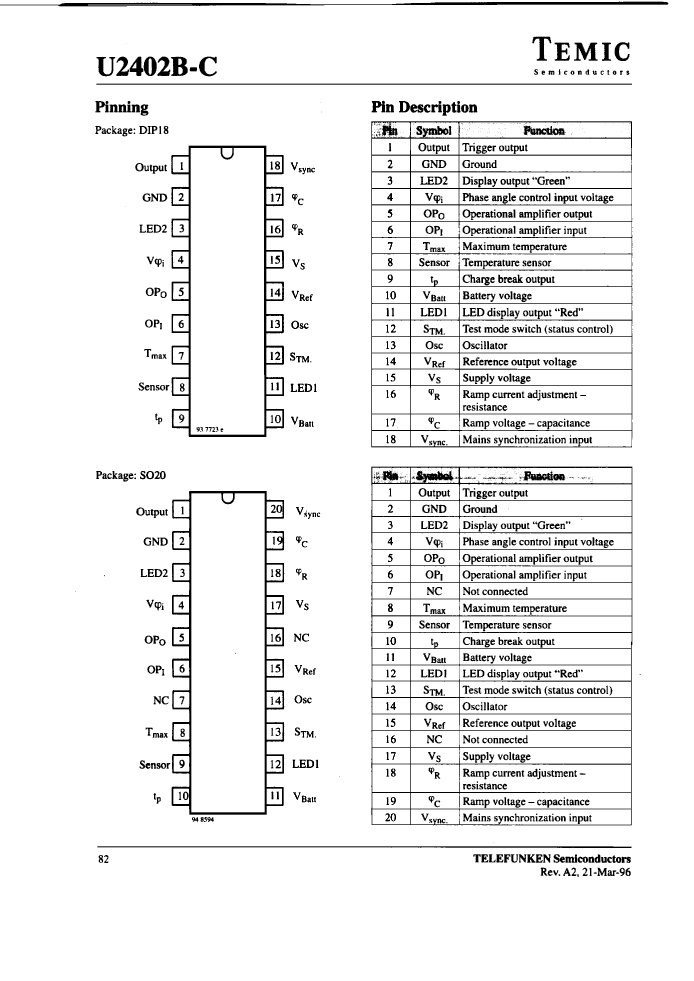

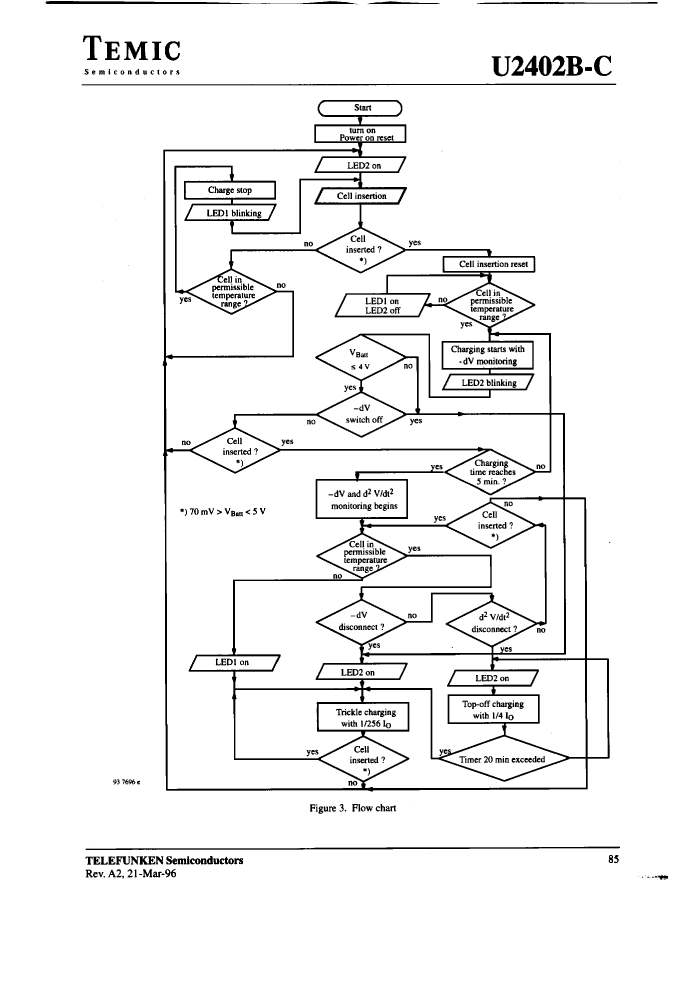

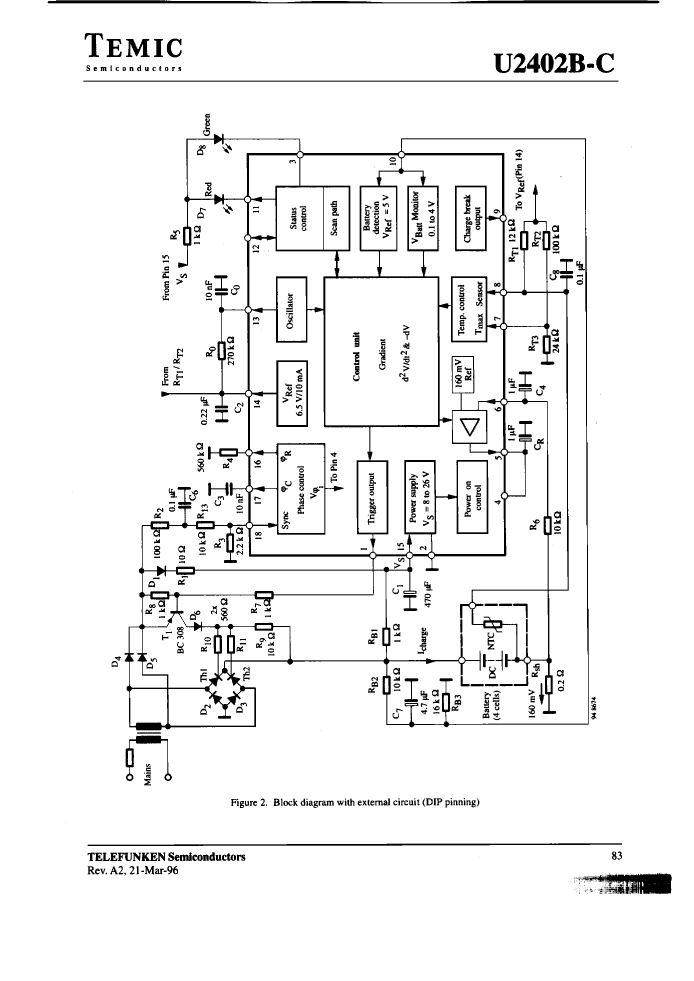

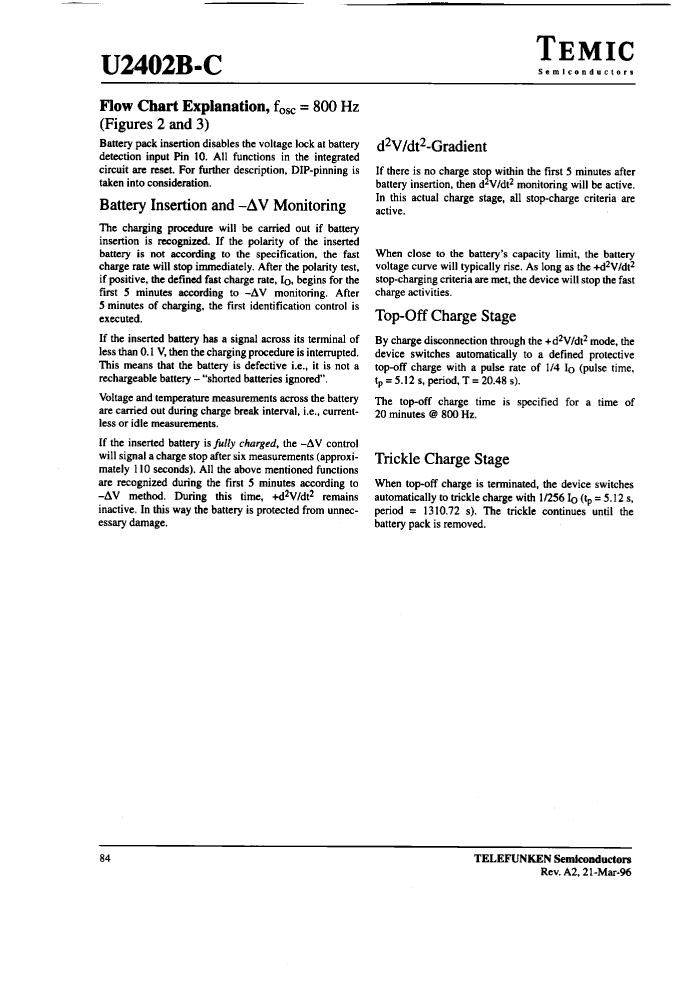

	U2402B-C-FP
Description	Battery Charge Controller, 0.8kHz Switching Freq-Max, BIPolar, PDSO20, SO-20
package instruction	SO-20
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
Maximum input voltage	26 V
Minimum input voltage	8 V
Nominal input voltage	12 V
JESD-30 code	R-PDSO-G20
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	0.8 kHz
technology	BIPOLAR
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
