UDN2993B datasheet, PDF - EEWORLD Datasheet

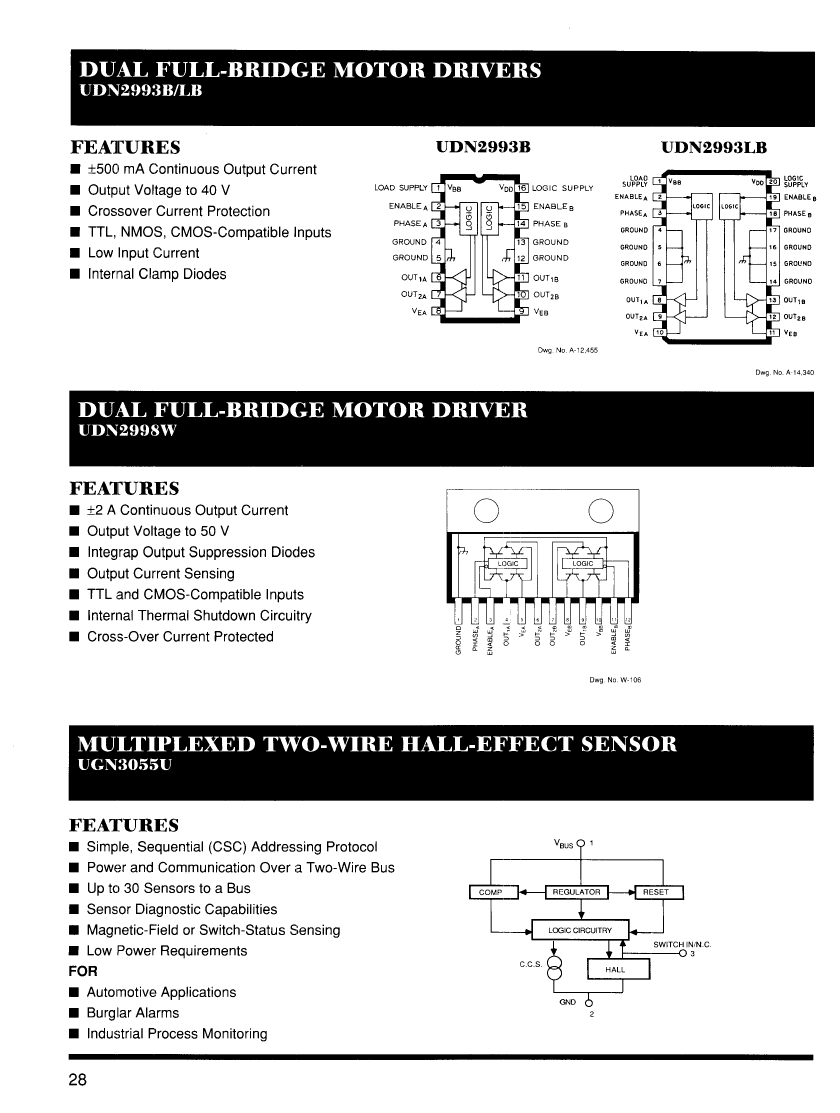

UDN2993B: DescriptionStepper Motor Controller, 0.6A, BIPolar, PDIP16, HEAT SINK, PLASTIC, DIP-16; CategoryOther integrated circuit (IC) The signal circuit; File Size36KB，1 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/

Download Datasheet Parametric Compare View All

UDN2993B Overview

Stepper Motor Controller, 0.6A, BIPolar, PDIP16, HEAT SINK, PLASTIC, DIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	HEAT SINK, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	0.6 A
Package body material	PLASTIC/EPOXY
encapsulated code	HDIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply current (Isup)	3 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	UDN2993B	UGN3055U
Description	Stepper Motor Controller, 0.6A, BIPolar, PDIP16, HEAT SINK, PLASTIC, DIP-16	Hall Effect Sensor, -2.5mT Min, 30mT Max, BICMOS, Plastic/epoxy, Rectangular, 3 Pin, Through Hole Mount, 0.060 INCH, PLASTIC, SIP-3
Is it Rohs certified?	incompatible	incompatible
package instruction	HEAT SINK, PLASTIC, DIP-16	SIP3,.04,50
Reach Compliance Code	unknown	unknown
JESD-609 code	e0	e0
Number of terminals	16	3
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DIP16,.3	SIP3,.04,50
surface mount	NO	NO
technology	BIPOLAR	BICMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1
