86091166324H65E1LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86091166324H65E1LF

86091166324H65E1LF: DescriptionBoard Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size136KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

86091166324H65E1LF Overview

Board Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

86091166324H65E1LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

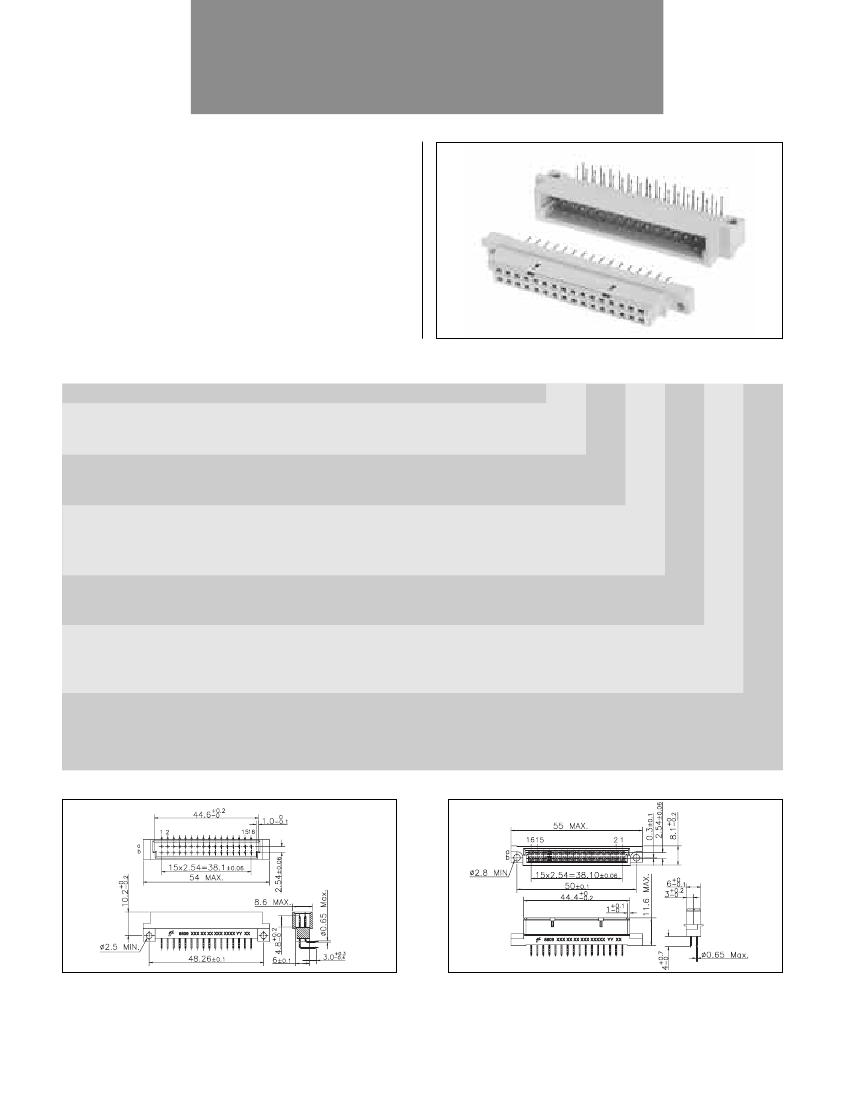

Preview

Download Datasheet

View All

DIN 41612

PCB Signal solder to board

STYLE B/2 CONNECTORS

Solder to board 2 rows

Header

: Right angle

Receptacle : Straight spill

Part number

Series

Rows fitted with contacts *

2 rows a & b

1 row a

Type of insulator

2 rows Header insulator

2 rows Receptacle insulator

Termination *

Right angle spill for Header

Straight spill for Receptacle

: 32 contacts

: 16 contacts

8609

232

116

ELF

☺

: 3 mm

: 4 mm

: 2.5 mm

ELF

000E

E1LF

000E1

☺

Insulator (option)

Harpoon

Without harpoon

Plating performance Class & Pitch *

DIN 41612 class III

: 2.54 mm

DIN 41612 class II

: 2.54 mm

DIN 41612 class I

: 2.54 mm

☺

Gender

Header (RoHS compatible)

Header (non RoHS compatible)

Receptacle (RoHS compatible)

Receptacle (non RoHS compatible)

* For other options, please consult your local FCI representative.
