8-382482-4 datasheet, PDF - EEWORLD Datasheet

8-382482-4: Description84 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET; CategoryThe connector The connector; File Size134KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

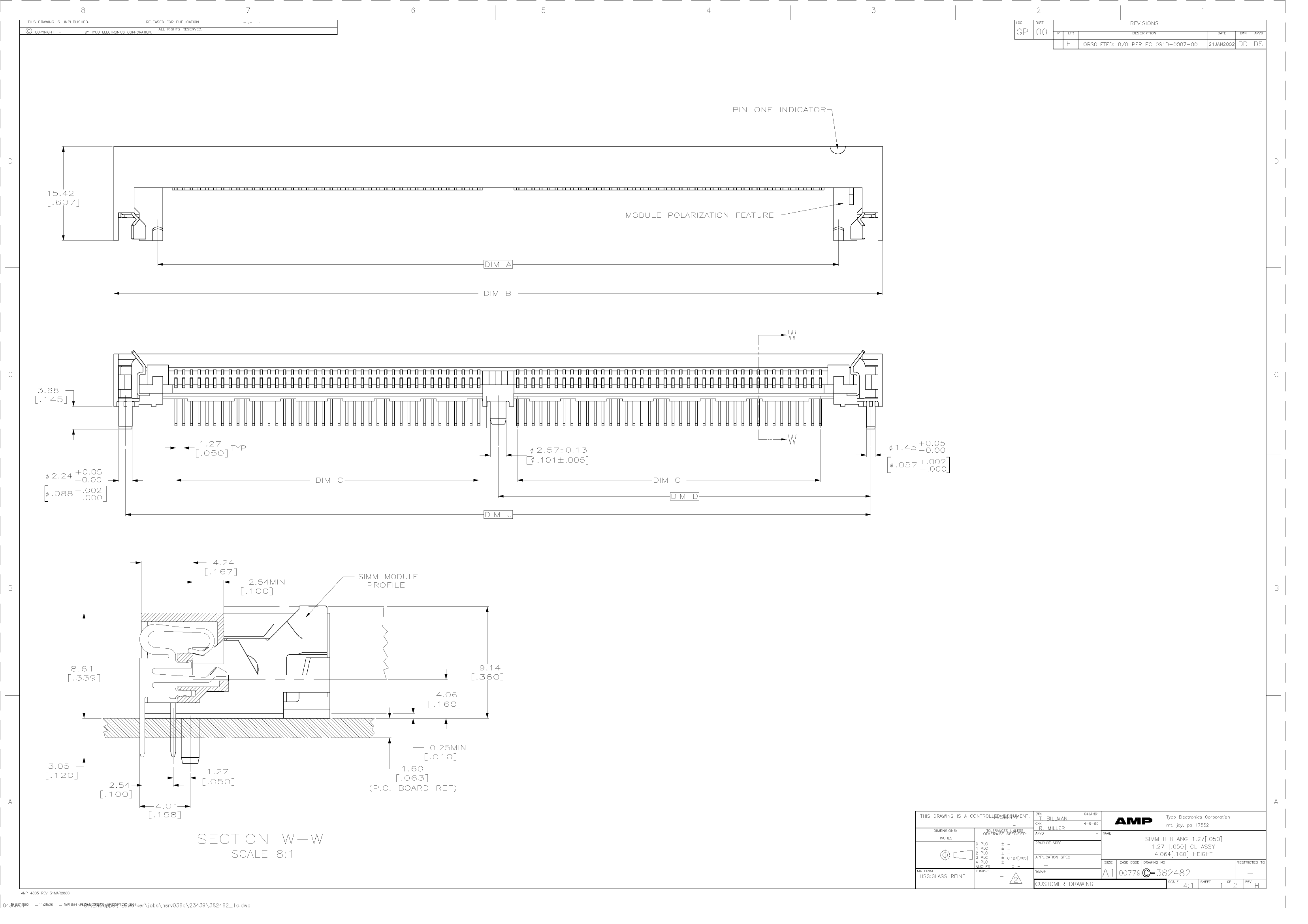

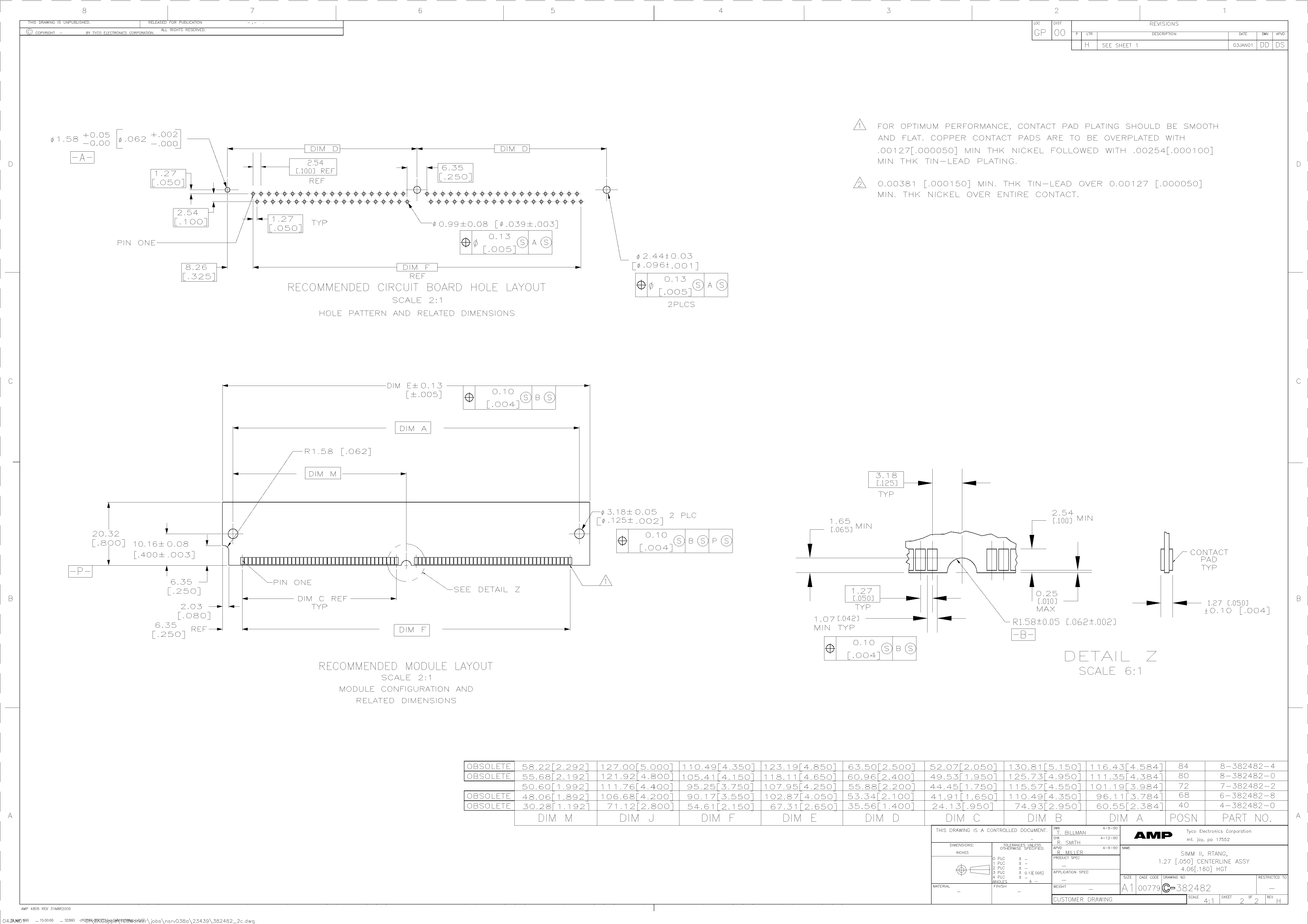

8-382482-4 Overview

84 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1420472899
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	382482
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	84
UL Flammability Code	94V-0

	8-382482-4	4-382482-0	8-382482-0	106-M2-P30-5A
Description	84 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	40 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	80 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	Motors, transformers, solenoids, printed circuit boards, hand-held machines and appliances, marine applications, caravans.
Objectid	1420472899	1420473109	1420472888	-
Reach Compliance Code	unknown	unknown	unknown	-
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	-
Body/casing type	SOCKET	SOCKET	SOCKET	-
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	-
Contact point gender	FEMALE	FEMALE	FEMALE	-
DIN compliance	NO	NO	NO	-
Filter function	NO	NO	NO	-
IEC compliance	NO	NO	NO	-
MIL compliance	NO	NO	NO	-
Mixed contacts	NO	NO	NO	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	BOARD	-
Number of rows loaded	1	1	1	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SOLDER	SOLDER	SOLDER	-
Total number of contacts	84	40	80	-
UL Flammability Code	94V-0	94V-0	94V-0	-
