8313MF: DescriptionRF Connector Adapter, BNC-SMA, Male-Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

8313MF Overview

RF Connector Adapter, BNC-SMA, Male-Female, ROHS COMPLIANT

8313MF Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	BNC-SMA
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	BAYONET-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.5 dB
JESD-609 code	e4
MIL compliance	NO
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

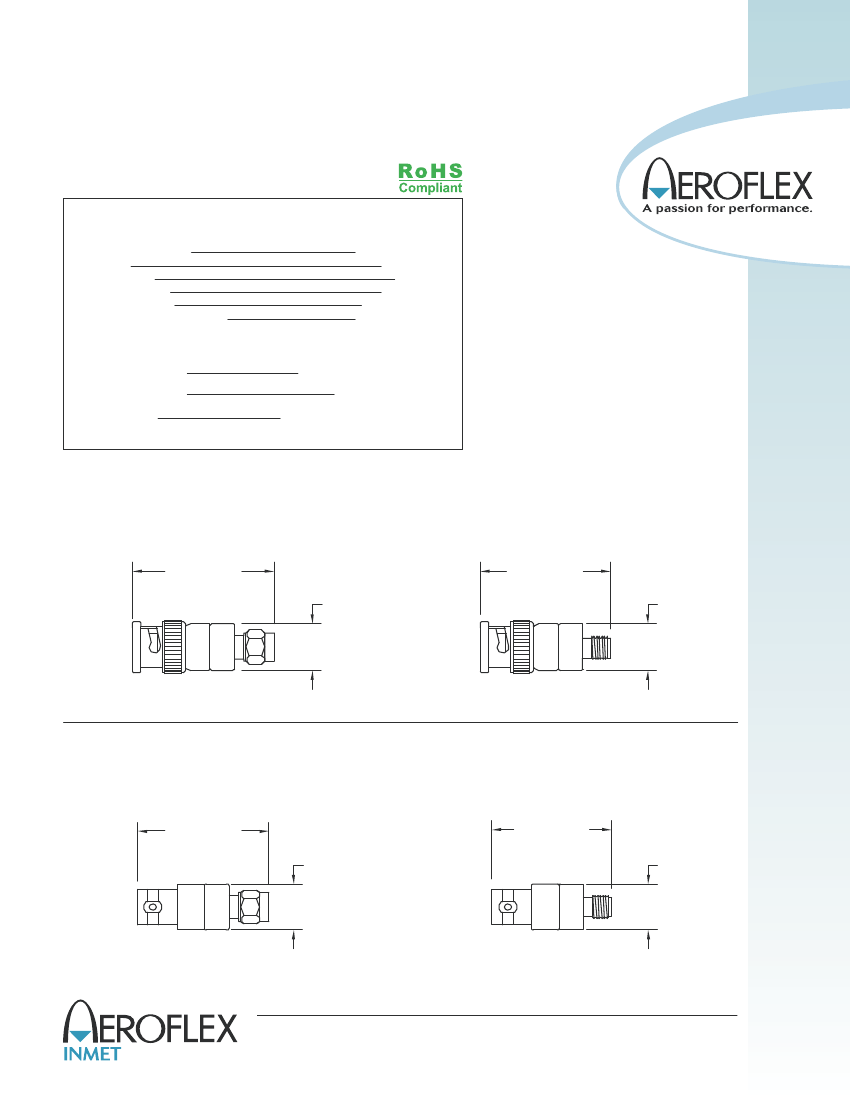

DC BLOCKS, Between Series

BNC / SMA, 10 MHz - 4 Ghz, Inner Only

SPECIFICATIONS:

Models: 83

13

Electrical:

Frequency Range

VSWR

Impedance

Insertion Loss

Voltage Rating

Operating Temp. Range

10 MHz - 4 GHz

1.35:1 Max.

50 Ohms

0.5 dB Max.

100 Volts Max.

-65°C to +125°C

Mechanical:

SMA Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Nickel Plated Brass

Gold Plated Beryllium Copper

BNC Connectors

Mates with MIL

-STD-348

Conductors

Model Number:

8313MM

BNC Male / SMA Male

Model Number:

8313MF

BNC Male / SMA Female

1.52 ±.06

[38.6 ±1.5]

Ø.50 [12.7]

1.39 ±.05

[35.3 ±1.3]

Ø.50 [12.7]

Model Number:

8313FM

BNC Female / SMA Male

Model Number:

8313FF

BNC Female / SMA Female

1.41 ±.05

[35.8 ±1.3]

Ø.50 [12.7]

1.28 ±.05

[32.5 ±1.3]

Ø.50 [12.7]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

83 REV A

13:

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
