TM6509PM: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, T4, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size187KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TM6509PM Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, T4, TO-8, 4 PIN

TM6509PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

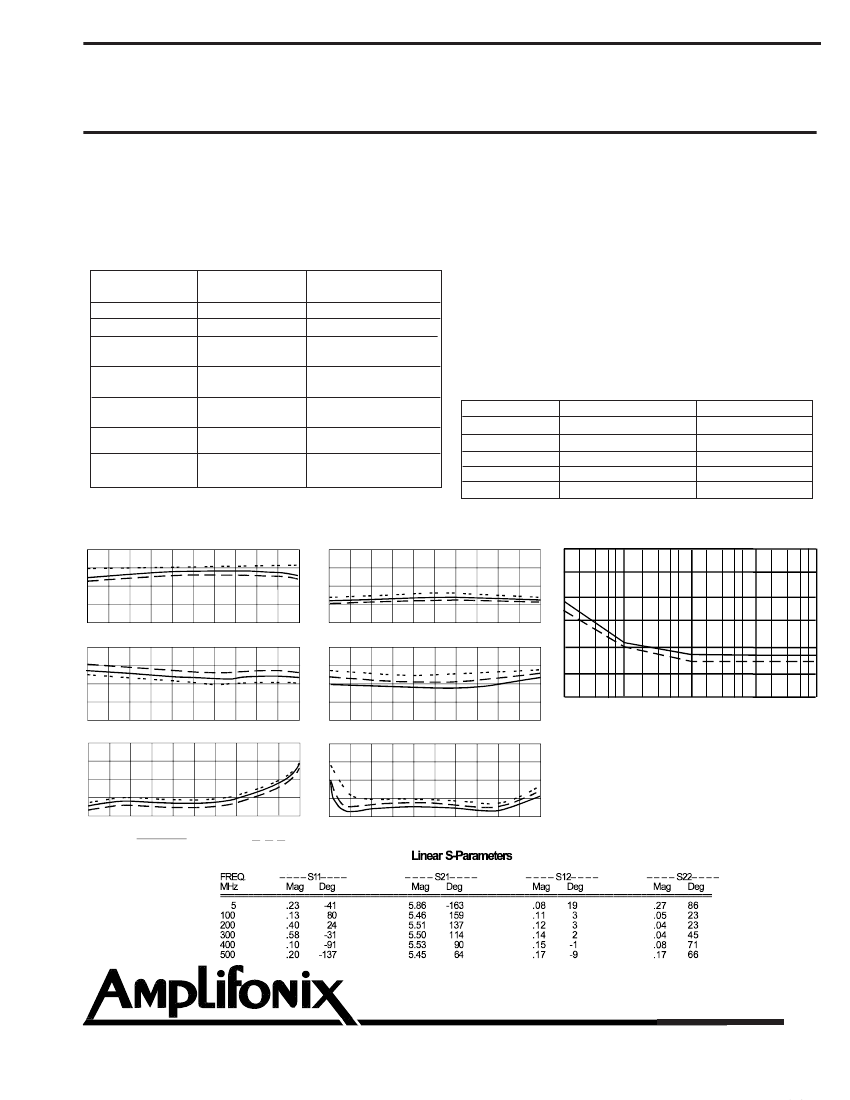

RF AMPLIFIER

MODEL

TM6509PM

Features

■

Superior Phase Noise Performance

■

High Output Power: +23 dBm Typical

■

High Third Order Intercept: +36 dBm Typical

■

Operating Temp. - 55 ºC

to +85

ºC

■

Environmental Screening Available

Available as:

TM6509PM, 4 Pin TO-8 (T4)

TN6509PM, 4 Pin Surface Mount (SM3)

FP6509PM, 4 Pin Flatpack (FP4)

BX6509PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +56 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +50 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 13 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

5 - 500 MHz

14.5

+23

- 18

<1.4:1

<1.2:1

4.6

+15

88

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13.0 Min.

+20

- 15

Min.

Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-156

-170

-175

Guarantee (min.)

-152

-168

-172

2.0:1 Max.

6.0

+15

95

Max.

*

Note: Care should always be taken to effectively ground the case of each unit.

16

15

14

13

12

+24

+23

+22

+21

+20

2.0

1.5

1.0

Start 5 MHz

Gain (dB)

Typical Performance Data

+ 10

0

- 10

- 20

Reverse Isolation (dB)

-130

-140

-150

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Stop 500 MHz

- 30

7

6

5

4

3

2.0

1.5

Start 5 MHz

-160

Stop 500 MHz

Noise Figure (dB)

-170

-180

-190

100

1K

10K

100K

1M

Input VSWR

Stop 500 MHz

Start 5 MHz

Output VSWR

Stop 500 MHz

_________Guarantee __ __ __ __Typical

Test

*

Residual Phase Noise

MHz

Conditions

Carrier Frequency: 500

Power Output: +23 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

1.0

Start 5 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

03/31/04
