Data sheet
OMNIMATE Signal - series BL/SL 5.08
BLF 5.08HC/10/180 SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

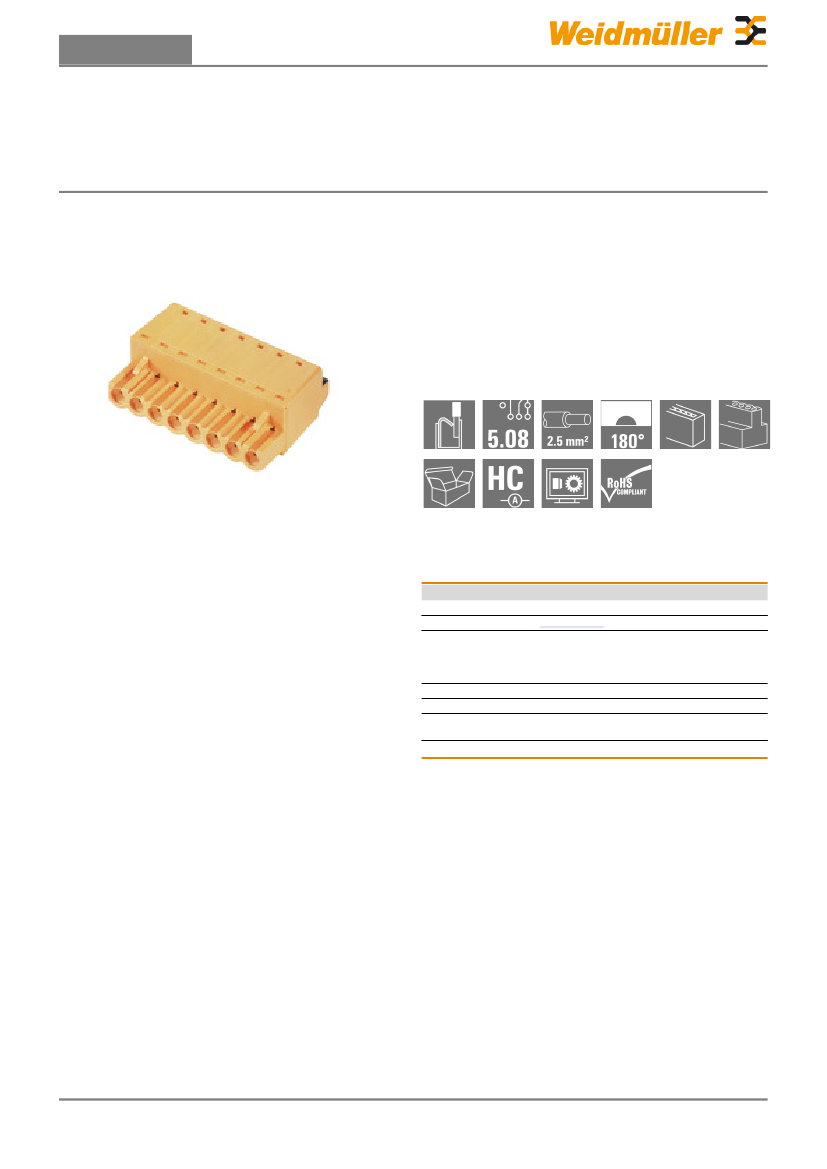

Product image
Just as reliable as the millionfold proven original and
featuring innovative details:
The BLF 5.08HC PUSH IN version of the BLZP 5.08HC
female connector is not only different in terms of
connection system; it also has a more compact design.
Weidmüller's innovative PUSH IN spring connection
system stands for the future of easy and tool-free wire
connection. HC = High Current.
In terms of versatility, the BLF 5.08HC offers just as much
as the version which served as a model:
• 3 tested-and-proven wire outlet directions provide the
usual flexibility for application-specific design
• 4 flange variations and the patented release latch allow
the locking concept to be based on the requirements of
the user
• Use the BLF 5.08HC and SL 5.08HC plug combination
to reach the max. rated specifications
Similar to illustration
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
BLF 5.08HC/10/180 SN OR BX
1013770000
PCB plug-in connector, female plug, 5.08 mm,
Number of poles: 10, 180°, PUSH IN, Spring
connection, Clamping range, max. : 3.31 mm²,
Box
4032248721887
36 pc(s).
IEC: 400 V / 24 A / 0.2 - 2.5 mm²
UL: 300 V / 18.5 A / AWG 26 - AWG 12
Box
Creation date March 20, 2020 5:46:10 AM CET
Catalogue status 06.03.2020 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Signal - series BL/SL 5.08
BLF 5.08HC/10/180 SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
50.8 mm
14.2 mm
27.7 mm
19.889 g
Width (inches)
Height (inches)
Depth (inches)
Dimensions and weights
Width
Height
Depth
Net weight
2 inch
0.559 inch
1.091 inch
System Parameters
Product family
OMNIMATE Signal - series
BL/SL 5.08
PUSH IN, Spring
connection
0.2 inch
10
1.8 inch
1
Safe from finger touch
≤ 5mΩ
10 mm
DIN 5264
7N
Type of connection
Pitch in mm (P)
Conductor outlet direction
L1 in mm
Number of rows
Rated cross-section
Touch-safe protection acc. to DIN VDE
0470
Can be coded
Screwdriver blade
Plugging cycles
Pulling force/pole, max.
Field connection
5.08 mm
180°
45.72 mm
1
2.5 mm²
IP 20
Yes
0.6 x 3.5
25
5.5 N
Wire connection method
Pitch in inches (P)
Number of poles
L1 in inches
Pin series quantity
Touch-safe protection acc. to DIN VDE
57 106
Volume resistance
Stripping length
Screwdriver blade standard
Plugging force/pole, max.
Material data
Insulating material
Colour of operational elements
Colour chart (similar)
Comparative Tracking Index (CTI)
PBT
black
RAL 2000
UL 94 flammability rating
Contact material
Layer structure of plug contact
Storage temperature, max.
Operating temperature, min.
Temperature range, installation, min.
≥ 200
V-0
CuSn
4-8 µm Sn hot-dip tinned
55 °C
-50 °C
-30 °C
Colour
Material of operational elements
Insulating material group
Insulation strength
orange
PBT
IIIa
GWFI
Contact surface
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
Temperature range, installation, max.
≥ 10
8
Ω
960 °C
tinned
-25 °C
80 %
100 °C
100 °C
Conductors suitable for connection
Clamping range, min.
0.13 mm²
Clamping range, max.
3.31 mm²
Wire connection cross section AWG,
AWG 26
min.
Wire connection cross section AWG,
AWG 12
max.
Solid, min. H05(07) V-U
0.2 mm²
Solid, max. H05(07) V-U
2.5 mm²
Flexible, min. H05(07) V-K
0.2 mm²
Flexible, max. H05(07) V-K
2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, 0.25 mm²
min.
w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm²
max.
w. wire end ferrule, DIN 46228 pt 1,
0.25 mm²
min.
w. wire end ferrule, DIN 46228 pt 1,
2.5 mm²
max.
Creation date March 20, 2020 5:46:10 AM CET
Catalogue status 06.03.2020 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Signal - series BL/SL 5.08
BLF 5.08HC/10/180 SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
2.8 mm x 2.0 mm
Cross-section for conductor connection
Plug gauge in accordance with EN
60999 a x b; ø
Clampable conductor
Reference text
Max. clamping range
Type
fine-wired
nominal
0.5 mm²
Stripping length
nominal 12 mm
wire end ferrule
Recommended wire-
H0,5/16 OR
end ferrule
nominal 10 mm
Stripping length
Recommended wire-
H0,5/10
end ferrule
Type
fine-wired
Cross-section for conductor connection
nominal
0.75 mm²
Stripping length
nominal 12 mm
wire end ferrule
Recommended wire-
H0,75/16 W
end ferrule
nominal 10 mm
Stripping length
Recommended wire-
H0,75/10
end ferrule
Type
fine-wired
Cross-section for conductor connection
nominal
1 mm²
Stripping length
nominal 12 mm
wire end ferrule
Recommended wire-
H1,0/16D R
end ferrule
nominal 10 mm
Stripping length
Recommended wire-
H1,0/10
end ferrule
Type
fine-wired
Cross-section for conductor connection
nominal
1.5 mm²
Stripping length
nominal 10 mm
wire end ferrule
Recommended wire-
H1,5/10
end ferrule
nominal 12 mm
Stripping length
Recommended wire-
H1,5/16 R
end ferrule
Type
fine-wired
Cross-section for conductor connection
nominal
2.5 mm²
Stripping length
nominal 10 mm
wire end ferrule
Recommended wire-
H2,5/10
end ferrule
The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules
is to be chosen depending on the product and the rated voltage.
3.31 mm²
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
19 A
16.5 A
320 V
4 kV
4 kV
Rated current, min. number of poles
(Tu=20°C)
Rated current, min. number of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
Short-time withstand current resistance
24 A
21 A
400 V
250 V
4 kV
3 x 1s with 120 A
Rated current, max. number of poles
(Tu=20°C)
Rated current, max. number of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Creation date March 20, 2020 5:46:10 AM CET
Catalogue status 06.03.2020 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Signal - series BL/SL 5.08
BLF 5.08HC/10/180 SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Certificate No. (CSA)
Rated data acc. to CSA
Institute (CSA)
Rated voltage (Use group B / CSA)
Rated current (Use group D / CSA)
Wire cross-section, AWG, max.
300 V
10 A
AWG 12
Rated voltage (Use group D / CSA)
Wire cross-section, AWG, min.
Reference to approval values
200039-1121690
300 V
AWG 26
Specifications are
maximum values, details -
see approval certificate.
Rated data acc. to UL 1059
Institute (cURus)
Certificate No. (cURus)
E60693
Rated voltage (Use group D / UL 1059) 300 V
Rated current (Use group D / UL 1059) 10 A
Wire cross-section, AWG, max.
AWG 12
Rated voltage (Use group B / UL 1059)
Rated current (Use group B / UL 1059)
Wire cross-section, AWG, min.
Reference to approval values
300 V
18.5 A
AWG 26
Specifications are
maximum values, details -
see approval certificate.
Packing
Packaging
VPE width
Box
135 mm
VPE length
VPE height
35 mm
350 mm
Classifications
ETIM 6.0
eClass 9.0
eClass 10.0
EC002638
27-44-03-09
27-44-03-09
ETIM 7.0
eClass 9.1
EC002638
27-44-03-09
Notes
Notes
• Additional colours on request
• Gold-plated contact surfaces on request
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• P on drawing = pitch
• Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
• The test point can only be used as potential-pickup point.
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
IPC conformity
Creation date March 20, 2020 5:46:10 AM CET
Catalogue status 06.03.2020 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Signal - series BL/SL 5.08
BLF 5.08HC/10/180 SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
ROHS
Conform
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
Engineering Data
Engineering Data
White paper PUSH IN wire connection
Declaration of the Manufacturer
FL DRIVES EN
MB DEVICE MANUF. EN
FL DRIVES DE
CAT 2 PORTFOLIOGUIDE EN
FL BUILDING SAFETY EN
FL APPL LED LIGHTING EN
FL INDUSTR.CONTROLS EN
FL MACHINE SAFETY EN
FL HEATING ELECTR EN
FL APPL_INVERTER EN
FL_BASE_STATION_EN
FL ELEVATOR EN
FL POWER SUPPLY EN
FL 72H SAMPLE SER EN
PO OMNIMATE EN
EPLAN, WSCAD, Zuken E3.S
STEP
Download Whitepaper
Creation date March 20, 2020 5:46:10 AM CET
Catalogue status 06.03.2020 / We reserve the right to make technical changes.
5
