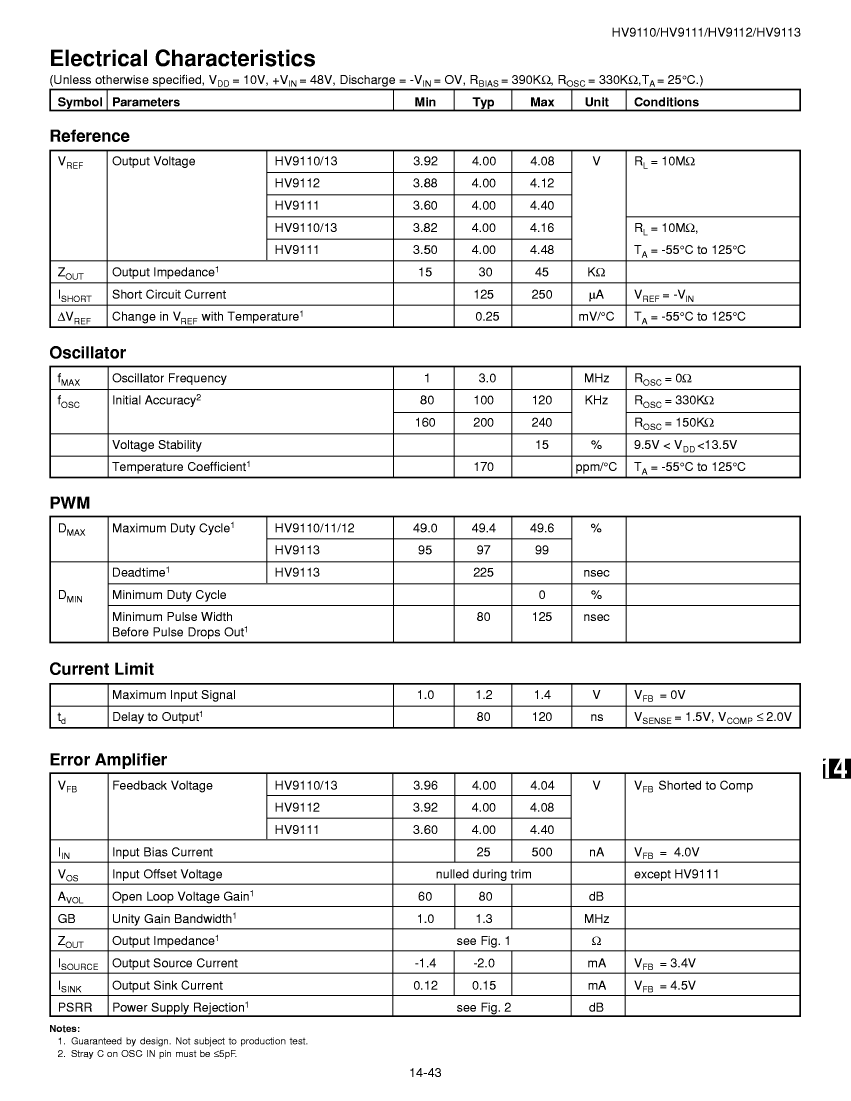

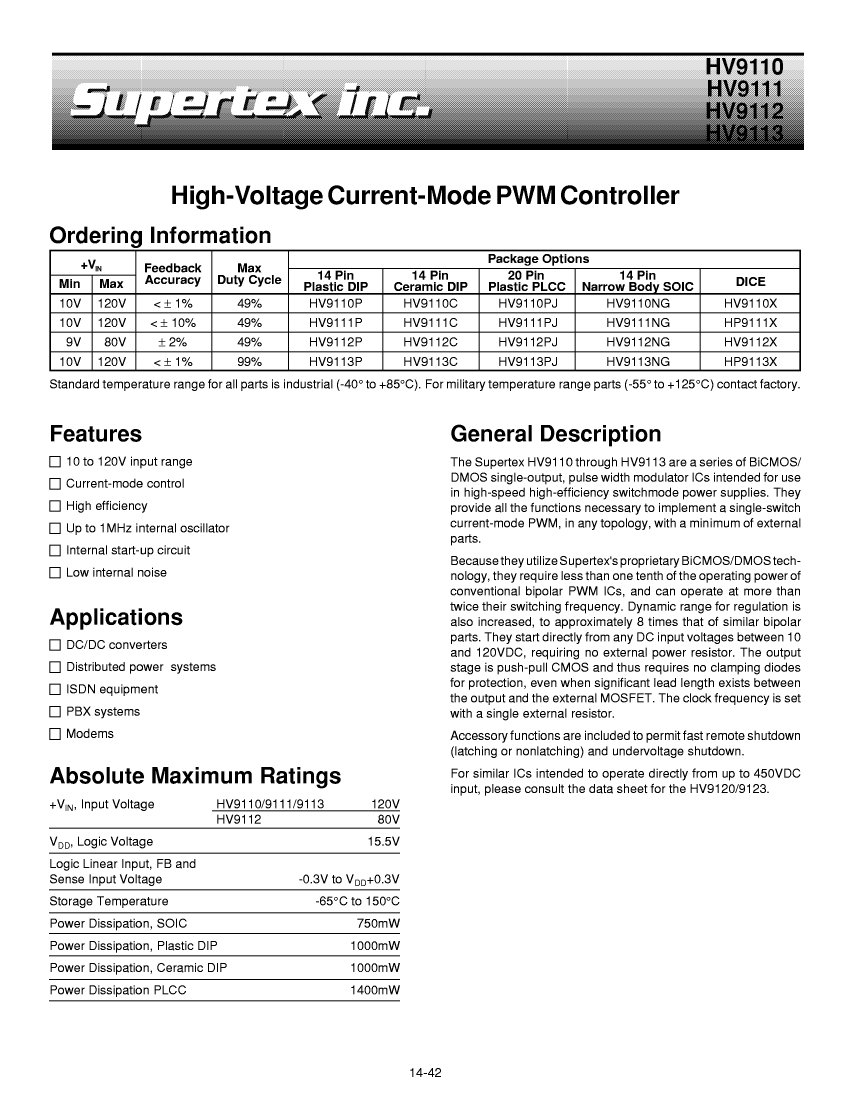

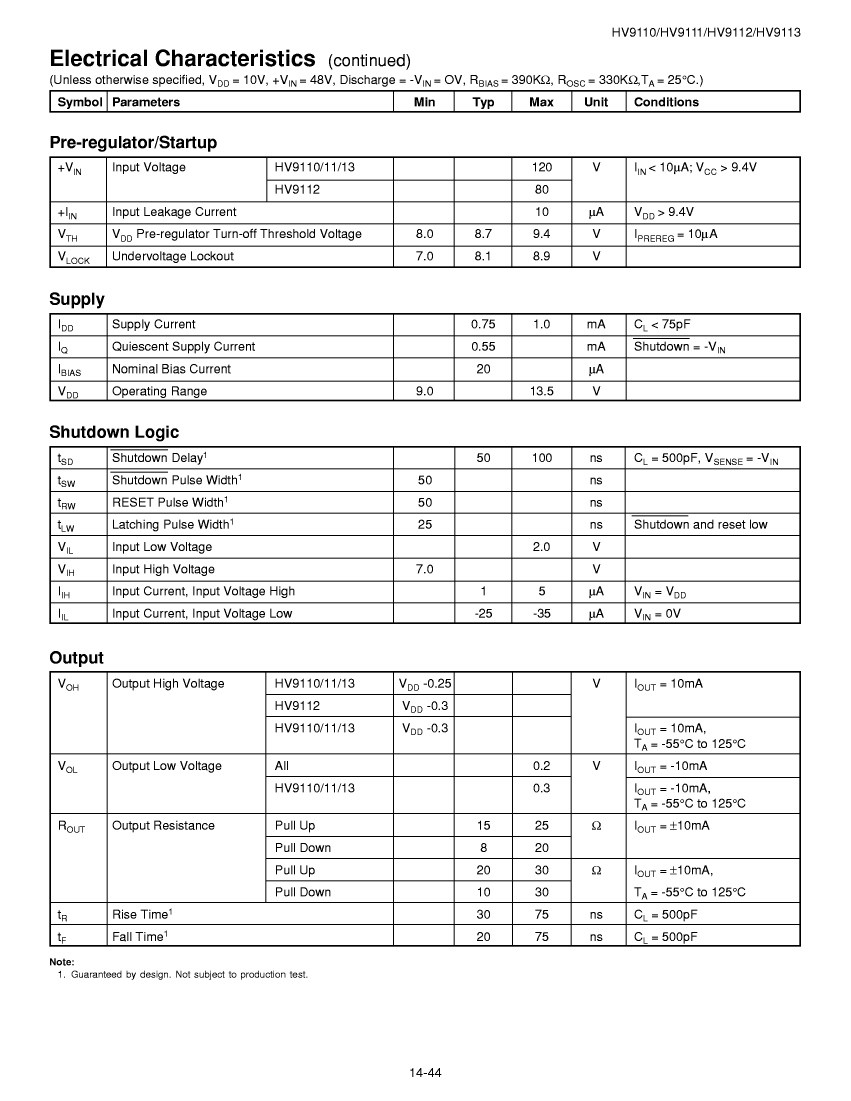

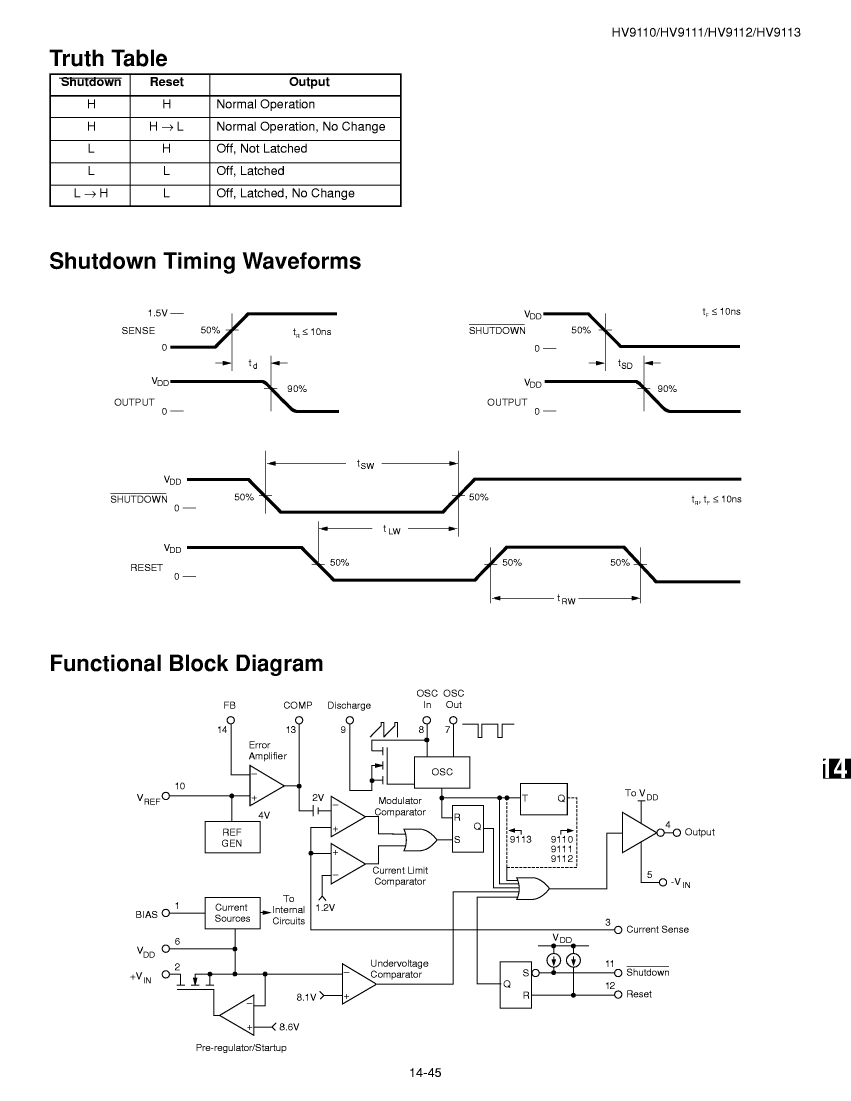

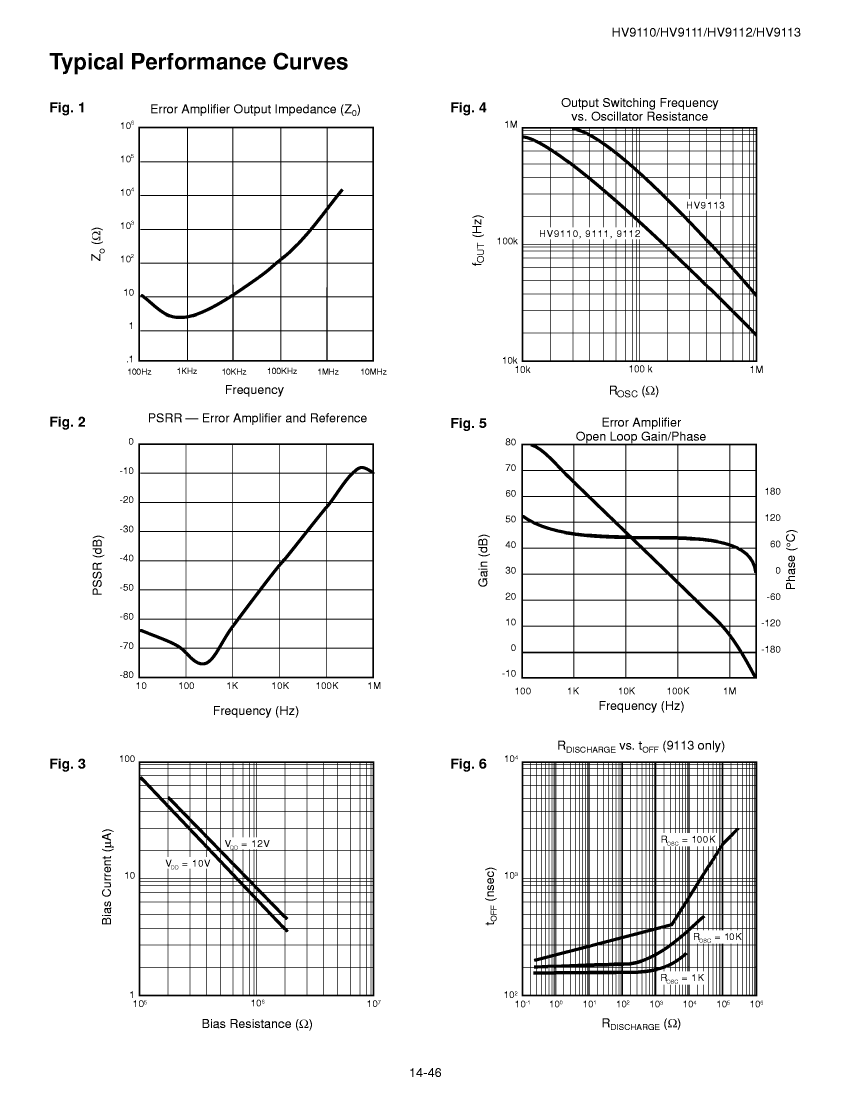

Preview

HV9111P: DescriptionSwitching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-14; CategoryPower/power management The power supply circuit; File Size339KB，7 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

HV9111P Overview

Switching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-14

HV9111P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	120 V
Minimum input voltage	10 V
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	19.304 mm
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.01 A
Nominal output voltage	4 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.318 mm
Maximum supply current (Isup)	1 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1000 kHz
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HV9111P Related Products

	HV9111P	HV9110C	HV9111C	HV9112C	HV9113C
Description	Switching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-14	Switching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, CDIP14, CERAMIC, DIP-14	Switching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, CDIP14, CERAMIC, DIP-14	Switching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, CDIP14, CERAMIC, DIP-14	Switching Controller, Current-mode, 0.01A, 1000kHz Switching Freq-Max, BICMOS, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	120 V	120 V	120 V	80 V	120 V
Minimum input voltage	10 V	10 V	10 V	9 V	10 V
JESD-30 code	R-PDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0
length	19.304 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm
Number of functions	1	1	1	1	1
Number of terminals	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
Nominal output voltage	4 V	4 V	4 V	4 V	4 V
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.318 mm	3.683 mm	3.683 mm	3.683 mm	3.683 mm
Maximum supply current (Isup)	1 mA	1 mA	1 mA	1 mA	1 mA
surface mount	NO	NO	NO	NO	NO
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	-	Supertex	Supertex	Supertex	Supertex
