REVISION H
DO NOT
SCALE FROM
THIS PRINT

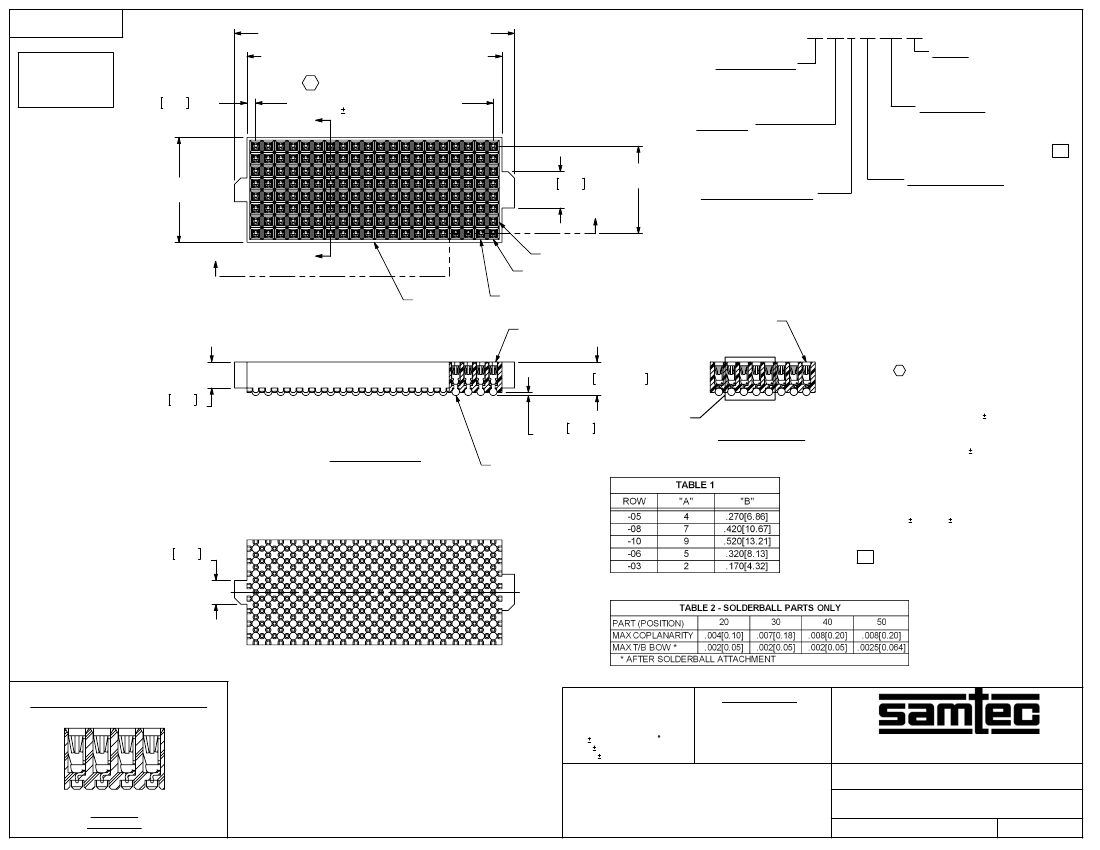

(No OF POS x .0500[1.270]) + .120[3.05] REF
(No OF POS x .0500[1.270]) + .020[.51] REF
C1
YFS-XX-X3-X-XX-XSB-XX
No OF POSITIONS
-20, -30, -40, -50
(PER ROW)
OPTION
-K: KAPTON PAD
(SEE FIG. 2, SHT. 2)
-TR: TAPE & REEL
SOLDER BALLS
-SB: SOLDER BALL
(USE SDB-030-6337)
-MSB: MODIFIED SOLDER BALL
(USE SDB-030-9653, Pb
H
FREE,SEE NOTE 14)
.035 0.89 REF
((No OF POS -1) x .0500[1.270]))
.0020[.051]
"B"
"B"
REF
.145 3.68
REF
"A" EQ SPACES
@ .0500[1.270]
"A"
LEAD STYLE
-03: PIN / SOLDERBALLS
(USE C-140-03-X, SEE FIG. 1)
-L3: PIN / SOLDERBALLS
(LOW INSERTION FORCE)
(USE C-226-03-X)
PLATING SPECIFICATION
-G: GOLD (USE C-XXX-03-G)
(SEE NOTE 7)
-H: HEAVY GOLD (USE C-XXX-03-H)
-E: EXTRA GOLD (USE C-XXX-03-E)
(SEE NOTE 7)
*
"A"
"B"
01
YFSP-XX-01-X
02
ROW SPECIFICATION
-05: FIVE (USE YFSP-XX-01-F)
-08: EIGHT (USE YFSP-XX-01-E)
-10: TEN (USE YFSP-XX-01-T)
-06: SIX (USE YFSP-XX-01-6)
(AVAILABLE IN 20 POS. ONLY)
-03: THREE (USE YFSP-XX-01-3)
(AVAILABLE IN 20 POS. ONLY)
09 (PIN # = NO. OF ROWS +1)
C-XXX-03-X
SEE NOTE 6
* = NOT ENGINEERING APPROVED
NOTES:
.134±.003 3.41±0.08
.104 2.64
REF
'A'
SECTION "A"-"A"
.012 0.31
(SEE NOTE 9)
SDB-030-XXXX
SECTION "B"-"B"
.095 2.41
REF
H
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED.
3. BURR ALLOWANCE: .0005[0.013] MAX.
4. MINIMUM PUSHOUT FORCE: .5 LB.
5. NOTE DELETED.
6. CONTACT TO BE FLUSH .002[0.05] RECESSED.
7. ONE REEL MINIMUM PLATING REQUIREMENT
(85,000 CONTACTS PER REEL)
8. ALL DIMS TO BE SYMMETRICAL ABOUT THE
CENTERLINE WITHIN .001[0.03].
9. .0025[0.064] MAX VARIATION BETWEEN
SOLDERBALLS.
10. REFER TO VISUAL INSPECTION BOARD FOR
SOLDERBALL APPEARANCE CHECKS.
11. THE DISTANCE FROM THE CENTER OF ANY
SOLDERBALL TO THE CENTER OF ANY
ADJACENT INNER PEG SHALL BE
.025 .005[0.64 0.13].
12. SOLDER JOINTS TO BE INSPECTED PER IPC
SPECIFICATION 12.2.12 (IPC-A-610C).
13. NOTE DELETED
14. CONTACT SAMTEC CES DEPARTMENT FOR
PROCESSING INFORMATION.
IN-PROCESS WITHOUT SOLDERBALLS
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: PHOS BRONZE
.050[1.27] MULTI-ROW SOCKET ASM.
DETAIL 'A'
SCALE 5 : 1
YFS-XX-X3-X-XX-XSB-XX
4/22/99
SHEET
1
OF
2
F:\dwg\misc\mktg\YFS-XX-X3-X-XX-XSB-XX-MKT.SLDDRW
BY:
KEVIN B
REVISION H

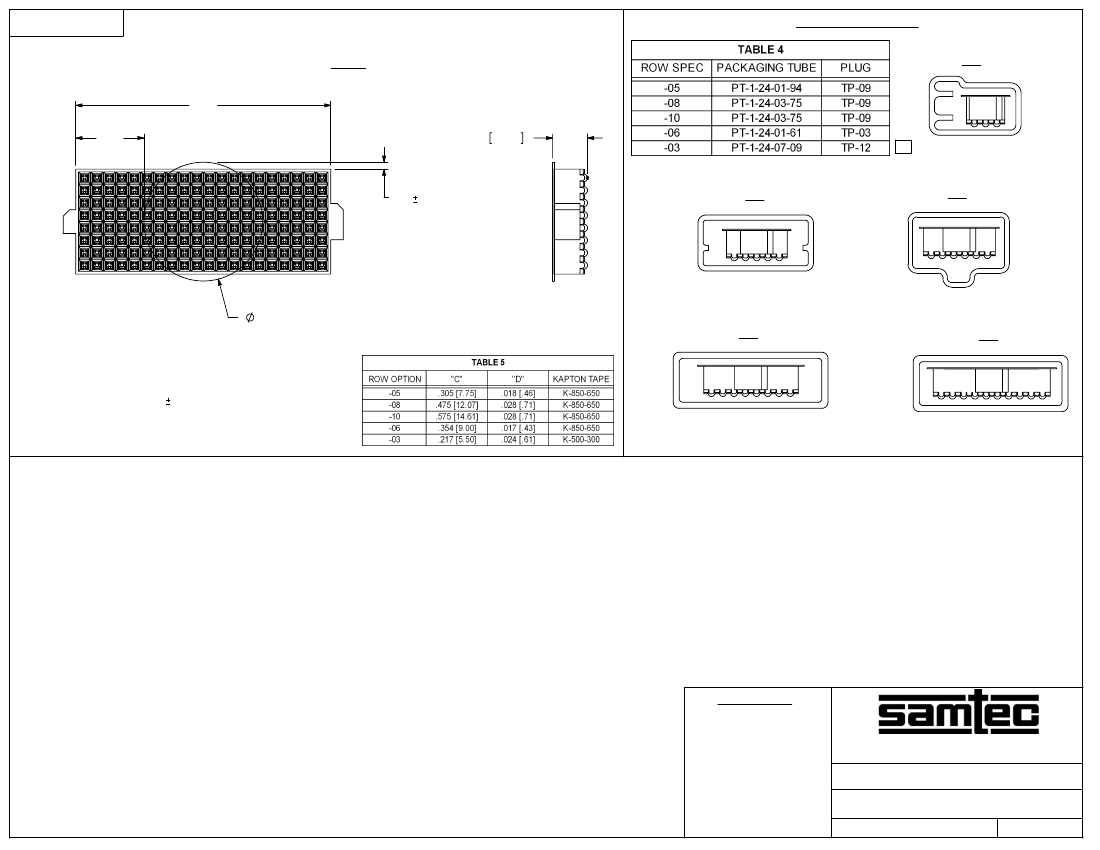

-K: KAPTON PAD OPTION
"R"
"S"
.139 3.541
PACKAGING VIEWS
FIG. 2
-03
H
-05
-06
"D" .010[0.25]
"C"
-08
-10
R = (No OF POS x .0500[1.270]) + .020[.51]
S = ("R" - "C" / 2) .020[.51]
F:\dwg\misc\mktg\YFS-XX-X3-X-XX-XSB-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
.050[1.27] MULTI-ROW SOCKET ASM.
YFS-XX-X3-X-XX-XSB-XX
4/22/99
SHEET
2
OF
2
BY:
KEVIN B
