810F-11-212: Description.079 (2mm) Dual Row Through Hole Vertical Headers; File Size84KB，1 Pages; ManufacturerETC

Download Datasheet View All

810F-11-212 Overview

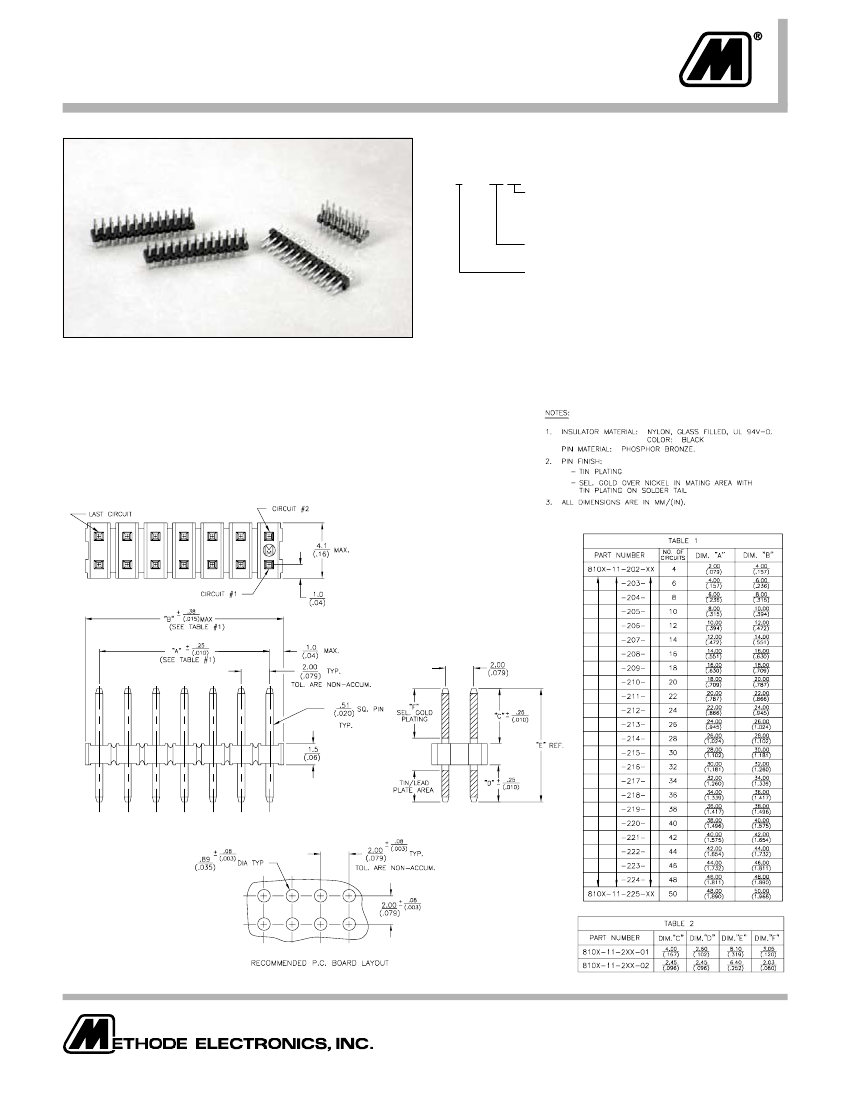

.079 (2mm) Dual Row Through Hole Vertical Headers

.079” (2mm) Dual Row

Through Hole Vertical Headers

8100 SERIES “POST/BOXE”

PART NUMBER LEGEND

810X-11-2XX-XX

PIN LENGTH

DIM C

1 =4.00 (1.57)

7 =.050 (1.27)

2 - 25

DIM D

2.60 (.102)

2.45 (.096)

DIM E

8.10 (.319)

6.40 (.252)

NUMBER OF POSITIONS PER ROW

CONTACT FINISH

0 =TIN/LEAD

8 =.000030 SELECTIVE GOLD

F =.000015 SELECTIVE GOLD

MATING CONNECTORS: 8000 SERIES

(REF.)

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
