RLD-2220-16-640 datasheet, PDF

Datasheet> All Categories > Power management> transformer> RLD-2220-16-640

RLD-2220-16-640: DescriptionPower Transformer, 10VA, ROHS COMPLIANT; CategoryPower management transformer; File Size962KB，3 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric View All

RLD-2220-16-640 Overview

Power Transformer, 10VA, ROHS COMPLIANT

RLD-2220-16-640 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PCB MOUNTABLE
Center click function 1	NO
Center click function 2	NO
high	41.27 mm
Insulation voltage	1500 V
length	47.6 mm
Manufacturer's serial number	RLD-2220
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Maximum operating frequency	0.5 kHz
Minimum operating frequency	0.05 kHz
Output current 1	1.28 A
Output current 2	0.64 A
Output voltage 1	8 V
Output voltage 2	8 V
physical size	47.6mm X 36.5mm X 41.27mm
main rating	DUAL 115/230V
surface mount	NO
Transformer type	POWER TRANSFORMER
VA rating	10 VA
width	36.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

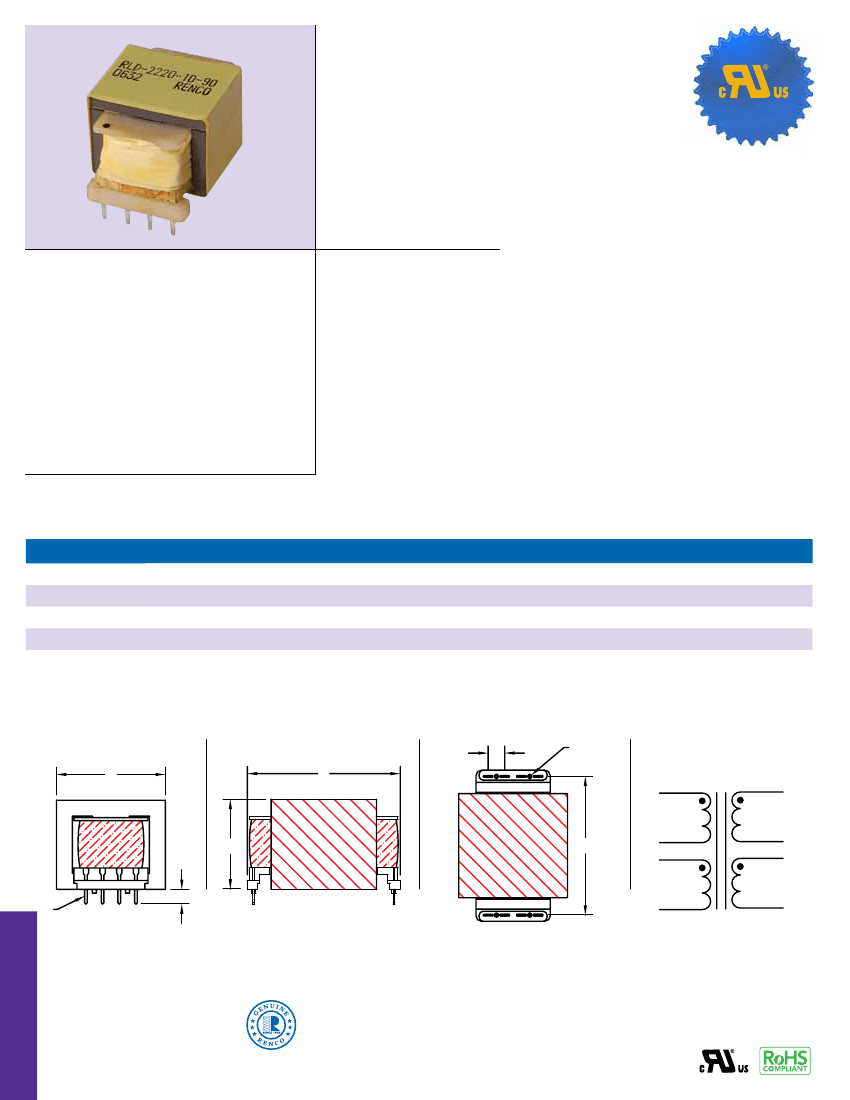

SAFETY

RLD-2220

DESCRIPTION

• PCB Mount

• Low Power Transformers

UL RECOGNIZED

E132629

PCB MOUNT TRANSFORMERS

FEATURES & APPLICATIONS

• This series of PCB mount low power are designed to operate

between 50 and 500 Hz without any loss of output voltage

• These transformers are available in ratings of 1.0 VA, 1.2 VA,

4.4 VA, 10.0 VA and 24.0 VA

• Single or dual primaries 50/500Hz and input range of

(115 V or 115/230 V - 50/500 Hz)

• Secondaries in series or parallel

• Hipot tested at 1500 VRMS

• Manufactured to class B insulation (130°C)

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 493

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RLD-2220-1.0

RLD-2220-1.2

RLD-2220-4.4

RLD-2220-10

RLD-2220-24

A (MAX.)

1.00 (25.40)

1.37 (34.80)

1.62 (41.30)

1.87 (47.60)

1.62 (41.30)

B (MIN.)

0.1875 (4.76)

C (MAX.)

0.83 (21.08)

1.18 (29.97)

1.37 (34.92)

1.62 (41.27)

1.37 (34.93)

D (MAX.)

1.37 (34.80)

1.12 (28.45)

1.25 (31.80)

1.43 (36.50)

2.25 (57.20)

E (TYP.)

0.06 (1.52)

F (TYP.)

1.22 (30.99)

1.03 (26.20)

1.13 (28.70)

1.33 (33.78)

2.13 (54.10)

G (8 PIN)

0.200 (5.08)

0.250 (6.35)

FRONT VIEW

SIDE VIEW

BOTTOM VIEW

(4PL)

SCHEMATIC

115V

50-500Hz

1 2 3 4

DIMENSION

0.050 (1.27) (8PL)

115V

50-500Hz

AN OPTIONAL “SLIDE ON” MOUNTING BRACKET IS AVAILABLE FOR SIZES 10

& 24. THE BRACKETS DO NOT USE UP ANY EXTRA “PCB SPACE” BUT ADD

1/32” TO THE HEIGHT OF THE TRANSFORMER

TRANSFORMERS

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
