FEATURES
High Efficiency:
89.5% @ 12Vin, 3.3V/6A out
Small size and low profile:
1.10” x 0.45” x 0.29” (SMD)
1.00” x 0.50” x 0.26” (SIP)
Standard footprint
Voltage and resistor-based trim
Pre-bias startup
Voltage tracking
No minimum load required
Output voltage programmable from
0.75Vdc to 5.0Vdc via external resistors
Fixed frequency operation
Input UVLO, Output OTP, OCP
Remote ON/OFF
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS18001 certified manufacturing
facility
UL/cUL 60950-1 (US & Canada)
Recognized, and TUV (EN60950-1)
Certified
CE mark meets 73/23/EEC and 93/68/EEC
directives
Delphi series DNS10, Non-Isolated Point of Load
DC/DC Power Modules: 8.3-14Vin, 0.75V-5.0Vout, 6A out
The Delphi series DNS10, 8.3V~14V input, single output, non-isolated point of
load DC/DC converters are the latest offering from a world leader in power
systems technology and manufacturing -- Delta Electronics, Inc. The DNS
series provides a programmable output voltage from 0.75V to 5.0V using an
external resistor. The DNS converters have flexible and programmable tracking
and sequencing features to enable a variety of startup voltages as well as
sequencing and tracking between power modules. This product family is
available in a surface mount or SIP package and provides up to 6A of current in
an industry standard footprint. With creative design technology and optimization
of component placement, these converters possess outstanding electrical and
thermal performance and extremely high reliability under highly stressful
operating conditions.
OPTIONS
Negative On/Off logic
Tracking feature
Surface mount and SIP packages
APPLICATIONS
Telecom/DataCom
Distributed power architectures
Servers and workstations
LAN/WAN applications
Data processing applications
DATABRIEF
DB_DNS10_03092009
SPECIFICATIONS
GENERAL SPECIFICATIONS
Input Voltage
Switching Frequency
Turn-on time
OTP
Size
Typical
Typical
Typical
Typical
Typical
12V (8.3V ~ 14.0V)
300KHz
7 mS
120°C
1.10” x 0.45” x 0.29” (SMD)
1.00” x 0.50” x 0.26” (SIP)
OUTPUT SPECIFICATIONS
Voltage Adjustment
Line Regulation
Load Regulation
Ripple & Noise
Current Limits
Typical
Typical
Typical
Typical
Typical
0.75V ~ 5.0V
0.3%
0.4%
30 mV
200%
PART NUMBERING SYSTEM
DNS
Product
Family
10
Input Voltage
S
Number of
Outputs
S - Single
0A0
Output
Voltage
0A0 -
Programmable
S
Package
Type
R - SIP
S - SMD
06
Output
Current
06 - 6A
P
On/Off
Logic
F
D
Option Code
D- Standard functions
DNS – 6A 04 - 2.8V~5.5V
DNM – 10A 10 – 8.3V~ 14V
DNL – 16A 12 - 10V~14V
N - Negative F- RoHS 6/6
P - Positive
(Lead Free)
MODEL LIST
Model Name
DNS10S0A0S06PFD
DNS10S0A0S06NFD
DNS10S0A0R06PFD
DNS10S0A0R06NFD
Package
SMD
SMD
SIP
SIP
Input Voltage
8.3V ~ 14Vdc
8.3V ~ 14Vdc
8.3V ~ 14Vdc
8.3V ~ 14Vdc
Output Voltage
0.75V ~ 5.0Vdc
0.75V ~ 5.0Vdc
0.75V ~ 5.0Vdc
0.75V ~ 5.0Vdc
Output
Current
6A
6A
6A
6A
On/Off
Logic
Positive
Negative
Positive
Negative
Efficiency
12Vin, 3.3Vout @ full load
89.5%
89.5%
89.5%
89.5%

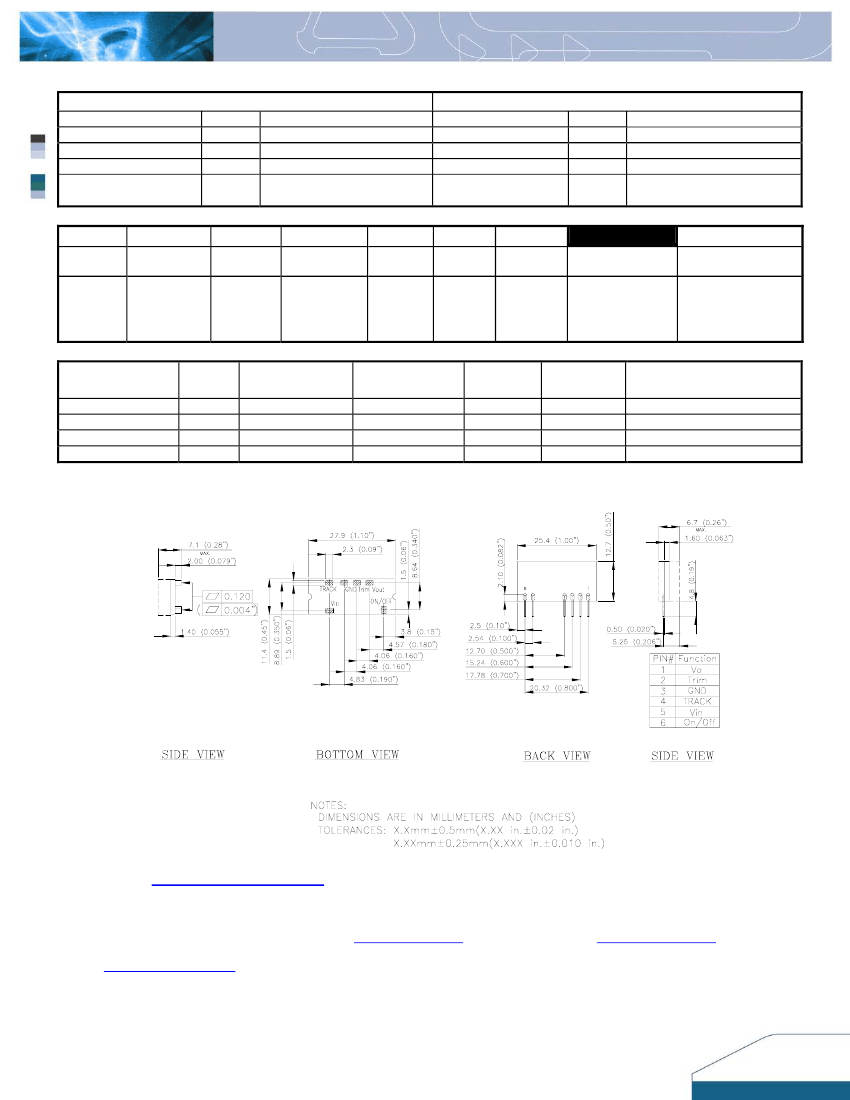

MECHANICAL DRAWING
SMD PACKAGE
SIP PACKAGE
CONTACT:
www.delta.com.tw/dcdc
USA:
Telephone:
East Coast: (888) 335 8201
West Coast: (888) 335 8208
Fax: (978) 656 3964
Email:
DCDC@delta-corp.com
Europe:
Telephone: +41 31 998 53 11
Fax: +41 31 998 53 53
Email:
DCDC@delta-es.tw
Asia & the rest of world:
Telephone: +886 3 4526107 x6220~6224
Fax: +886 3 4513485
Email:
DCDC@delta.com.tw
WARRANTY
Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any
patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
